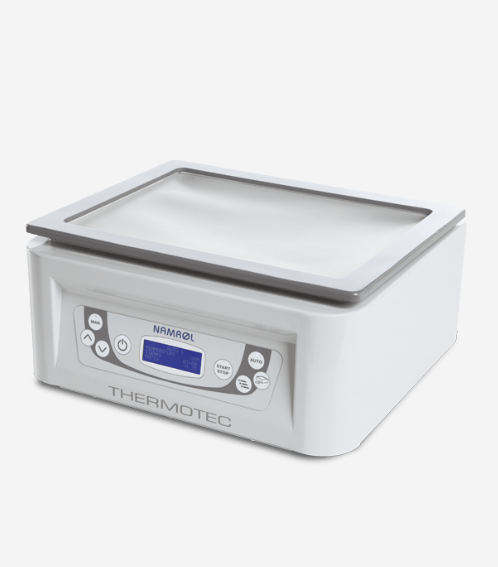

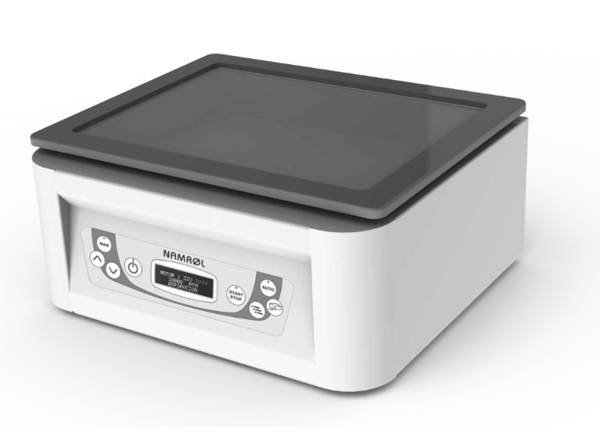

Vacuum Thermotec Digital: with pressing plate, heat plate, digital control panel with LCD display and two external vacuum outlets

The Thermotec Podiatry Vacuum combines a pressing plate, a heat plate, a digital control panel with LCD display and two external vacuum outlets in a single compact concept.

Strengths

- Maintenance-free high-performance vacuum pump. Optimal levels for perfect fusion and adaptation of any type of material. Simultaneous vacuum in the upper chamber and in the exterior outlets

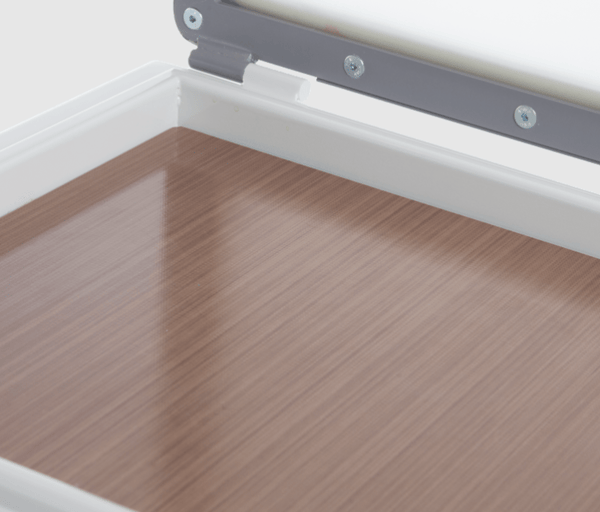

- Multipoint heating with a work surface of 360 x 270 mm: the heating plate has a high-quality non-stick coating and is made of aluminum, reinforced with titanium particles that absorb energy to the maximum, heats up quickly and distributes heat evenly. optimal for the entire work surface (360 x 270 mm).

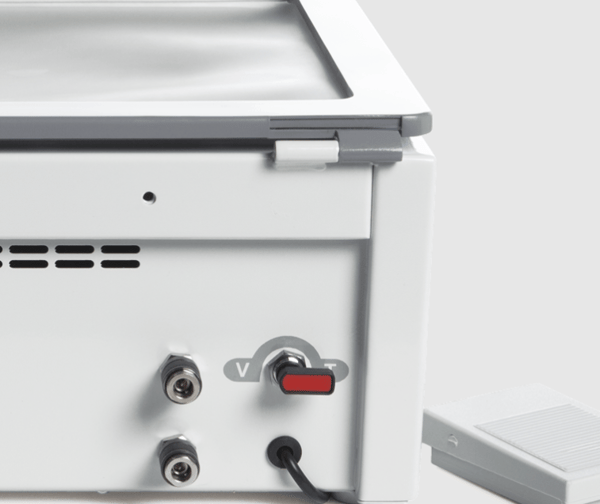

- Multiple connections : on the back, it includes two external vacuum outlets, which allow the orthosis to be molded directly on the patient's foot and the connection of vacuum pads and other accessories from the Namrol range. The pedal allows a controlled vacuum, leaving Hands free for more precise work.

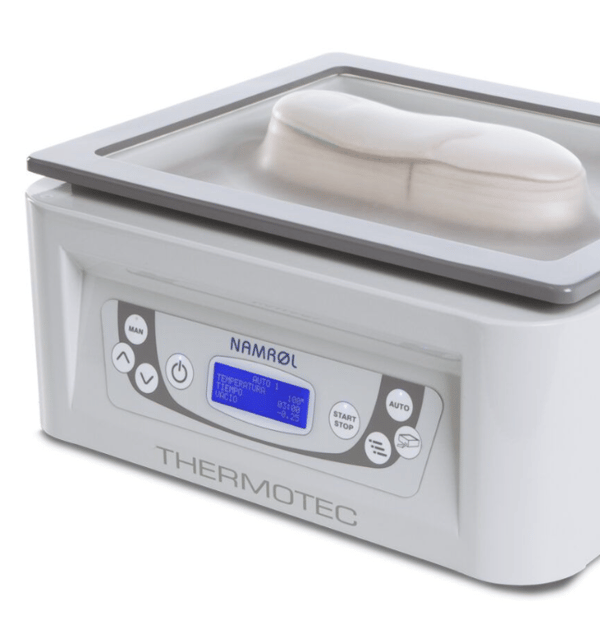

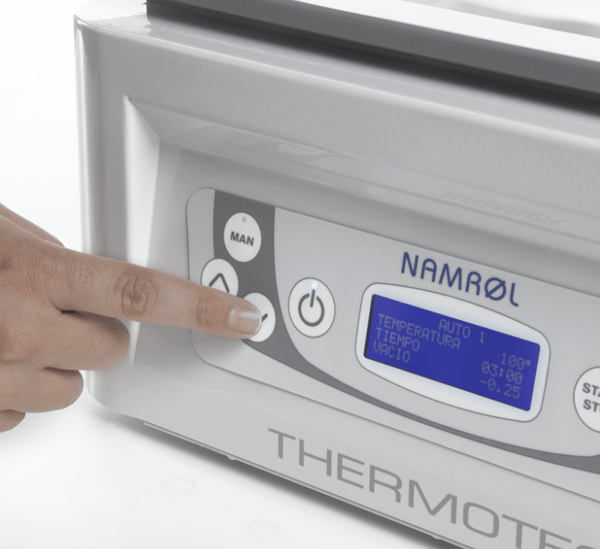

- The digital control panel with LCD screen allows full control of all functions such as: individual regulation of temperature, time and vacuum level, and adjustment of the three work programs it incorporates.

- Maximum flexibility : pressing plate with high-resistance silicone membrane and Unifix closure system without the need for anchoring. Large work surface accommodates templates up to 52 in size

- High-performance vacuum : Thermotec incorporates an innovative "Maxpress" system based on a high-performance, maintenance-free vacuum pump, which provides optimal vacuum levels for perfect fusion and adaptation of any type of material. In addition, it allows vacuum to be carried out simultaneously in the upper chamber and in the external outlets.

- Manual Program and 2 Programs memorizable by the user in time, temperature and vacuum power

- 2 outputs for connection. Live adaptation technique

- Pedal for greater vacuum control in live fitting technique

Technical characteristics

- Power supply: 230 Vac single phase /50Hz

- Operator voltage: 24 volts

- Machine absorption: 5.0 A

- Heat plate power: 1,100 watts

- Maximum working temperature: 140 degrees ºC

- Fusing pressure: 25 Kg/cm²

- Silicone temperature resistance: 220 degrees ºC

- Pump empty capacity: 3.5 m³/hour

- Machine weight: 15 Kg

- Working dimensions: 360mm x 270mm

- Equipment dimensions: 425mm x 360mm x 190mm H.
