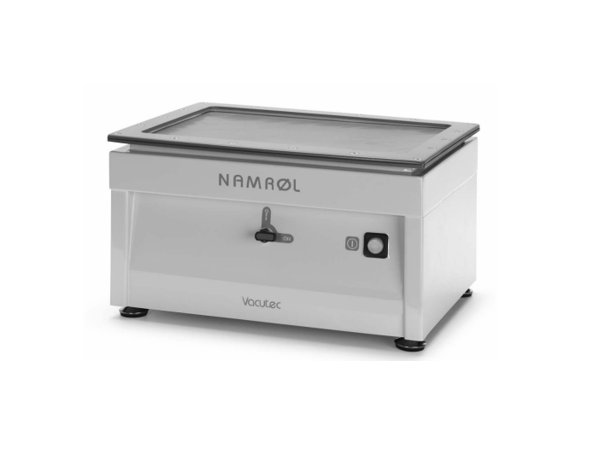

Vacuum Vacutec: combines a pressing plate and a high-performance vacuum pump

The Vacutec podiatry Vacuum is specially designed to work on positive mold. Vacutec combines a pressing plate and a high-performance vacuum pump. It is available in two versions with or without external vacuum outlets.

Strengths

- High-performance vacuum : Vacutectec incorporates an innovative "Maxpress" system based on a high-performance, maintenance-free vacuum pump, which provides optimal vacuum levels for perfect fusion and adaptation of any type of material.

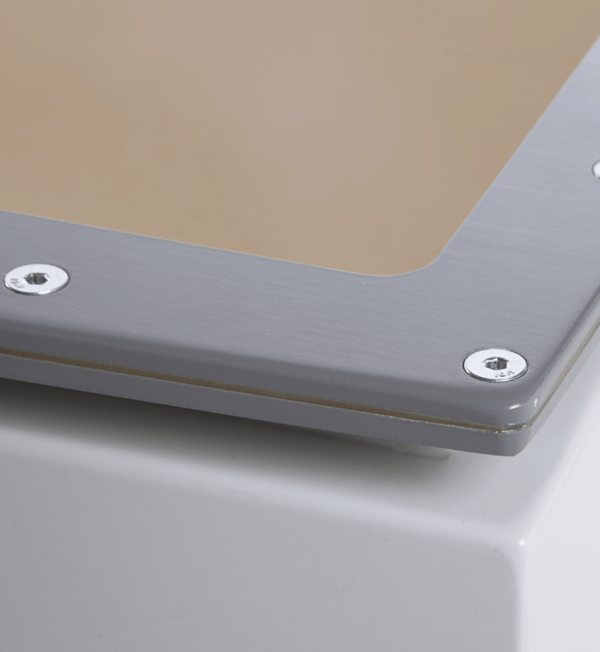

- Resistant and practical : Vacutec convinces with robust manufacturing and long life of its components. Quick and economical change of latex membranes in case of breakage.

- Convenience and functionality : Vacutec performs everyday tasks with amazing flexibility.

Technical characteristics

- Power supply: 230 V. AC. single-phase / 60Hz 1 pair 25 Kg/cm² 3.5 m³/hour 22 Kg 340mm x 240mm 400mm x 315mm x 220mm H. Single-phase / 60Hz power supply

- Machine absorption: 2.5 A

- Working capacity: 1 pair

- Fusing pressure: 25 Kg/cm²

- Pump empty capacity: 3.5 m³/hour

- Machine weight: 22 Kg

- Working dimensions: 340mm x 240mm

- Equipment dimensions: 400mm x 315mm x 220mm H.
