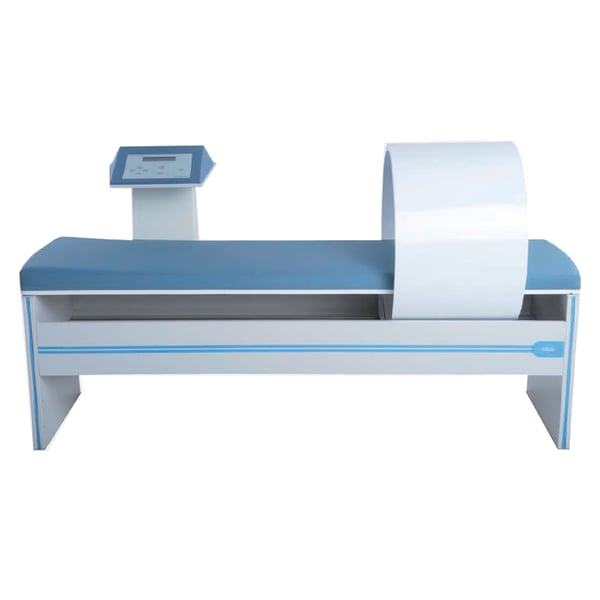

Varimag 4E magnetic therapy equipment: 4 independent outputs, automated stretcher and solenoid of 73 cm

Magnetic therapy equipment with built-in trolley equipped with four wheels, 2 of them with brake. Aluminum stretcher with automated solenoid movement with solenoid 73 cm in diameter.

The device has 4 completely independent channels, both in time, frequency, and magnetic intensity. The technology of the device Varimag 4E achieves that the movement of the solenoid is fully automated with the possibility of 99 different positions , suitable for the treatment of sweeps.

The equipment has programmed memories for each channel with pathologies. In addition, it also offers free memories for recording therapies and a treatment time of 1 to 99 minutes.

Technical characteristics:

- 4 totally independent channels, both in time, frequency and magnetic intensity.

- Fully automated solenoid movement with the possibility of 99 different positions.

- Magnetic intensity 180 Gaus peak and 100 effective Gaus.

- Provision of programmed memories for each channel, with pathologies.

- Arrangement of free memories to record for the user.

- Treatment time from 1 to 99 minutes.

- Continuous and pulsed magnetic field.

- Scheduled therapies without possibility of modification.

- Free memories for recording therapies, possibility of reprogramming as many times as desired.

Strengths:

As a consequence of the treatment with pulsating magnetic fields, the following biological effects are obtained:

Vascular effect:

- Vasodilatory action (as we have already indicated).

- Reduction of interstitial, lymphatic and blood viscosity.

- Improvement of the partial pressure of oxygen.

- Activation of circulation.

Trophic-cellular effect:

- Cicatricial processes.

- Acceleration of bone callus formation.

- Reactivation of the sodium-potassium pump (Na-K).

- Orientation of dipoles in the gate of the cell membrane.

- Re-establishment of the membrane polarization. Analgesic effect.

- Eliminating irritable substances from nerve endings.

- Clearly demonstrable, for its relaxing activity.

- Stimulates the ionic movement for the evacuation of liquids and waste substances.

Recommended treatments:

- Rheumatic processes.

- Periarticular rheumatism.

- Disorders of ossification.

- Traumatology.

- Peripheral vascular pathology.

- Sinusitis

- Migraines.

- Vertiginous syndromes secondary to disorders of the microcirculation.

Technical data:

- Network voltage: 220V.

- Intensity: 4 A.

- Frequency: 50 Hz.

- Dimensions of stretcher: 199 x 62 x 70 cm.

- Security type I type BF-CEI-601-1.

- Conformity: according to the Sanitary Products Directive (CE)
