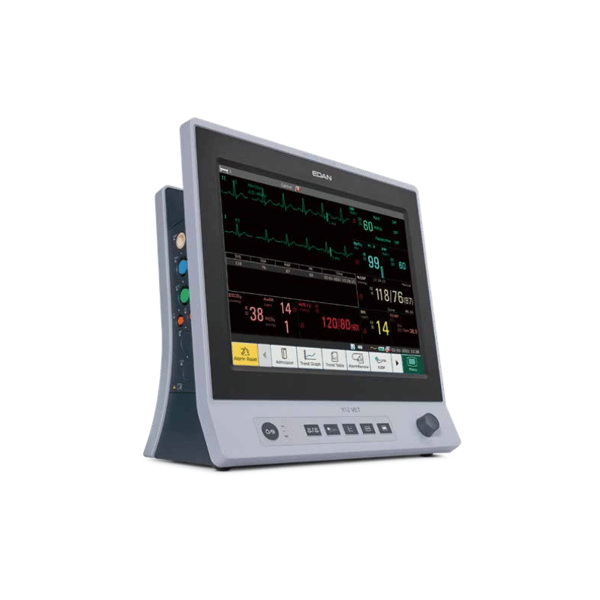

Veterinary Vital Signs Monitor X Series VET Ultra Slim Compact Design and Full Touch Screen Capability

The portable multi-parameter veterinary monitor is ultra-light, compact and has a full touch screen.

Featuring the ultra-slim compact design and full touchscreen capability, the X VET Series monitor provides an optimized operating experience for veterinary technicians. Together with
Clinically derived technologies and accessories, the X VET series veterinary monitor meets your core requirements in various veterinary patient scenarios.

(standard configuration: ECG 3-5/ Resp./ NIBP EDAN / SpO2 EDAN / 2-Temp./ Pulse).

Main strengths:

- TFT-LCD color display with a maximum of 11 simultaneous curves

- Protection against interference from electrosurgery and defibrillation

- Fanless design, electrosurgery interference-proof, with defibrillation protection and synchronization, arrhythmia analysis and ST segment

- Serial ports, USB for updates and VGA output (optional)

- Includes detachable 3-lead ECG cable and other standard accessories

- Optional: 6/12 ECG leads, 2-PI, CO2, touch screen and thermal printer

- Suitable for all types of animals

Technical Features:

All three models have the same features. The only difference is the size of the screen.

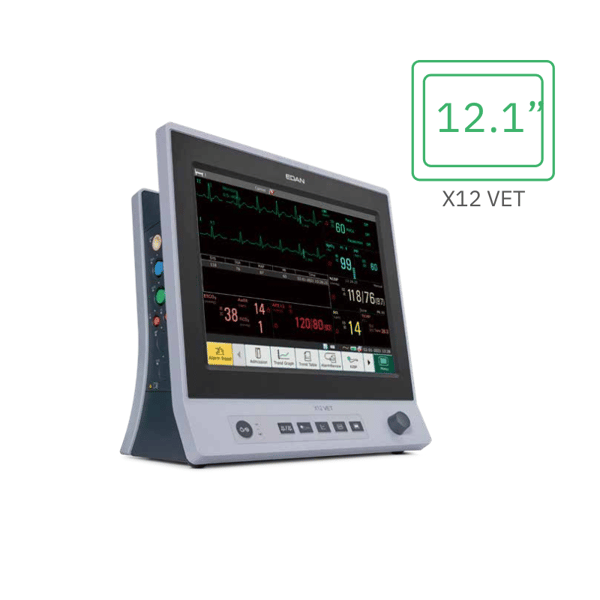

X12 VET
Portable multiparameter veterinary monitor (standard configuration: ECG 3-5/ Resp./ NIBP EDAN / SpO2 EDAN / 2-Temp./ Pulse). 12.1" color TFT-LCD screen with a maximum of 11 simultaneous curves.

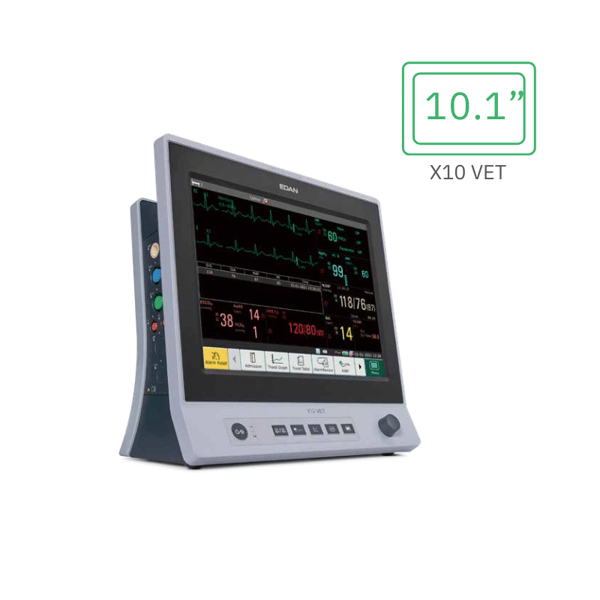

X10 VET
Portable multiparameter patient monitor, with the same features as the X12 VET, but with a 10.1" color TFT-LCD screen.

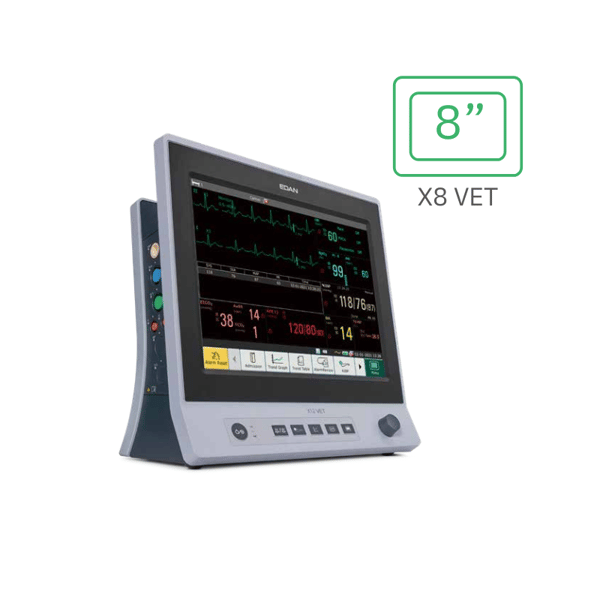

X8 VET
Portable multiparameter patient monitor, with the same features as the X12 VET, but with an 8" color TFT-LCD screen. DOES NOT SUPPORT PI MODULE

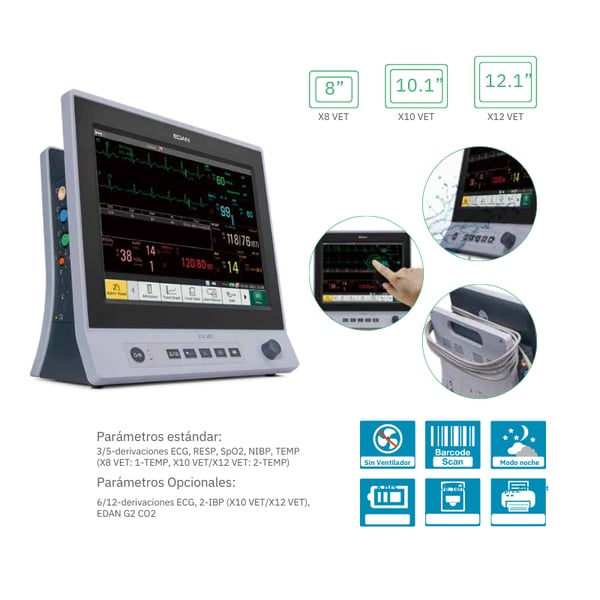

Standard parameters:
3/5-lead ECG, RESP, SpO2, NIBP, TEMP (X8 VET: 1-TEMP, X10 VET/X12 VET: 2-TEMP)
Optional parameters:
6/12-lead ECG, 2-IBP (X10 VET/X12 VET), EDAN G2 CO2

Each data contains:

- 1200 PANI

- 240 h Trend review

- 200 h Alarm review

- 48 h of waves

DIMENSIONS:
- Dimensions: 320mm (L) x 150mm (W) x 265mm (H)
- Weight: approx. 5kg

SCREEN:
- Color TFT LCD: 12.1” (iM8), 10.1” (iM8B)
- Resolution: 800x600 (iM8)
- 800x480 (iM8B)
- Traced Parameters: up to 8
- Curves displayed: up to 11
- Sweep speed: 6.25; 12.5; 25; 50mm/s
- Type of derivations: selectable 5/3 derivations
- Gain selection: Auto, x0.125; x0.25; x0.5; x1; x2; x4
- Sweep speed: 6.25; 12.5; 25; 50mm/s

ECG:
- ECG HR range:
- Adult: 15~300 bpm
- Pediatric/Neonate: 15~350 bpm
- Resolution: 1 bpm
- Accuracy: ±1 bpm or ±1% (whichever is greater)
- Filters:
- Diagnostic mode: 0.05~150 Hz
- Monitoring mode: 0.5~40 Hz
- Surgical mode: 1~20 Hz
- ST segment detection:
- Measurement range: -2.0 mV~2.0 mV
- Alarm range: -2.0 mV~2.0 mV

ANS:
- Method: Trans-thoracic impedance
- Operation mode: Auto/Manual
- Respiratory rate range:
- Adult: 0~120 rpm
- Neonate/Pediatric: 0~150 rpm
- Resolution: 1 rpm
- Apnea alarm: 10, 15, 20, 25, 30, 35, 40 s
- Bandwidth: 0.2-2.5 Hz (-3dB)
- Sweep speed: 6.25; 12.5; 25; 50 mm/s

SPO2:
- Measurement and alarm range:
- 0~100% (EDAN SpO2)
- Resolution: 1%;
- Accuracy: ±2% (70~100%, Adult/Pediatric)
- ±3% (70~100%, Neonate)
- HR measurement and alarm range:
- 25~300 bpm
- Resolution: 1 bpm
- Accuracy: 3 lpm

PANI:
- Method: Automatic oscillometric
- Operating modes: Manual/Automatic/Continuous
- Auto measurement in time interval:
- 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 240, 480 minutes
- Measurement units: mmHg/kPa
- Measurement types: Systolic, Diastolic, Average
- Pressure range:
- Adults:
- Systolic: 40~270 mmHg
- Diastolic: 10~215 mmHg
- Average: 20~235 mmHg
- Pediatric:
- Systolic: 40~200 mmHg
- Diastolic: 10~150 mmHg
- Average: 20~165 mmHg
- Newborns:
- Systolic: 40~135 mmHg
- Diastolic: 10~100 mmHg
- Average: 20~110 mmHg
- Resolution: 1 mmHg
- Accuracy:
- Average error Max: ±5 mmHg
- Standard deviation Max: 8 mmHg
- NIBP HR measurement range: 40~240 bpm
- Resolution: 1 bpm
- Accuracy: ±3 bpm or 3.5% (whichever is greater)

PI:
- Pressure measurement: ART, PA, CVP, RAP, LAP, ICP, P1, P2
- Measuring range: -50~300 mmHg
- Resolution: 1 mmHg
- Accuracy: ± 2% or ± 1 mmHg
- (The largest, without probe)
- Sensitivity: 5 μV/V/mmHg
- Impedance range: 300~3000Ω

TEMPERATURE:
- Measurement and alarm range: 0~50 ºC (32~122 ºF)
- Resolution: 0.1 ºC
- Accuracy: ±0.1 ºC (Without probe)
- Channel: Dual Channel. Provides T1; T2; ΔT

FEEDING:
- AC power: 100~240V AC, 50/60 Hz
- Battery: Rechargeable Li-ion battery 14.8V
