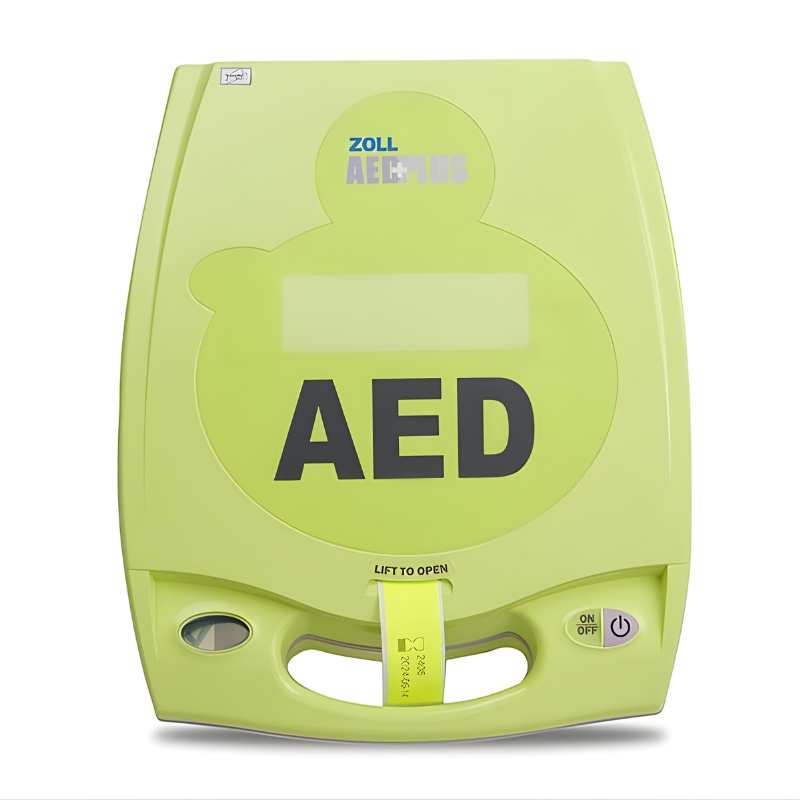

ZOLL AED Plus Defibrillator: Real CPR Help. CPR-D-pads Electrodes

The ZOLL AED Plus® is a semi-automatic external defibrillator (AED) designed to provide maximum support during cardiopulmonary resuscitation (CPR). It incorporates Real CPR Help®, a unique technology capable of measuring the depth and rate of chest compressions in real time thanks to the CPR-D-padz® electrodes and their integrated sensor. This system guides the rescuer with visual and auditory prompts, as well as an on-screen indicator bar.

Main features

Real CPR Help®

It measures the vertical displacement of each chest compression and provides real-time feedback.

Indicate messages such as PUSH HARDER or GOOD COMPRESSIONS (page 3 of the catalog).

Ensures compressions of at least 5 cm deep according to AHA 2010 guidelines.

CPR-D-padz® Electrodes

One-piece design for quick and correct placement.

Anatomically compatible with 99% of the population.

Useful life of 5 years (page 1 technical specifications).

They include a rescue kit (scissors, razor, gloves, mask, wet wipe).

Interactive screen and guide

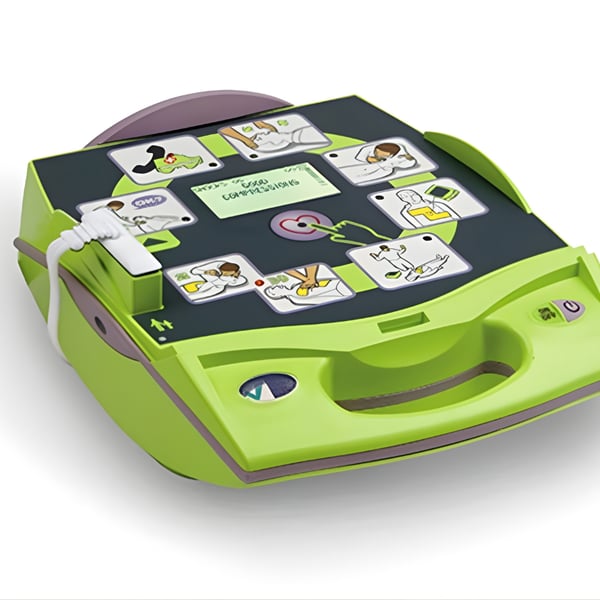

Backlit LCD screen with text synchronized to sound signals.

Visible depth bar to guide CPR (catalog p. 4).

Illuminated icons on rescue steps.

Economical maintenance

Electrodes and batteries with a useful life of 5 years, reducing operating costs (catalog page 6).

Type 123A Photo Flash lithium batteries (10 units), available in conventional stores.

Technical specifications:

Defibrillator

Waveform : Rectilinear biphasic.

Energy : Pre-programmed automatic selection (120 J, 150 J, 200 J).

Charging time: <10 s with new batteries.

Charge retention time : 30 s.

ECG Analysis : Evaluates patient impedance and determines if defibrillation is necessary.

Discharge rhythms : VF >100 µV, wide VT >150 bpm (adults) or >200 bpm (pediatrics).

Metronome RCP : 60–100 CPM.

Measured depth : 1.9 – 8.9 cm.

Automatic checks

Configurable verification every 1–7 days (default: 7).

Monthly self-test with full energy (200 J).

Review: battery, electrodes, ECG, charge/discharge circuits, hardware, software, CPR-D sensor.

Device:

Size: 13.3 × 24.1 × 29.2 cm.

Weight: 3.1 kg.

Power supply: 10 type 123A lithium batteries.

Classification: Class II, EN60601-1.

Protection rating: IP55 (water and dust resistance).

Usage environment:

Operating temperature: 0 °C to 50 °C.

Storage temperature: -30 °C to 60 °C.

Humidity: 10–95% non-condensing.

Altitude: -91 m to 4573 m.

Vibration and shock: MIL Std. 810F and IEC 68-2-27 certifications.

CPR-D-padz® Electrodes:

Shelf life: 5 years.

Conductive gel: Polymer hydrogel.

Conductive element: Tin.

Cable length: 1.2 m.

Dimensions of the sternal and apical electrode: approx. 15.5 × 12.7–14.1 cm.

Regulations: ANSI/AAMI/ISO DF-39-1993.

Included accessories:

Rescue kit:

- Protective mask

- Scissors

- Razor

- Gloves

- Wet wipe

CPR-D-padz Electrode

User manual

Cover that functions as a passive airway support (catalog p. 8).

Key advantages

The only AED on the market with true compression depth feedback.

Simplified electrode placement, even for untrained personnel.

Very low maintenance cost due to long lifespan of consumables.

It fully complies with the 2010 AHA guidelines for high-quality CPR.
