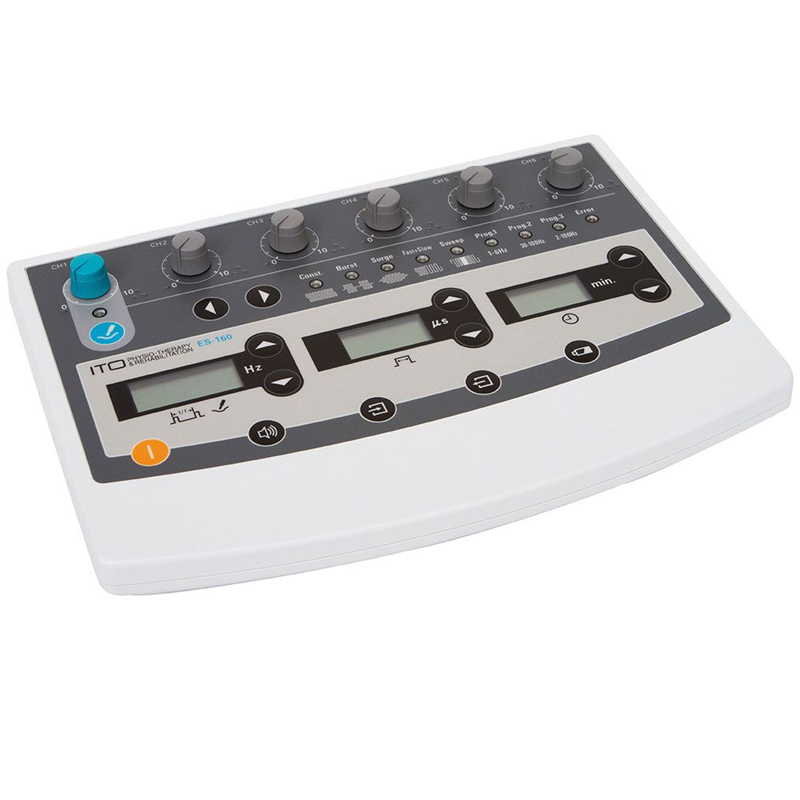

Acupuncture electrostimulator ES-160 Ryodoraku (six outputs)

The ES-160 Ryodoraku acupuncture electrostimulator is a state-of-the-art device that allows simultaneous stimulation with ten acupuncture needles, provides eight different stimulation modes and has the possibility of magnetotherapy stimulation.

The ES-160 equipment manages to take acupuncture electrostimulation models to a new dimension thanks to its cutting-edge technology. It offers various forms and preselected stimulation programs to carry out treatments that previously could not even be treated with similar devices, due to their limited stimulation modes.

Strengths:

-Ryodoraku

- 6 outputs

- Works with electrodes and needles.

- It has point detector.

- It has 5 types of wave.

- It works on batteries.

- With CE0123 Marking

- Origin: Japan

Applications:

- Search for points and detection of trigger points.

- Six totally independent channels for electrostimulation with needles.

- Possibility of stimulation with magnetotherapy.

Technical characteristics:

- Allows simultaneous stimulation with ten acupuncture needles.

- Provides eight different modes of stimulation.

- Saves the parameters of previous treatments and incorporates sixteen freely programmable memory settings.

- Allows the user to locate and stimulate acupuncture points.

- Incorporates a wide range of security functions.

- Performance and security features:

- Self-test.

- Reset to zero.

- Power cut in case of sudden increases in supply.

- Automatic disconnection of the unit, if it is not used in 5 minutes.

- Detection of remaining battery life.

- Connection / disconnection of the sound.

- Notice of completion of treatment.

Technical specifications:

- Power supply: four (4) alkaline batteries (not included).

- Voltage: 6v

- Number of channels: 6 independently controllable.

- Type of pulsation: symmetric pulse, biphase.

- Amplitude: pencil-type electrode stimulation: peaks 0-48 ma.

- Electroacupuncture: high: 0-32 ma +/- 25%. low: 0-16 ma +/- 25% (peaks).

- Phase duration: 50-400 µs., adjustable.

- Timer: 0-60 minutes.

- Random program 1.: 1-6 hz., pre-selected program.

- Random program 2.: 30-100 hz., pre-selected program.

- Random program 3.: 2-100 hz., pre-selected program.

- LCD indicators: frequency, phase duration, timer, battery status, sensitivity level (search), data memory.

- Frequency: from 1 to 500 HZ.

- Dimensions: 239 x 174 x 41 mm.

- Approximate weight: 1.2 kg.

Accessories:

- 1 search / stimulation probe.

- 6 cables for electrodes.

- 12 exclusive tweezers (6 black and 6 red).

Warranty:

- Items from this manufacturer (except accessories) have a 1-year warranty

- The accessories that are included with the products or that can be purchased separately, such as cables, applicators, bulbs, batteries, power adapters, heads, etc. are not covered by the warranty.

- Expendable materials such as electrodes, conductive gel, etc. are not guaranteed.

* The guarantees will be applied as long as the device and its accessories are not damaged by misuse or negligence of the client: blows, broken displays, overvoltage, etc.
