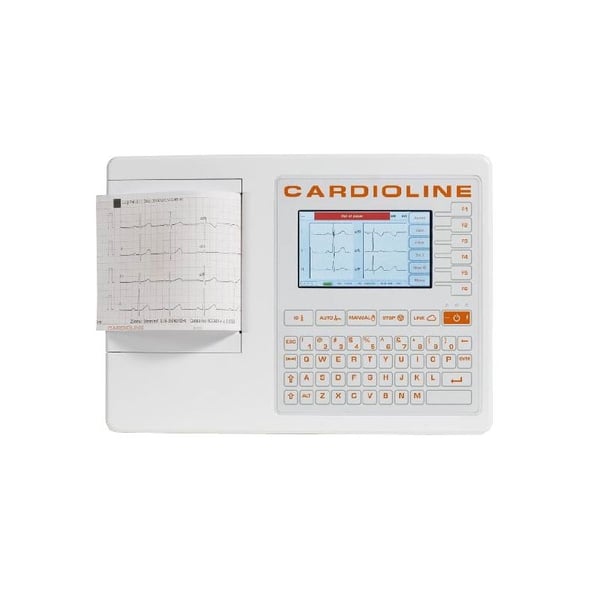

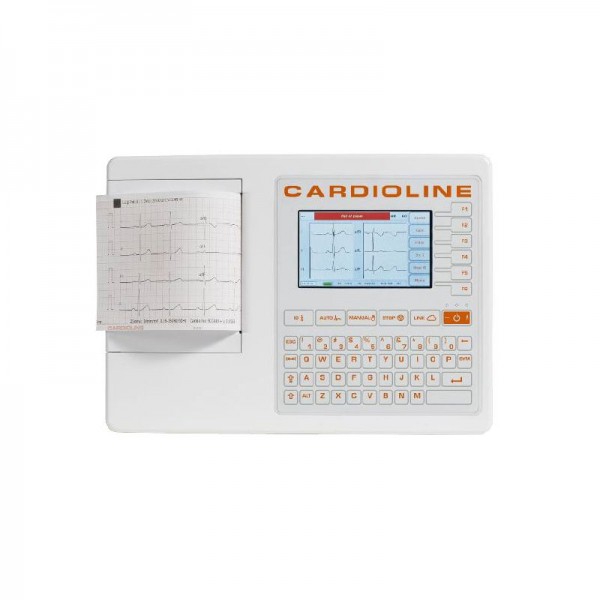

Cardioline ECG 100s electrocardiograph: an advanced 12-lead electrocardiograph

Electrocardiograph with 12 Leads and 3/6 Channels Cardioline ECG 100s

ECG Cardioline 100s 12-lead electrocardiograph, 3-6 channels

4.3" Color LCD screen with ECG waveform display in real time

Mechanical keyboard with alphanumeric keys and dedicated function keys

Internal memory of 100 ECGs

Capable of saving ECG to external memory

Internal rechargeable battery

The Cardioline 100S ECG Electrocardiograph is an advanced 12-lead electrocardiograph , capable of monitoring, acquiring, printing (on 100mm Z-fold paper 3+1, 3+3, 6 channels) and saving in memory the ECG exams of adult patients, children and neonates.

The Cardioline 100S ECG extracts critical ECG parameters and offers interpretation when equipped with the Glasgow interpretation software available as an option.

This interpretation algorithm takes into account specific criteria in terms of gender, age and race, ensuring a high level of accuracy. The interpretation must be reviewed and validated by a physician to complete the medical diagnosis prior to archiving and exporting the ECG.

The equipment can be completed with a specific transport cart.

The Cardioline 100S ECG operates either stand-alone or connected to a computer or USB network.

Strengths:

- The ECG100S offers a comprehensive and intuitive user interface.

- Dedicated buttons provide instant access to main functions .

- The primary operations (ID, manual or automatic ECG) and the speed of the configuration menu allows you to preset the user storage mode.

- The large screen allows you to preview the ECG for safe and fast acquisition.

Technical characteristics:

- ECG leads: 12 leads (I, II, III, aVR-LF, V1-6)

- CMRR: >110dB

- DC input impedance: 100 MΩ

- A/D converter: 24 bit, 32 kHz

- Sampling rate: 500 samples/second/channel

- A/D conversion: 20 bits

- Resolution: > 1uV/LSB

- Bandwidth: 0.05 – 150 Hz

- Pacemaker recognition: Hardware and software recognition with digital filter.

- Filters: Completely digital diagnostic high pass filter; 50/60 Hz digital adaptive filter; Digital low pass filter at 25 and 40 Hz (for printing and display)

- Defibrillator protection: AAMI/IEC standards

- Front-end performance: ANSI/AAMI IEC 60601-2-25:2011

- Safety: EN 60601-1 device with internal power supply - Class I with external AC/DC power supply ANSI/AAMI ES1 CE1936

- ECG storage: Internal memory 100 ecg, expansion 1000 ecg (optional)

- Screen (display): 4.3” color LCD screen, backlit, visualization of the ECG waveform in real time.

- Thermal printer: 8 dot/mm; 108mm Z-fold 100x150mm

- Automatic printing: Standard or Cabrera; 3, 3+1, 3+3, 6 channels, Patient data, global ECG measurements, optional interpretation plug-in (Glasgow University – Prof. MacFarlane), adult, pediatric, STEACS.

- Keyboard: Mechanical keyboard with alphanumeric keys and function keys.

- Connectivity: USB device, LAN (optional)

- Patient cable: Standard 15D, 10-electrodes

- Data export: SCP (standard). PDF

- Power supply: AC medical power supply (100-240 VAC 50/60 Hz).; Internal rechargeable battery (NiMH).

- Internal battery: Recharge time: 4 hours up to 85% of the total charge; Autonomy: more than 500 ECGs

- Dimensions: 285x204x65mm

- Weight: 1.8 Kg with battery

Basic endowment:

- User manual

- 10-lead IEC patient cable

- Set of 10 Adapter for tabs

- Tab electrodes 100 pcs.

- Zfold ecg paper package, 100x150mm x 180 sheets

- ECG rule

- ECG 100s Dust Cover

- AC/DC power supply

- 10A mains cable

Optional gadgets:

- You can implement ECG100S with different options that are sold separately:

- Glasgow interpretation option: ECG100S detects critical examination parameters and ECG with the optional interpretation algorithm, developed at the University of Glasgow, offers the complete resting ECG image, including full pediatric interpretation and recognition of acute myocardial infarction with ST segment elevation, ideal for emergency applications. This interpretation algorithm takes into account patient-specific criteria such as gender, age, gender, and race, and ensures a high standard and accuracy. This interpretation must then be reviewed and validated by the specialist who will complete the report before saving or exporting it. ECG100S is able to operate stand-alone or connected to a computer with a USB cable.

- Software cubeecg: Software cubeecg Software for the computerized management of the ECG at rest examination. For detailed information, see the product software (Cod. 4200125). For the operation of the Cubeecg software, the Cubelink software is necessary, which allows the connection between the ECG and the software. For those who already have the Cubeecg software it is necessary to buy only the Cubelink; for those who, however, do not already have the software, the cubeecg + Cubelink package must be purchased.

What are Electrocardiographs?

ECGS offer complete diagnostic ECG acquisition without compromise, meeting or exceeding the most stringent standards used in clinical applications and interpretations.

The interpretation program, developed by the University of Glasgow, offers advanced analysis algorithms for resting ECG interpretation, including full pediatric interpretation and identification of acute myocardial infarction, the ideal tool for any emergency.

It can be easily connected to a simple computing environment and provides ECG and PDF file transfer services simply by using a USB connection (no need to set up advanced computing environments .)

Warranty:

- 24 month warranty
