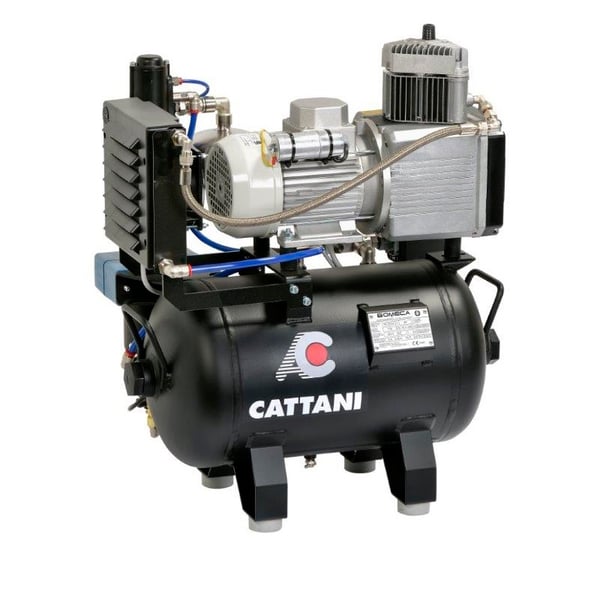

Cattani AC 100 dental compressor. For dental equipment with air dryer and oil-free

Cattani's AC 100 model is a 1-cylinder, oil-free horizontal compressor, equipped with 4 filters to ensure high-quality, pure dry compressed air.

Horizontal tank of 30 liters. The AC 100 model with Cattani air dryer is recommended for use with a dental unit. For better air conservation and compressors, the tanks are lined internally with food resin.

The AC100 compressor has a sound level of 70dB. If soundproofing is desired, it is recommended to complement it with the soundproofing hood, which reduces the level to 51dB.

Oil-free air compressor:

Oil-free, equipped with a dryer and a series of filters, it is able to supply dry, high quality and pure air. In 40 years of research we have shown that the oil-free air compressor can be more reliable than a compressor that works in an oil bath.

Protocol maintenance of Cattani devices:

Technical characteristics:

- Single-phase motor 50 Hz - 0.55 kW - 3.8 A.

- 30 liter air tank

- Flow effective at 5 bar :, 67.5 l / min

- Sound level: 70 dB (A)

- Weight: 47 kg

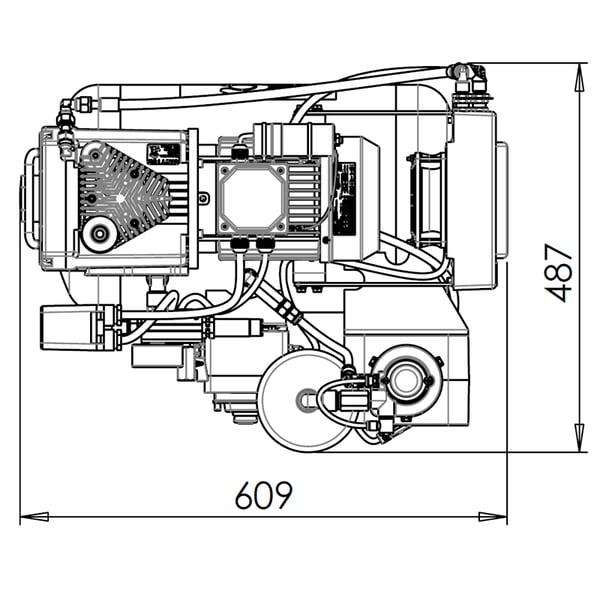

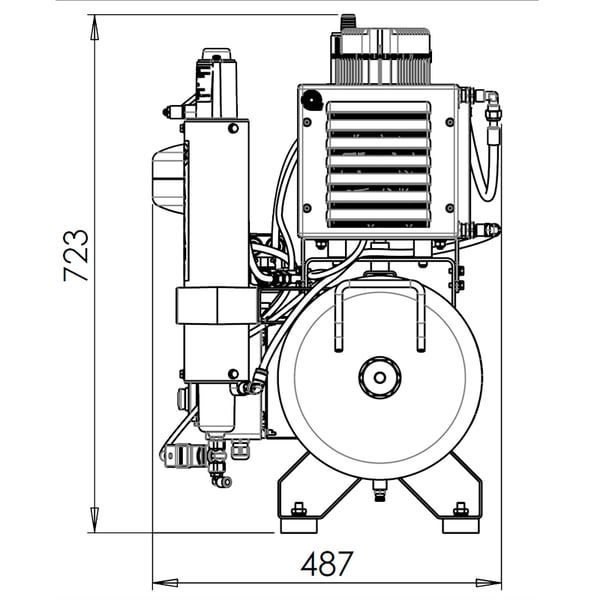

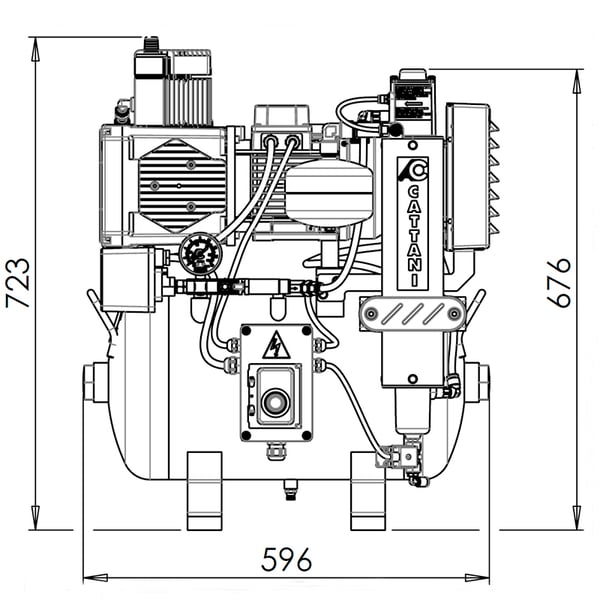

- Dimensions: L = 620mm; P = 460mm; H = 720mm
