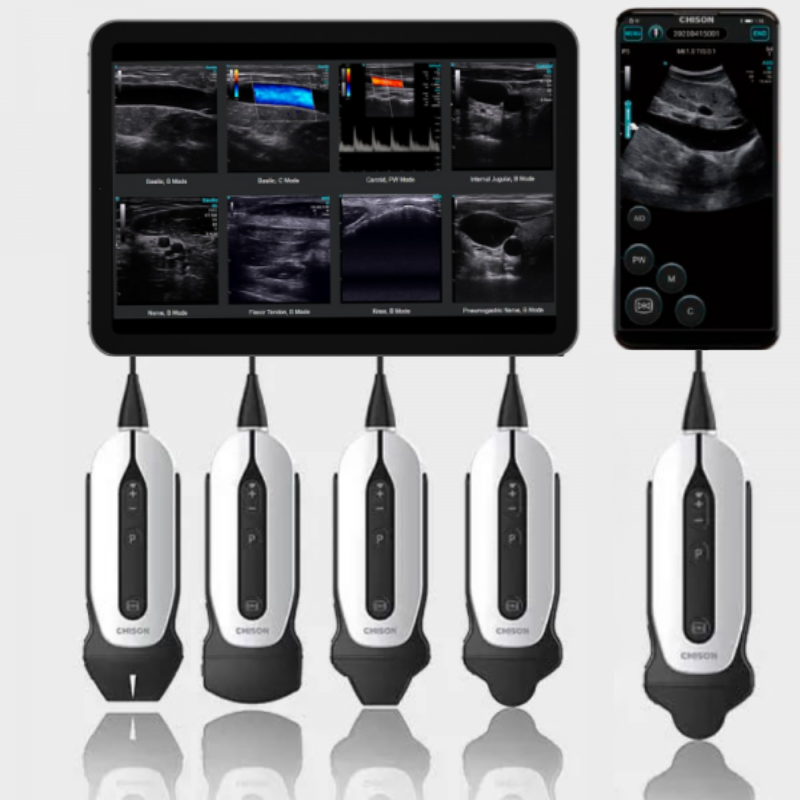

Chison SonoEye Portable Ultrasound System: P3 phased array probe, SONOEYE P5 convex probe and SONOEYE P6 micro convex probe:



Fisaude is the exclusive distributor of the Chison SonoEye ultra-portable ultrasound scanner.

The lightest handheld ultrasound scanner with the best features on the market today!





- Highly compact design but with incredible performance

- Lighter than a mobile phone

- Low energy consumption

- High image power

- Versatile, comfortable and very easy to use

Experience unparalleled definition and a lightweight design with our most popular linear ultrasound probe, SonoEye

Capture high-definition images of surface structures, including vascular, nerve, musculoskeletal, and small parts, with ease using linear probes. Effortlessly explore detailed images of cardiac function and motion with the phased array probe. Additionally, the convex and microconvex probes are ideal for abdominal, adult, and pediatric exams, as well as obstetrics and gynecology, offering versatility and exceptional image quality.

Designed to perform point-of-care ultrasound (POCUS) , that is, ultrasound to diagnose or perform procedures directly at the bedside where the patient is, instead of moving them to the ultrasound machine, whether in a modern hospital, an ambulance, or a remote village.

Its intuitive interface and efficient workflow make it the best choice.



SONOEYE P1 Linear Probe – 9 MHz and 30mm

Frequency range and presets for linear probe P1:

- Frequency range: -
- Depth: -
- Preset for Sonoeye P1: (Carotid, thyroid, MSK, subcutaneous fat, basilic, IV, breast, vertebral, cervical nerve, superior external nerve, LEV, lung, appendix, superficial MSK, plantar fascia, shoulder, deep MSK, Phantom)

Target audience for probe P1:

MSK Physiotherapy, MSK Podiatry, Primary Care, Vascular Access, Plastic Surgery, Pain Management, Etc.



SONOEYE P3 phased array probe – 2.5 MHz

Frequency range and presets for P3 phased array probe

- SONOEYE P3 linear probe: 2.5 mhz

- Frequency range: -
- Depth: -
- Preset for Sonoeye P3: (Cardiac, Pulmonary, Emergency Medicine, Critical Care, Primary Care, etc…)

Target audience for P3 probe:

Primary care, Emergency medicine, Cardiac, Critical care, Other, etc…



SONOEYE P5 convex probe – 3.5 MHz

Frequency range and presets for P5 convex probe:

- Frequency range: 3 MHz / 4 MHz / 5 MHz
- Depth: 4 to 20cm
- Preset for Sonoeye P5: (ABD, Kidney, OB, GIN, Lung, Lumbar Plexus, Bladder, Difficult ABD, Intrapartum, Phantom)

Target audience for P5 probe:

ABD, OB, GYN, Emergency Medicine, Critical Care, Primary Care, etc.



SONOEYE P6 micro convex probe – 6 MHz

Frequency range and presets for P6 micro convex probe:

- Frequency range: -
- Depth: -
- Preset for Sonoeye P6: (Pediatric, Abdomen, Cardiac, EM, etc.)

Target audience for P6 probe:

Pediatric, Abdomen, Cardiac, EM, etc.

Overview of the SONOEYE probe



Strengths:

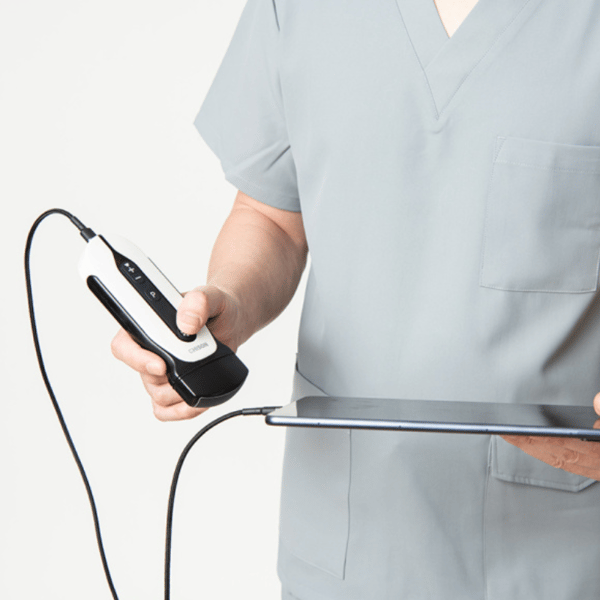

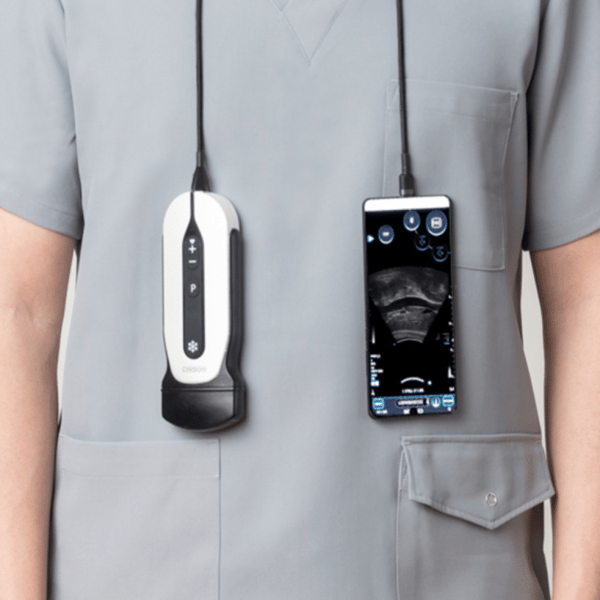

Type-C cable connection to tablet or smartphone. (Check device compatibility with ultrasound probe. iOS and Android)

It is the lightest ultra-portable ultrasound scanner on the market, weighing only 120 grams.

Four programmable buttons on the probe allow you to manage basic settings with just one hand. No need to touch the screen.

Powered on and ready for use in a few seconds.

Sterilizable and easily cleanable. Submersible to 1 meter for 30 minutes. (Waterproof IP67, supports immersive disinfection)

You can set up different users for the privacy of your patients.

You can open patient records and save their scans and reports for easy re-viewing.

Excellent resolution and image quality.

Automatic image freeze after seconds of inactivity for longer battery and probe life

The probe's power source is the tablet's lithium battery, which makes it lighter and prevents the probe from overheating.

Ability to project the tablet's image to an external screen via chrone cast

Configurable in 7 languages

Download the CHISON APP at the following link: Chison App

You can view all the operating manual videos here.

​

​

SONOEYE SOFTWARE MODES:

- B-mode , or two-dimensional mode or 2D mode: Image on a two-axis plane, in grayscale according to the echogenicity or faintness of the tissues.

- Doppler modes:

- Continuous Motion Doppler (CPA): Qualitatively establishes the presence of motion in an image, but only uses a color scale from red to yellow/white. It does not allow for the evaluation of the direction or speed of the flow, but it is capable of detecting slower flows than color Doppler mode.

- Continuous spectral Doppler (CPA + PW) : It is used for measuring much higher velocities than pulsed Doppler.

- Pulsed Doppler (CPD):

- Color Doppler (C): On a two-dimensional image, it assigns a color from a predefined scale to the observed flow according to its direction and speed. It allows for a qualitative evaluation of motion.

- Power color Doppler (CPD) or angio Doppler: Qualitatively establishes the presence of movement in an image, but only uses one color. It does not allow for the evaluation of the direction or speed of the flow, but it is capable of detecting flows at lower speeds than color Doppler mode.

- Pulsed spectral Doppler (C+PW): Generates a graph that represents the flow velocity at a specific point in the two-dimensional image in relation to time. Heart rate.



- M-mode or motion mode: It is used to create the image of moving structures and converts them into waves that appear continuously through a vertical axis

- Double screen : B + B (2B) mode, or B + C mode

SONOEYE SOFTWARE FEATURES:

2D steer, SonoCompare

Auto EF

Auto HR

Auto IMT

HIPAA

Intelligent Doppler

Needle guide software

Professional lung software

PW AutoTrace

QR Scan

Real-Time IMT

Remote Service

SonoBinding

SonoBladder

SonoColor

SonoNeedle

SonoRemote

SuperNeedle

Trapezoid

Reverse from right to left and from top to bottom

Manual focus.

Overall profit.

Sectoral profit (TGC)

Freeze image

AIO function (Automatic Image Optimization)

Manual image optimization : Overall gain, sector gain, dynamic range (20-290), 2D gray map, chroma, 2D steer, persistence, line density, and compound

Manual measurement

Automatic measurement and calculation by medical specialty (general, vessel, small parts, urology, abdominal, OB, gynecology, pediatrics, cardiac, intrapartum)

Manual and suggested annotations

midline

Patient file management

Easy View : To view all the scans performed on the current patient on one screen

Patient reports or summaries

Dimensions:

Weight: 120g (probe only)

Dimensions: 5 x 10 x 1.5 cm

Base staffing:

1 x Chison SonoEye Portable Ultrasound Probe

1 x Carrying Case

Warranty:

The device comes with a 2-year warranty.
