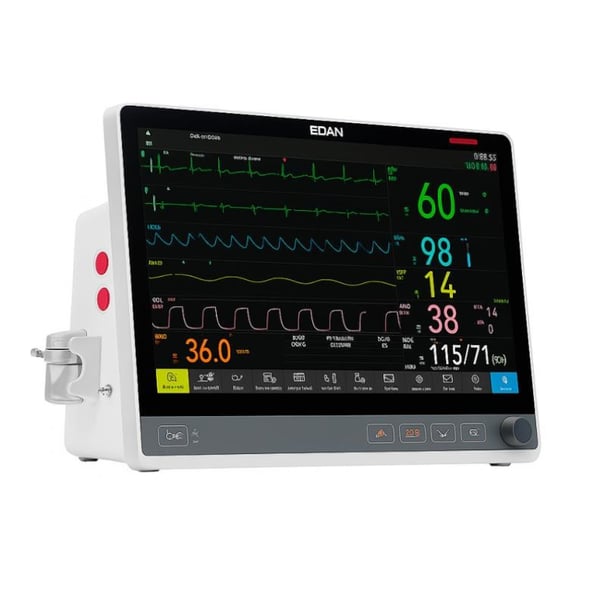

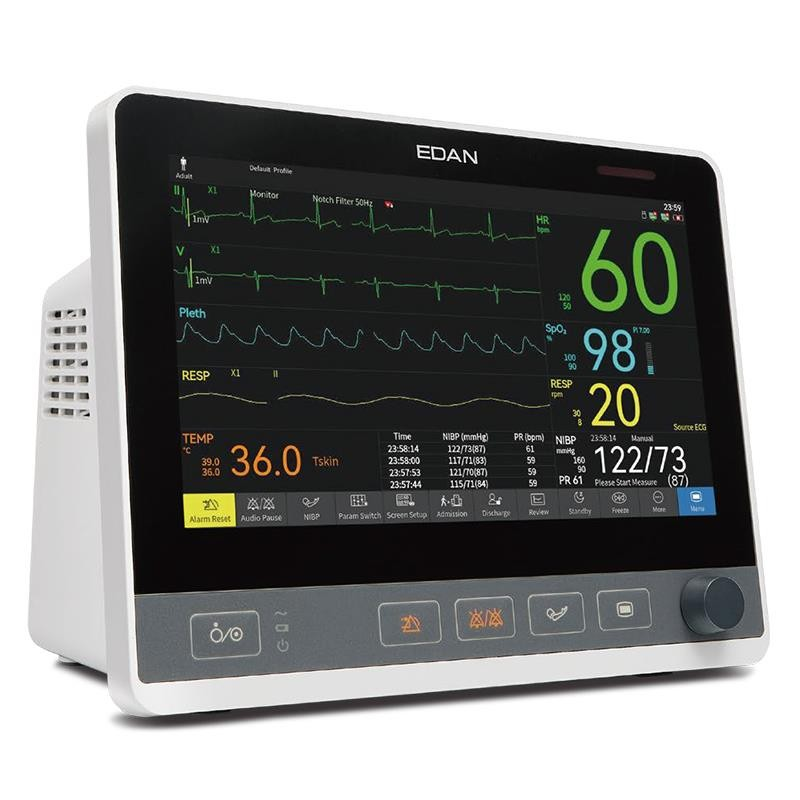

CX10, CX12 and CX15 multiparameter monitors for comprehensive patient monitoring in clinical settings

The CX series of multiparameter monitors (models CX10, CX12, and CX15) is designed for comprehensive patient monitoring in clinical settings, from outpatient clinics and inpatient wards to intensive care units. This range offers different screen sizes (10.1", 13.3", and 15.6") to suit various needs, while maintaining a common platform that ensures accuracy, reliability, and ease of use.

The equipment allows for continuous measurement of essential vital parameters, with expansion options for advanced monitoring, hospital connectivity, and real-time clinical analysis tools.

Strengths

- Scalable range with three screen sizes according to clinical need
- Complete monitoring of basic and advanced parameters
- Intuitive interface via rotary button and touch option
- High expansion capacity (CO2, IBP, CO, 12-lead ECG)
- Advanced visualization: trends, OxyCRG, and large font display
- Integration with hospital monitoring centers
- Modern connectivity: Wi-Fi, HDMI and multifunction interface
- Robust design adaptable to multiple clinical environments

Technical specifications

Screen:

- CX10: 10.1”
- CX12: 13.3”
- CX15: 15.6”

Standard parameters:

- ECG: 3/5 leads
- RESP (breathing)
- NIBP (non-invasive pressure)
- SpO2 (oxygen saturation)
- Temperature (1-TEMP or 2-TEMP depending on the model)
- PR (pulse rate)
- Arrhythmia detection

Display functions:

- OxyCRG Screen
- Graphical and tabular trends
- Large font mode

Optional configurations:

- Touch screen
- 6/12 lead ECG
- 2 PPIs (invasive pressure)
- CO2 (EDAN G2 Sidestream)
- CO (cardiac output)
- Integrated thermal printer
- Wi-Fi
- HDMI
- Multifunction interface
- Two-way communication with monitoring center
