DiaSpect™ Starter Pack - Portable Hemoglobin Analyzer, 100 Cuvettes and 100 Unistik 21G Lancets

The Diaspect Tm Hemoglobin Analysis System is designed for the quantitative determination of total hemoglobin in human blood , using capillary, arterial or venous samples in single-use microcuvettes specific for Diaspect Tm.

The DiaSpect Tm system provides instant, quantitative results of the total hemoglobin concentration found in samples obtained from capillaries, arteries, or veins. The system is based on the photometric measurement of hemoglobin in unaltered whole blood and consists of a photometer and microcuvettes. It provides accurate and reliable results with a coefficient of variation (CV) of less than 1%.

Strengths:

- 'Always-on' technology. Ready to use immediately.

- Automatic self-check between each measurement

- Symbol-based visualization

- Factory calibrated with permanent calibration

- Practical and portable

- Hemoglobin results in approximately one second

- Capillary, venous or arterial blood (anticoagulant with EDTA and heparin can be used)

- Compact in size and weighs only 180g

- Maintenance-free. Automatic self-diagnosis.

- Built-in rechargeable battery (40 days or 10,000 tests of continuous use)

Technical characteristics:

- Operating temperature: +10°C to +35°C

- Operating humidity: Not specified, condensation in the analyzer should be avoided

- Storage temperature: 0°C to +50°C (-30°C to +70°C during transport, 24°C maximum)

- Sample volume: <10 μl

- Display range: 0.3-25.5 g/dl (0.3-255 g/l, 0.2-15.9 mmol/l)

- Measurement time: 1-2 s

- Battery: Built-in 3.6V rechargeable lithium-ion batteries

- Safety: Controlled according to IEC 60950 / IEC 61010

- Equipment input voltage: 5V, 100mA (PC) / 300mA (mains)

- Power supply for input voltage: 4.5VA, 100-240V AC, 50-60 Hz

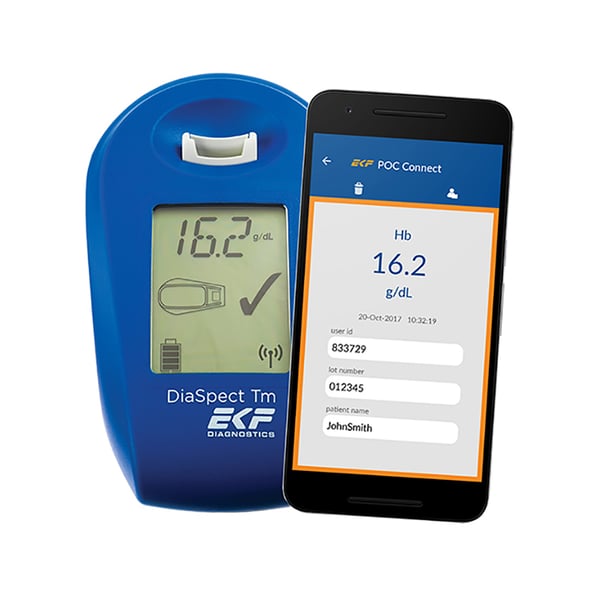

- Data interface: USB 2.0, Bluetooth Smart (optional)

- Protection class: IP 21

- Power supply: 100mA via USB host, 350mA via USB power supply

- Operating time: Several weeks for a fully charged battery in continuous use

- Analyzer dimensions: L=15 cm, W=9 cm, H=4 cm

- Analyzer weight: 185 g

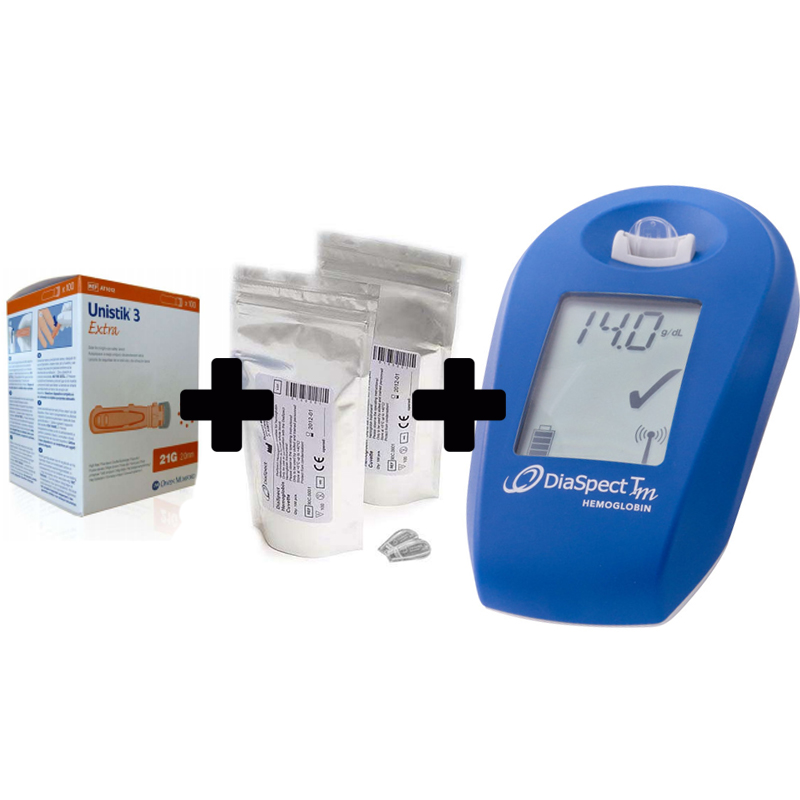

Base equipment:

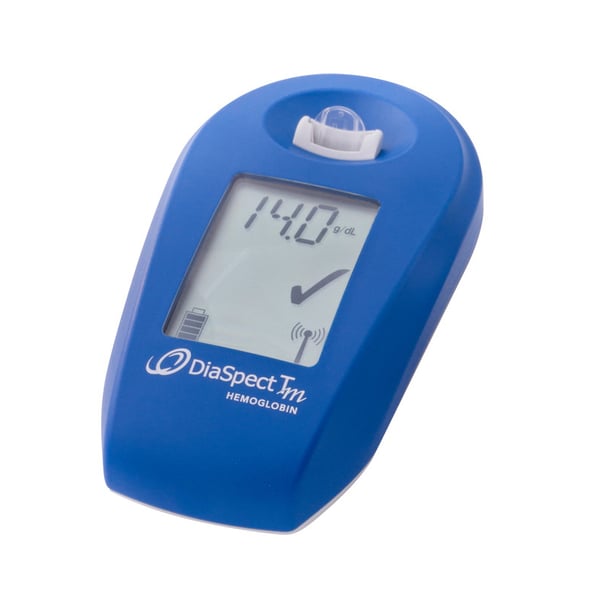

- 1 DiaSpect TM Portable Hemoglobin Analyzer

- 1 Bag of 100 cuvettes for the DiaSpect TM

- 1 Box of 100 Unistik 21G lancets: Single-use and retractable.
