EDAN iM50 Automatic Multiparameter Patient Monitor: With thermal printer + 12-lead option

Dear Customer.
By refueling service conditions of this article out only under specific request. So if you are interested in purchasing we will be happy to assist you in the mail tienda@fisaude.com.
Sorry for the inconvenience but our desire is simply to provide the best service can inform you of deadlines, prices and conditions of the product in the most reliable and up to date as possible.

Reference: EDIM50I 12 derivaciones

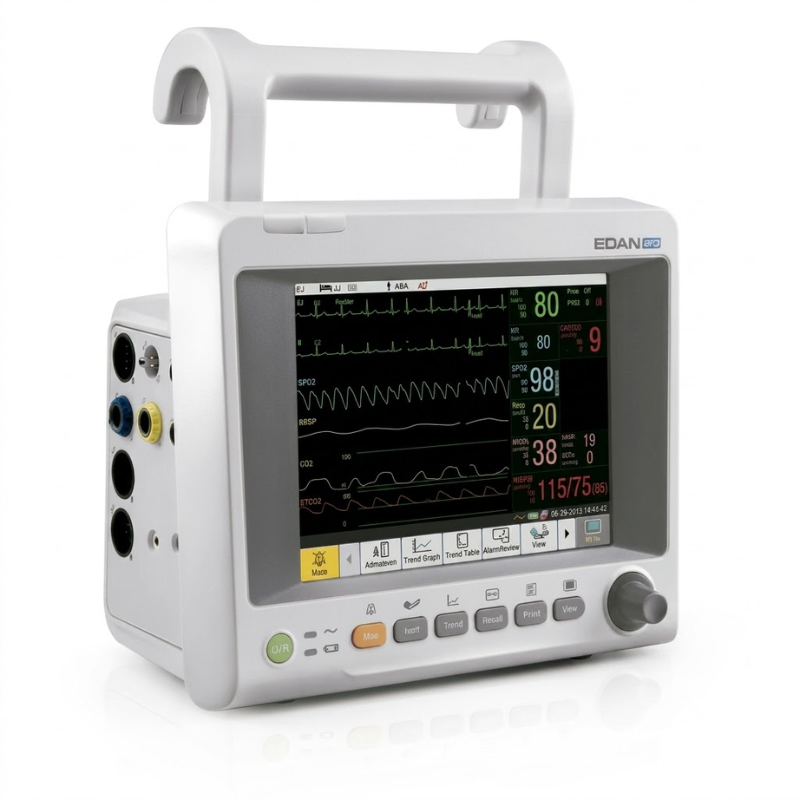

The iM50 is a portable, multiparameter patient monitor with an 8.4” color TFT screen capable of displaying up to 11 waveforms . It is designed for clinical monitoring in various healthcare settings and features advanced functions such as pacemaker detection , electrosurgical unit interference resistance , defibrillation protection and synchronization , as well as arrhythmia and ST-segment analysis . It also incorporates OxyCRG for respiratory assessment in neonates and a nurse call function with two-way communication to the MFM-CMS central station .

Strengths

- Portable and versatile format , suitable for different clinical areas.
- 8.4” TFT screen with display of up to 11 curves , which facilitates clear and complete patient monitoring.
- Advanced clinical functions : pacemaker detection, arrhythmia and ST segment analysis, and defibrillation protection.
- Prepared for neonatology , thanks to the OxyCRG function for respiratory assessment.
- Large storage and upgrade capacity , via 2 USB ports and SD card slot .
- Good connectivity , with VGA and analog output .
- Expandable configuration , with multiple optional features and different mounting systems.

Technical Specification

- Type of equipment : portable multiparameter patient monitor.
- Screen : 8.4-inch color TFT.
- Display capacity : up to 11 curves.
- Key clinical functions : pacemaker detection, electrosurgical interference immunity, defibrillation protection and synchronization, arrhythmia and ST segment analysis.
- Neonatal function : OxyCRG available for respiratory assessment in neonates.
- Communication : nurse call function and two-way communication with MFM-CMS central station.
- Storage and expansion : 2 USB ports and SD slot.
- Outputs : VGA and analog.
- Standard configuration :
ECG 3/5 leads
PANI EDAN
SpO2 EDAN
Breathing
2 temperatures
Pulse
Rechargeable Li-ion battery
- Optional :
SpO2 Nellcor
2-PI
CO2 Respironics
Quick Temperature
Touch screen
Thermal printer
12V DC Input
Barcode scanner
WLAN Kit
Carrying bag
- Mounting options : wall mount, rail, tripod or bed anchor.
