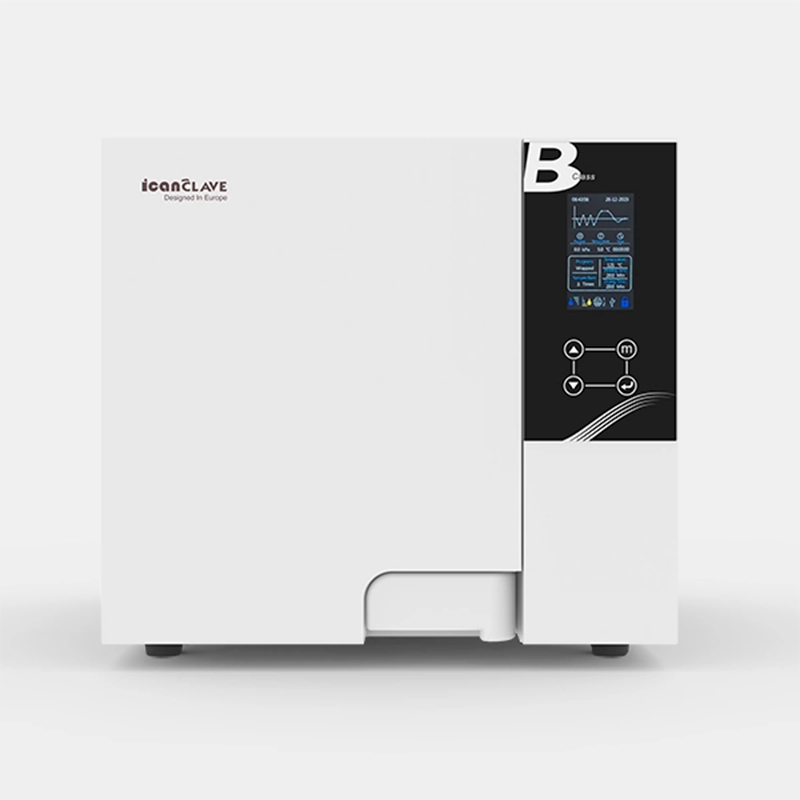

iCanClave D Pro Series: Class B Autoclave with Touchscreen, Wi-Fi, Triple Vacuum, and Smart Sterilization

The iCanClave Series D Pro Class B autoclave is an advanced and safe sterilization solution for dental, medical and veterinary clinics looking for safety, efficiency and advanced technology . Thanks to its 4.3" LCD touchscreen, triple fractional vacuum (Class B), automatic programming, 10,000 cycle memory, and WiFi and USB connectivity, it offers a modern, fast and fully traceable user experience. Available in 8L, 12L, 18L and 23L , it complies with EN 13060 Class B regulations and can be used to sterilize all types of loads: solid, porous and hollow type A.

Strengths:

- 4.3" color LCD display with backlit touch buttons: intuitive operation and clear process reading

- Delayed start function: allows you to schedule cycles for a specific date and time

- Internal memory with capacity for more than 10,000 cycles: ideal for traceability

- Export reports via USB and WiFi connectivity: for management and updates

- Automatic descaling cycle: prolongs the life of the equipment

- Universal sterilization: suitable for porous, hollow type A and solid loads

- Instant steam generator and powerful vacuum pump: faster and more efficient

- Complete safety system: overpressure, overheating protection and smart door closing

- Water quality sensor: ensures the effectiveness of each cycle

- Complies with EN 13060 Class B regulations: approved for professional use in Europe

Technical characteristics:

- Type: Class B autoclave (fractional vacuum)

- Display: 4.3" color LCD with backlit touch buttons

- Connectivity: USB and WiFi

- Internal memory: up to 10,000 cycles

- Programming: configurable delayed start

- Descaling cycle: compatible with liquid and powder descalers

- Available capacities: 8L, 12L, 18L and 23L

- Trays: 4 included in all models

- Drying system: automatic by vacuum pump

- Instant steam generator

- Water quality sensor

- Security system: mechanical and electronic (pressure, temperature, door control)

- Software upgradeable via USB/WiFi

- Thermal printer: optional

- Regulation: EN 13060 Class B (CE certification)

- Power supply: 220V / 50Hz

Maintenance:

Autoclaves are very delicate products and require responsible, precise, and professional handling. Here are some tips to ensure your device lasts as long as possible and operates optimally:

- Changing the door seal. When we notice that the rubber seal inside the device is worn, it's time to replace it. The process is simple but requires careful handling. We need to adjust the circular rubber seal inside the autoclave drum by marking the four cardinal points (North, South, East, and West) and then tighten it with our finger.

- Door adjustment. Between the plastic casing and the metal casing is the screw that adjusts the autoclave door. Once the door is in place, we insert the key to adjust the door to best suit our needs.

- Changing the filters. The filters are located at the bottom of the chamber, so we must remove the metal trays inside. Once we find the filter, all we have to do is replace it with a better one.

- Autoclave cleaning cycle. Approximately every 100 operations, the autoclave will require internal cleaning. This internal cleaning process is automated. Simply press a button to complete the operation.

- Remember, for the autoclave to function properly, you must use double-distilled water. To avoid this problem, Fisaude offers this distiller at an irresistible price.

Base equipment:

- Sterilizer

- USB

- 2 Instrument trays

- Tray support

- Handle for removing the trays

- Door adjustment tool

- 2 Drain hoses

- Door seal

- Instruction manual

Certificates and regulations:

- Directive 97/23/EC on pressure equipment

- Directive 93/42/EEC on class II-a medical devices

- EN13060 regulation relating to small steam sterilizers

- EN61010-1 safety regulations for laboratory equipment

- EN 61010-2-040 safety regulations for medical equipment sterilizers

- EN 61326-1 electromagnetic compatibility standard

Warranty:

The device has a 1-year warranty

IMPORTANT!

The price includes shipping costs to the Peninsula. Following the current policy of the transport companies, delivery will be made to the street door. If you need to go up or down a floor, please contact us to request a porter service from the transport company. This service incurs an additional charge.
