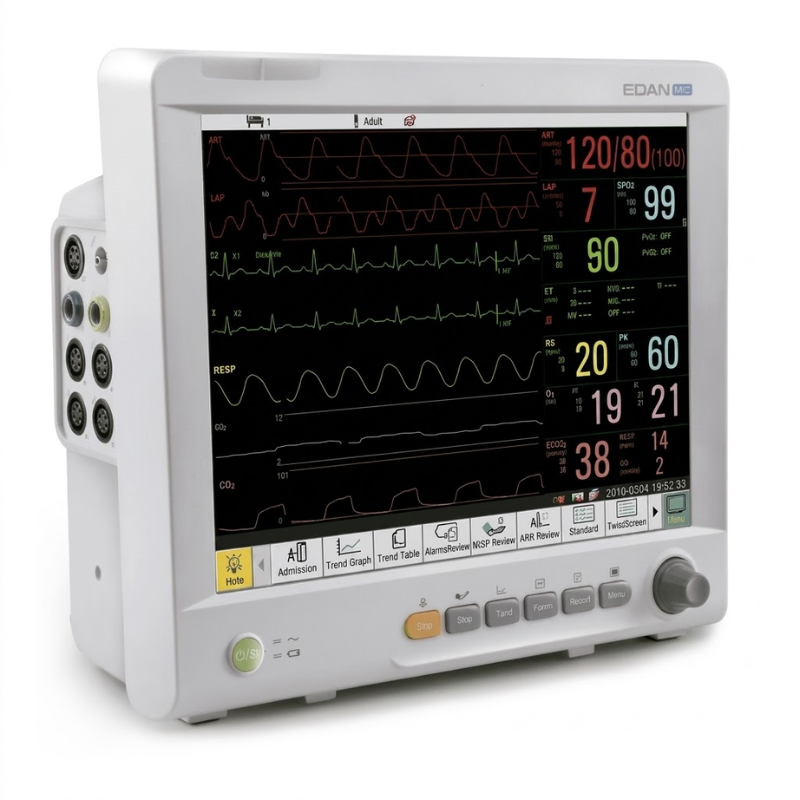

iM80 15” Touchscreen Patient Monitor for continuous and advanced patient monitoring in critical environments

The iM80 is a high-end multiparameter monitor designed for continuous and advanced patient monitoring in critical environments such as ICUs, operating rooms, and intensive care units. It features a 15-inch TFT touchscreen , enabling comprehensive, detailed, and configurable real-time display of multiple parameters and waveforms. It is designed to offer maximum clinical accuracy, high integration capabilities, and high operational performance , adapting to adult, pediatric, and neonatal patients.

Strengths

- Large format touch screen (15”) , ideal for intensive monitoring with multiple simultaneous curves.
- High clinical performance , designed for critical environments and continuous use.
- Advanced multiparameter monitoring , with great expansion capacity.
- Advanced clinical analysis , including arrhythmias and ST segment.
- High connectivity , compatible with central hospital systems.
- Modular configuration , adaptable to different clinical needs.
- Intuitive and customizable interface , which improves the efficiency of healthcare staff.
- Robust and reliable design , prepared for demanding environments.

Technical specifications

- Type of equipment : high-end multiparameter patient monitor.
- Screen : 15-inch color TFT, touchscreen.
- Standard parameters :
ECG (3/5 leads)
SpO2
NIBP (non-invasive blood pressure)
Breathing
Temperature (2 channels)
Pulse rate
- Clinical functions :
Arrhythmia analysis
ST Segment Analysis
Pacemaker detection
Protection against defibrillation
- Display capability : multiple simultaneous curves (configurable).
- Storage : internal memory for trends, events and patient data.
- Connectivity :
Integration with hospital monitoring center
USB ports
Video outputs
Wired network and wireless (WLAN) options
- Optional :
Capnography (CO₂)
Invasive pressure (IP)
Cardiac output (as configured)
Advanced SpO2 (Nellcor or other technologies)
Integrated thermal printer
Additional modules according to clinical needs
- Power supply : integrated rechargeable battery + mains electricity connection.
