miniSTIM perineal electrostimulator: for urinary incontinence, overactive bladder and pelvic pain

The miniSTIM perineal electrostimulator is a personal therapeutic unit designed to stimulate the pelvic floor muscles , especially the pubococcygeus and puborectalis muscles . It is indicated for the prevention and treatment of stress, urge, and mixed urinary incontinence , as well as for cases of overactive bladder, nocturia, mild prolapse, and perineal pain .

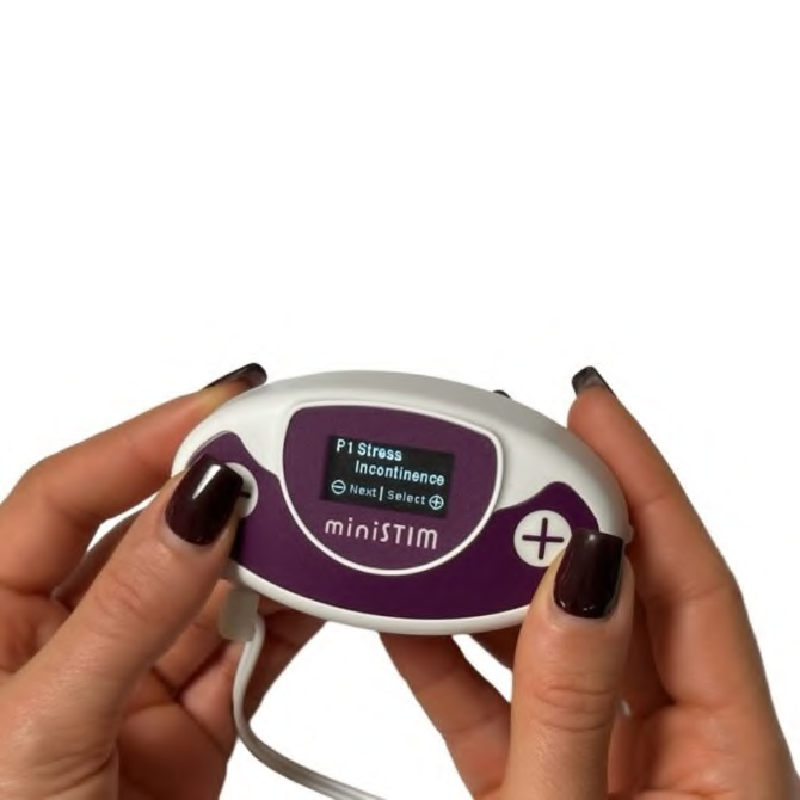

Thanks to its five predefined programs , miniSTIM allows you to easily select the most appropriate treatment using a perineal probe or surface electrodes. Its high-visibility OLED screen and two-button operation make it comfortable and intuitive to use at home. The device features adjustable intensities from 1 to 99 mA, automatic electrode contact control, and different pulse types adapted to each therapeutic program.

Strengths:

- Specific electrostimulation of the perineal muscles

- Indicated for stress, urge and mixed incontinence

- Program for overactive bladder and nocturia

- Specific treatment for pelvic and perineal pain

- 5 predefined therapeutic programs

- Use via vaginal probe or transcutaneous electrodes

- Adjustable intensity from 1 to 99 mA

- Bright and easy-to-read OLED screen

- Intuitive operation using only two buttons

- Automatic control of electrode connection

- Compact, lightweight and portable design

- Approximate autonomy of up to 20 hours or 40 sessions

- Class IIa medical device with CE marking

Predefined programs:

- P1 - Stress incontinence: stimulation using a perineal probe

- P2 - Urge incontinence: treatment using a perineal catheter

- P3 - Mixed incontinence: combined program using perineal probe

- P4 - Pelvic pain: specific stimulation using a perineal probe

- P5 - Overactive bladder and nocturia: transcutaneous stimulation of the posterior tibial nerve using surface electrodes

Technical specifications:

- Power supply: 4.5V via 3 AAA LR03 alkaline batteries

- Autonomy: up to 20 hours or approximately 40 sessions

- Number of channels: 1 output channel

- Programs: 5 predefined programs

- Output current: from 1 to 99 mA, adjustable in 1 mA steps

- Frequency: from 1 to 100 Hz, depending on the selected program

- Resting frequency: 3 to 10 Hz

- Pulse width: 50 to 300 µs

- Session duration: between 15 and 50 minutes

- Working time: from 3 to 60 seconds or continuous operation

- Rest time: 1 to 7 seconds

- Waveform: symmetrical biphasic impulses or alternating biphasic impulses

- Energy: approximately 2 mJ per pair of pulses

- Applied part: perineal probe or surface electrodes

- Electrode control: automatic interruption of intensity when contact is insufficient

- Display: High-visibility OLED

- Dimensions: 90 x 50 x 30 mm

- Weight: approximately 90 g, including batteries

- Protection: IP22

- CE Marking: CE0051 in accordance with European Regulation 2017/745 MDR

- Manufacturing certifications: ISO 9001 and ISO 13485

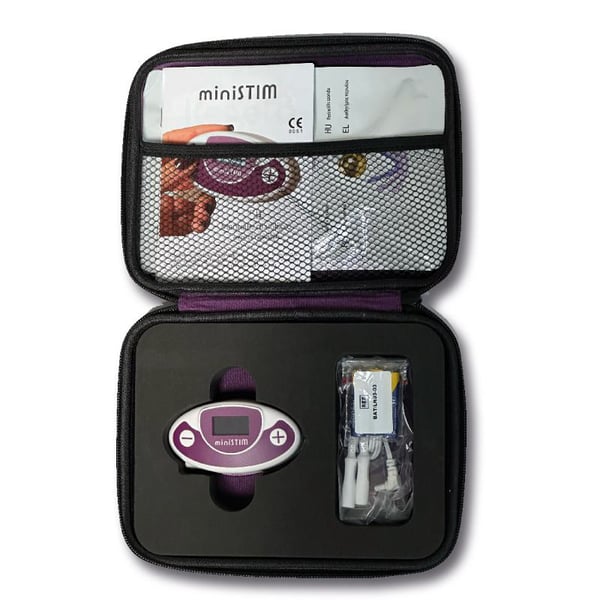

Base staffing:

- 1 miniSTIM electrostimulator

- 1 Perisphera vaginal probe - L

- 4 reusable electrodes of 50 × 50 mm

- 1 cable to connect the vaginal probe

- 1 cable to connect the surface electrodes

- 3 AAA alkaline batteries

- 1 storage bag

- 1 user guide

- 1 quick start guide
