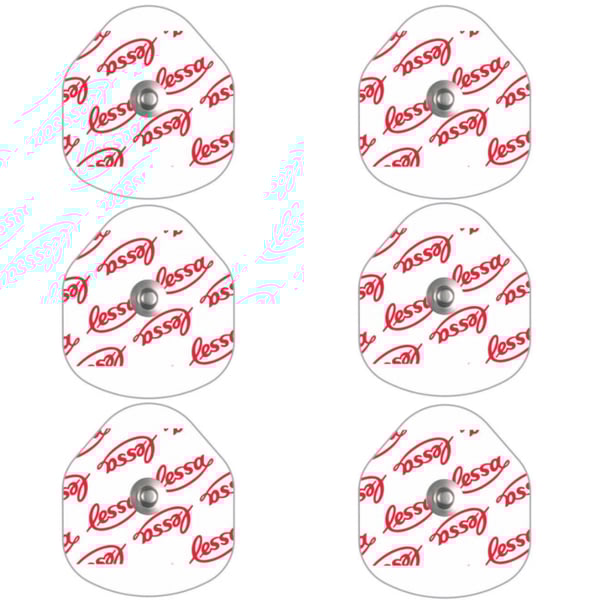

Pack of 600 pre-frozen electrodes with foam support for ECG 40 x 36 mm (20 sachets of 30 units)

The product features improved non-sensitizing acrylic copolymer coated foam. Provides a comfortable, soft, and conformable electrode. This disposable, non-irritating electrode meets all parametric tests per ANSI / AAMI EC12: 2000 standard.

The product is designed to be used in a resting type procedure. For example: resting ECG / monitoring and echocardiogram procedures. Meets RoHs regulations.

Strengths:

- The foam support protects the sensor and the gel from cleaning and surgical products.

- The solid gel offers good adhesion even on skins that have not been properly prepared and allows high-quality registrations with minimal adverse reactions.

Technical characteristics:

- Connector: Stainless steel clasp

- Label: PET foil

- Support: Foam

- Strong Adhesive: Medical Grade

- Sensor: (Ag / AgCl)

- Gel: Solid gel

Electrical values:

- DC-Offset Voltage (DCO) [mV] 0.12 ≤ 100

- AC-Impedance at 10 Hertz [Ω] 60 ≤ 2000

- Recovery curve [mV / sec] 0.0 ± 1

- AC-Impedance after SDR [Ω] 46 ≤ 2000

Normative:

- CLASSIFICATION (MDD ART. 9) Class I

- CLASSIFICATION (CFR 21 870.2360.) Class II
