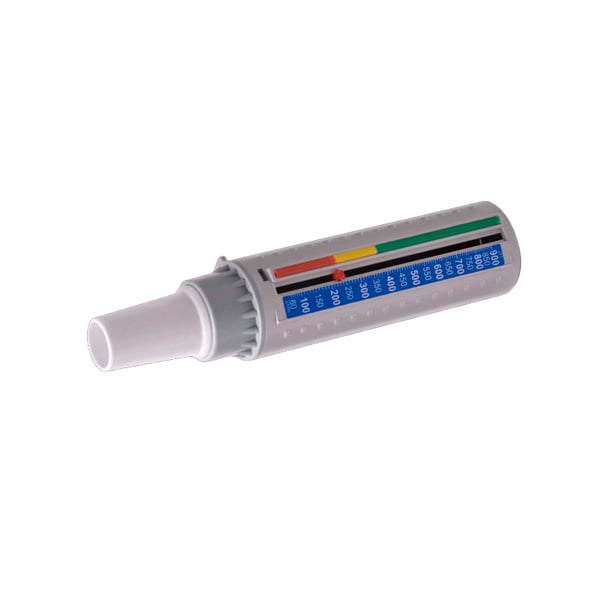

Pinnacle Respiratory Flow Meter: Adult and Pediatric Use

The Pinnacle expiratory flow meter measures the intensity of the airflow through the airways when exhaling as quickly and vigorously as possible . Peak flow readings are highest when patients are well and lowest when the airway is obstructed. From changes in recorded values, patients and physicians can determine lung function, severity of asthma symptoms, and treatment options.

Pinnacle incorporates a traffic light, a simple patient self-management tool . The medical staff will establish the different areas for each patient. This equipment has been individually verified and calibrated according to the fit verification and procedure.

Technical characteristics:

- Range: 60-900 l/min. (EN ISO 23747:2017).

- Scale increase: 10 l/min.

- Accuracy: ≤ +/- 5% or <10l/min.

- Calibration: 100% (single).

- Repeatability: ≤ +/- 2%

- Maximum Flow Resistance: 0.30 kPa / l/s (at 550 l/min).

base endowment:

- 1 reusable mouthpiece

- 1 Pack of zoning strips

- 1 user manual and maximum flow chart

Certifications:

- Class I product with measurement function according to Directive 93/42/CEE

- Standard EN ISO 23747:2017
