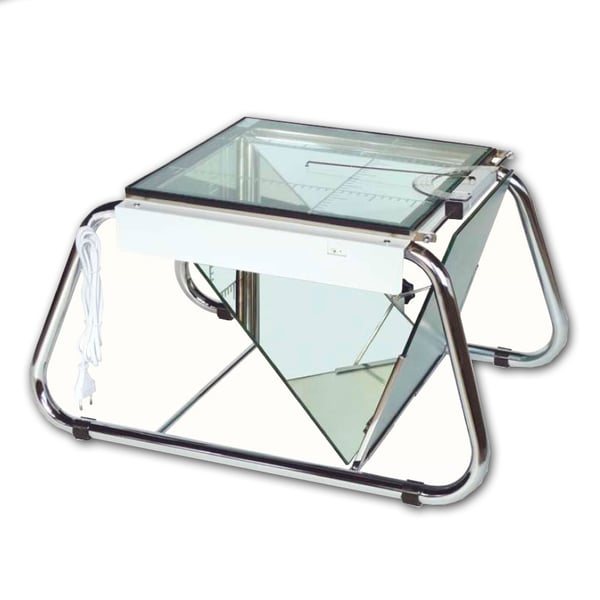

Podoscope with electrical installation in chrome-plated steel

The 6100 podoscope is a device designed for visual gait analysis . It is made with a chrome-plated tubular steel frame . It includes a removable, graduated glass surface and two visual inspection mirrors (one fixed and one 90° adjustable).

In addition, it has:

Sliding goniometer with indicator pointer

Integrated LED lighting using 4W tube

Technical characteristics:

Structure: Chromed steel tubular

Upper glass: Laminated 5+5 mm, measurements 383 x 383 mm

Mirrors :

Fixed: 5 mm isosceles trapezoid (270-370 x 300 mm)

Folding: 5 mm isosceles trapezoid (290-370 x 401 mm)

Both mirrors are attached to metal plates for added safety.

Lighting: Parlat brand LED luminaire, 4W, 400 lumens, double insulated (no grounding required)

Maximum supported weight: 100 kg

Goniometer: Included, with indicator pointer

Dimensions:

- Measurements: 60 centimeters wide x 33 centimeters high x 45 centimeters deep

Warranty

2 years against manufacturing defects

The warranty is void if:

Abrasive, corrosive or solvent-based products are used for cleaning.

The device is used for a purpose other than that intended

Labelling instructions are not followed

It is handled by unqualified personnel
