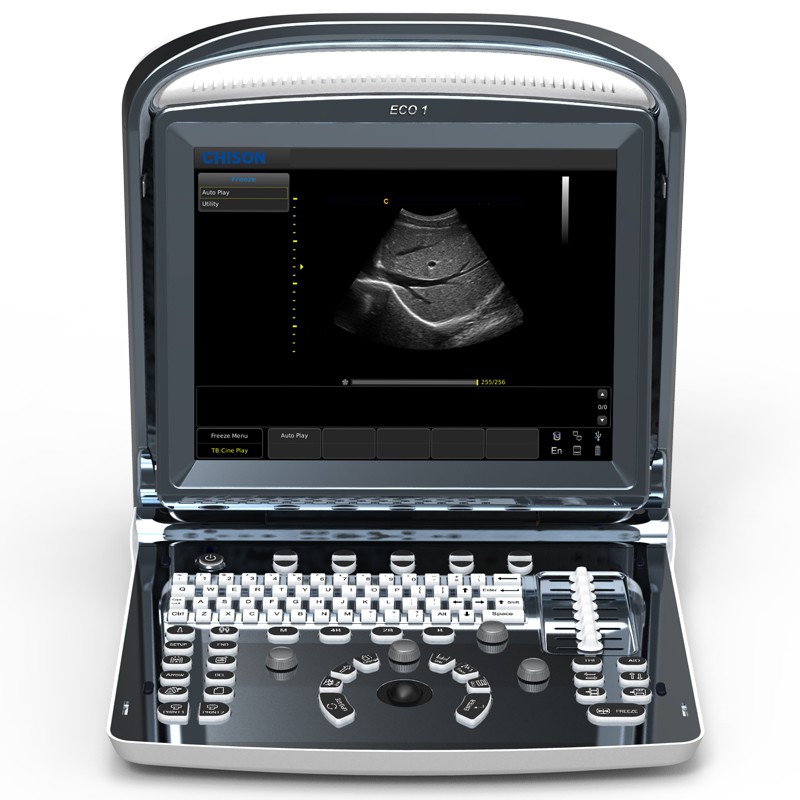

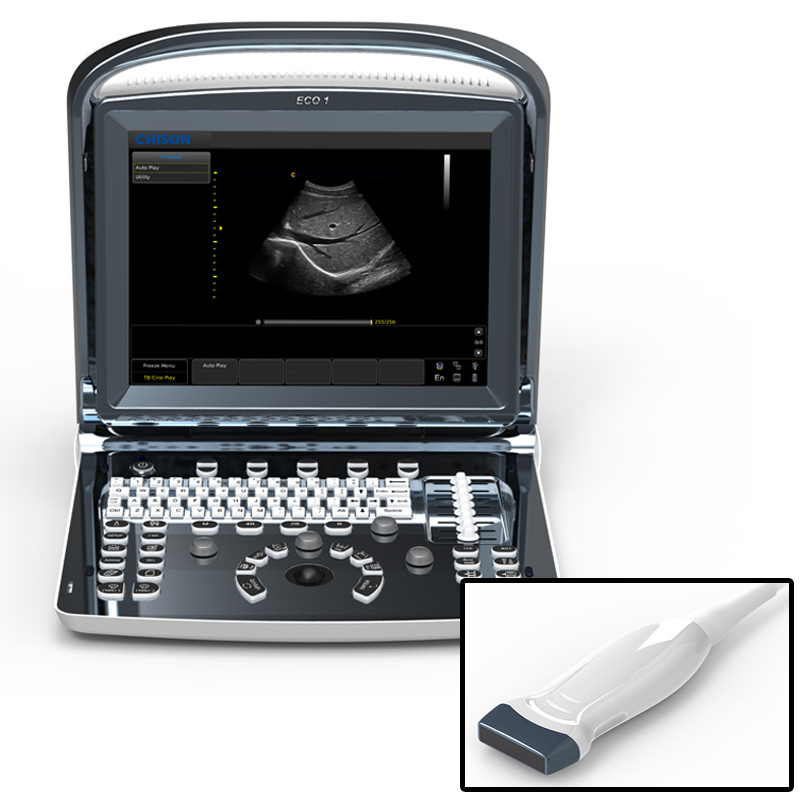

Portable Echograph Chison ECO 1 with 5.3-11 MHz Linear Probe: 12-inch black and white display (Ref. ECO1.L7S-A)

Description Portable Echograph Chison ECO 1 with 5.3-11 MHz Linear Probe: 12-inch black and white display (Ref. ECO1.L7S-A)

White / black portable Chison ECO 1 ultrasound, ultra-compact and lightweight. Easy to carry, with a modern and elegant design

Equipped with a high frequency linear probe (5.3-11 MHz) that provides a high quality and resolution of image

Chison ECO 1 is the ecograph model of the prestigious Chison brand . Design and performance outweigh portable ultrasound systems first generation.

The most important consideration during its development was the portability , the simplicity of use and its total reliability .

The ECO 1 is almost as small as a laptop and is easy to carry , since it only weighs 4.5 kg ; starts very fast is designed to work with connection to the current. The ultrasound machine has a lithium battery * ( * OPTIONAL ) that can operate for 2 hours without charge , therefore, it can be used at any time anywhere.

ECO 1 has an easy-to-use ergonomic operator interface where the buttons are grouped by functionality around the TrackBall. Numerous functions can be activated with a single button so that its use is easy, fast and efficient .

It comes with a 12-inch rotating LCD monitor that ensures that test results can be viewed comfortably in all circumstances.

The system is intended for a wide range of physicians and physiotherapists . The built-in software packages and 2 transducer ports make it suitable for carrying out OB / GYN, Urology, Abdomen, Vascular, Small Parts exams.

ECO 1 is today the best quality - price option of ultrasound scanners with black / white image.

Strengths

- 12-inch LED rotating monitor (0 - 30 degrees) that adapts to different viewing angles

- Ultra light and compact design , ideal for mobile services

- Multiple applications : Urology, Vascular, Small parts, Pediatrics, Cardiology

- Display modes: B, B / B, 4B, M, B / M

- Grayscale 256 levels

- Multiple beam forming technology (improves frame rate, improves image resolution)

- 240mm Maximum scanning depth (depending on the type of probe)

- 2.5MHz - 11 MHz Probe frequency (depending on the type of probe)

- File management - Patient information management, Patient image registration, Patient examination report.

- A wide range of available transducers

- Software packages, General measure, OB, Obstetrics, GYN, Urology, Abdomen, Cardiac B / M mode, Vascular, Small parts, Orthopedics, Pediatrics.

Main Technical Characteristics

- 1 connector for the probe.

- Easy to use and intuitive thanks to the various function keys.

- Intuitive data manager: all images and reports can be saved through scanned visualization from the PC and exported in JPH and PDF.

- Memory: 8G of internal memory; The data back-up can be done on an external USB support or on the PC.

Screen - Monitor

- LED monitor 12 'inch and high resolution

- Full screen function to increase the images

- Luminous images also if the scans are made externally at low energy consumption, longer life compared to the LCD monitor

- Ergonomic 0 to 30 ° to have different viewing angles

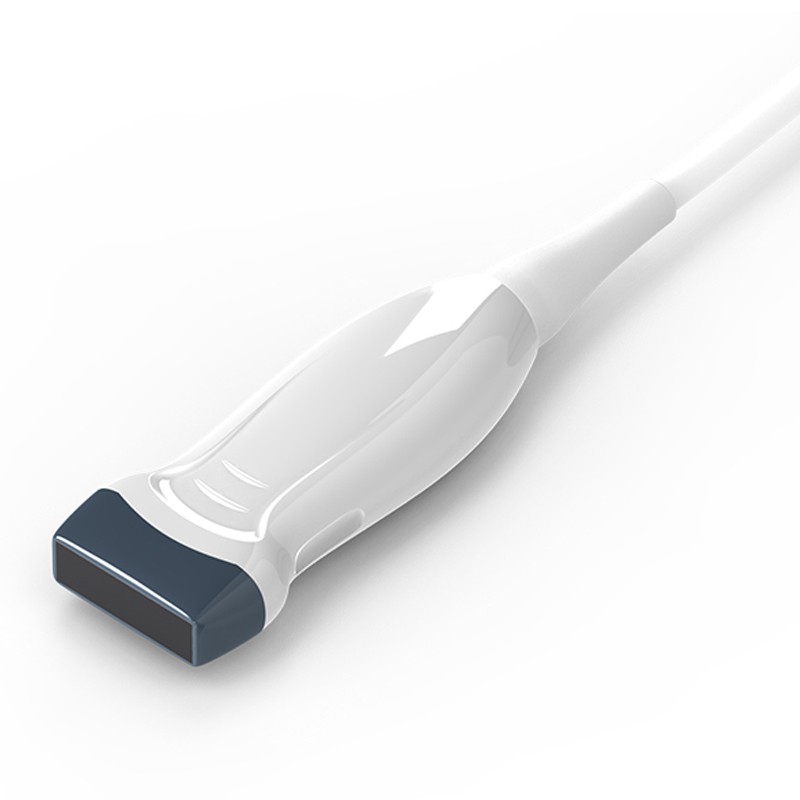

Technical Characteristics Linear Probe 5.3 to 11 MHz

- Scanning method: Linear

- Main frequency: 7.5

- Probe bandwidth: 5.3-11 MHz

- Application: abdominals, small organs, MSK, vascular, pediatrics, orthopedics

- Working depth: 7.4 cm

Display mode

- B, B / B, 4B, M and B / M

Advanced Technology that Provides Excellent Image Quality

- Multi-beam Former

- Zoom: 4 steps

- Space Compound Imaging

- SRA (noise reduction algorithm): It is a technique that uses a variety of useful algorithms to avoid "smudging", smooth the images of tissues and mark weak edges

- i-Image

- THI - second harmonica - to improve the quality of the image

- Chroma

- Images of the EasyViewTM Storage System

- Complete measurements package

- Data presetting

- External ports: USB, Video

Languages

- Chinese, Italian, English, German, Spanish, Russian, Turkish, French, Czech

Standard configuration

- Main unit

- 3 USB ports

- 1 x Probe connector

- Includes 5.3-11 MHz linear probe

- Optional battery not included

- VGA port

- Video port

- LAN port

Clinical Value and Applications
