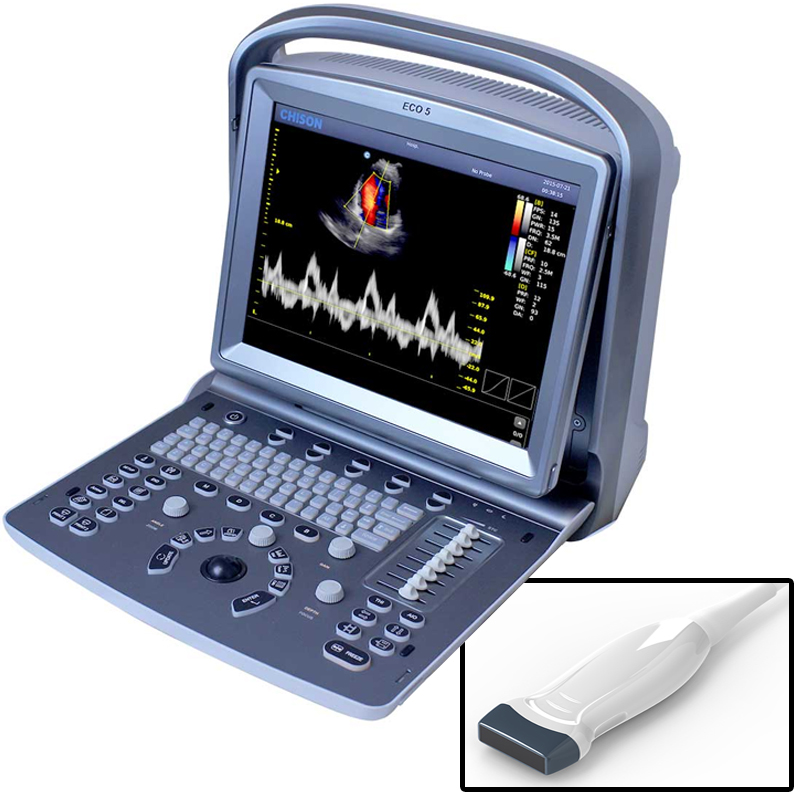

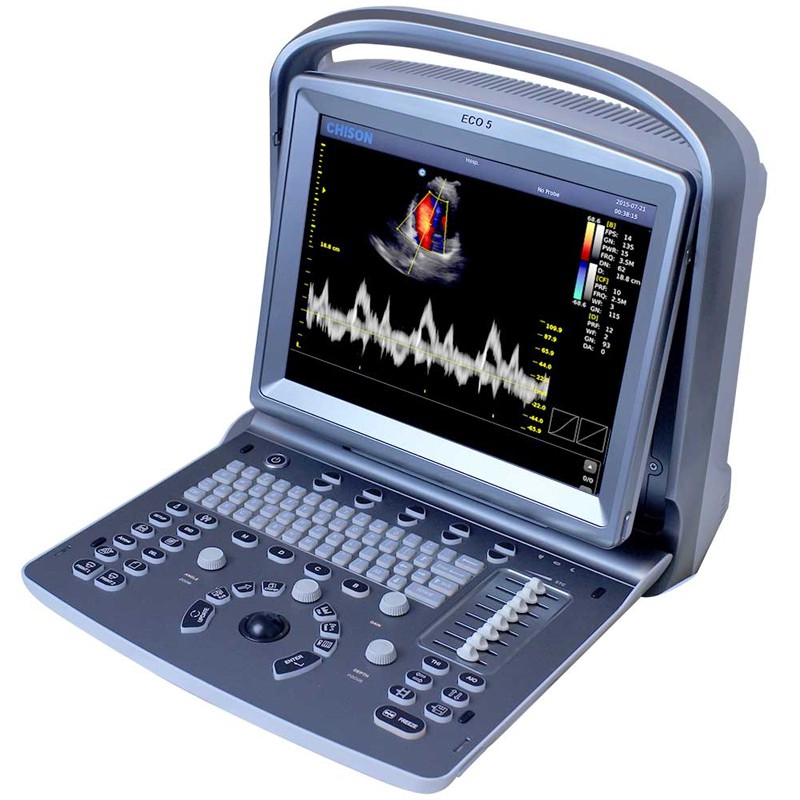

Portable Echograph Chison ECO 5 with Linear Probe 5.3-11.0 MHz: Color Doppler with 12-inch screen (Ref. ECO5.L7S-A)

Description Portable Echograph Chison ECO 5 with Linear Probe 5.3-11.0 MHz: Color Doppler with 12-inch screen (Ref. ECO5.L7S-A)

Portable Echograph Chison ECO 5 with color Doppler, ultra compact, lightweight and easy to transport

Equipped with a high frequency linear probe (5.3-11 MHz) that provides a high quality and resolution of image

ECO 5 is the newest model in the ECO series of the Chison brand . It is equipped with color Doppler , so it can be used for a wide variety of exams . In addition to the known imaging techniques: - Image of tissue harmonics, Speckle Reduction Algorithm, Composite Technology, I-image: image optimization software. Several new features are introduced , such as the Auto Image Optimization (AIO) optimization tool and the full-screen zoom that makes full use of the 12 'LCD screen

Thanks to the EasyViewTM system, patient data, measurement reports and stored images are easier to manage ; and by using the USB ports we can not only export the saved data quickly , but we can also connect a PC printer that offers a good alternative to the most expensive video printers.

Chison ECO 5, is one of the best color doppler ultrasound system options with advanced technology at a competitive price.

Strengths

Ergonomic

- LED rotating monitor (0 ~ 30 °): different viewing angles

- Unique LED : reduces eye fatigue

- Keyboard design : for quick and easy access

- A key for displaying images in full screen

Complete Portable Ultrasound

- Complete digital beam generator

- Color Doppler technology

- Double frame rate technology

- Color priority

- Color filter

- Multiple Applications : Abdomen, OB & GYN, Urology, Vascular, Small parts, Pediatrics, Cardiology.

• THI (harmonic image of tissue)

• SRA (speckle reduction algorithm)

• Composite images

Efficient

- Simplified workflow

- Built-in EasyView ™ imaging system , fast image storage / retread / transfer , direct button printing, make the workflow better than you can dream.

Eco friendly

- Less radiation

- Lower energy consumption

- Longer life: LED

Main Technical Characteristics

- 2 probe connectors

- Easy to use and intuitive thanks to the various functions

- Intuitive data manager: All photos and reports can be saved through digital scanning visible on the computer, and exported in JPG and PDF format

- Memory: 8G of internal memory ; the data back-up can be done on an external USB or PC support

- Built-in rechargeable battery BT-2500 Li-ion 4400mAh 14.8V (2.5 hours)

Display

- 12 "LED monitor at high resolution

- Resolution: 1024X768

- Full screen option

- Ergonomic 0 to 30 ° to have different viewing angles

Keyboard

- Alphanumeric backlit keyboard

- 6 Different function keys that allow directly: select the desired application, optimize the image directly (AIO Automatic Image Optimization), save the image and create a CINE-Loop, access the calculation package (measurement), create reports, print from the PC or video printer.

- A warning light indicates the active function keys

- 8 TGC commands to regulate the image

Technical Characteristics Linear Probe 5.3 to 11 MHz

- Scanning method: Linear

- Main frequency: 7.5

- Probe bandwidth: 5.3-11 MHz

- Application: abdominals, small organs, MSK, vascular, pediatrics, orthopedics

- Working depth: 7.4 cm

Image Modality

- B mode, M mode, CFM mode, PW mode

Display Modality

- B, B / B, 4B, M, B / M, CFM, PW, trapezoidal, B + CFM, B + PW, B + CFM + PW

Pulsed Doppler

- Pulsed Doppler (PW) with excellent resolution and automatic measurement of the path that improves diagnostic reliability .

Advanced technology

- Multi-beam Former

- Technology pulsed Doppler color (technology of double frequency of pictures priority in color, color filter)

- Automatic PW pulsed Doppler plot

- Space Compound Imaging

- SRA (noise reduction algorithm): it is a technique that uses a variety of useful algorithms to avoid "smudges", smooth images of tissues and mark weak edges

- i-Image

- THI - second harmonica - second harmonica - to improve the quality of the image

- Complete calculation packages: general measurements and clinical measurements

- File system for EasyViewTM images

- System for managing patient information

- Amount creation system

- Zoom

- i-image

- Cinema Loop

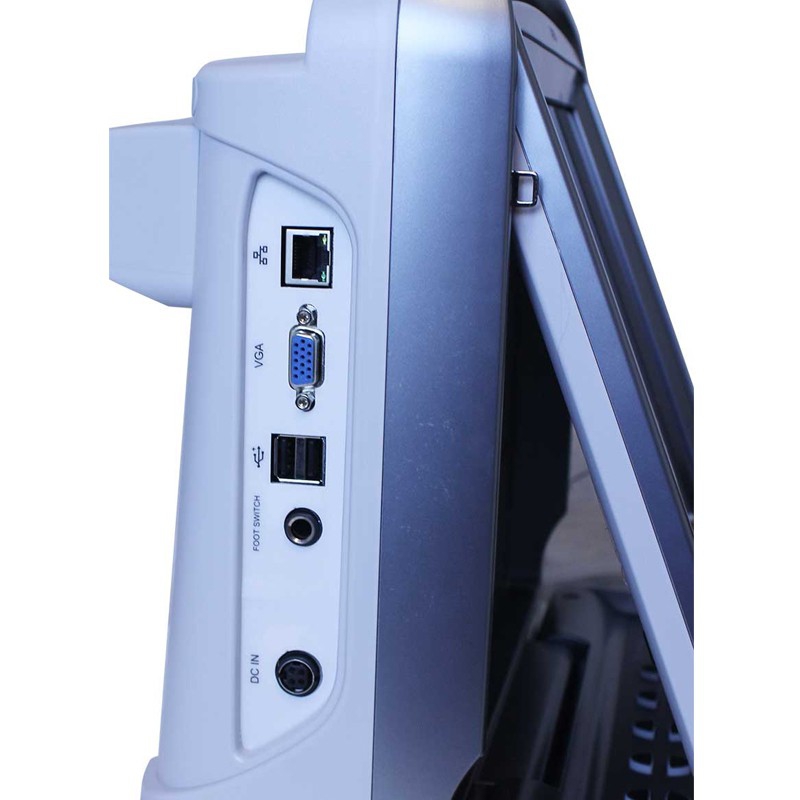

- 3 USB ports: 2 on the left side and 1 on the right

- Ethernet port, Video output, VGA port

- Thermal printer and laser support

Languages

- English, Chinese, Italian, Spanish, French, German, Russian, Czech, Turkish

Standard configuration

- Main unit

- Includes linear probe of 5.3-11.0 MHz

- Battery, duration approx. 2 hours

- 3 USB ports

- Ports VGA, VIDEO, LAN

Technical data

- Dimensions: 33.5 x 15.5 xh 35 cm

- Weight: 6.5 Kg

Clinical Value and Applications

Which printers are compatible with Chison ultrasounds?

(Those that are compatible are marked in red)

Warranty:

The device has a 2-year warranty.
