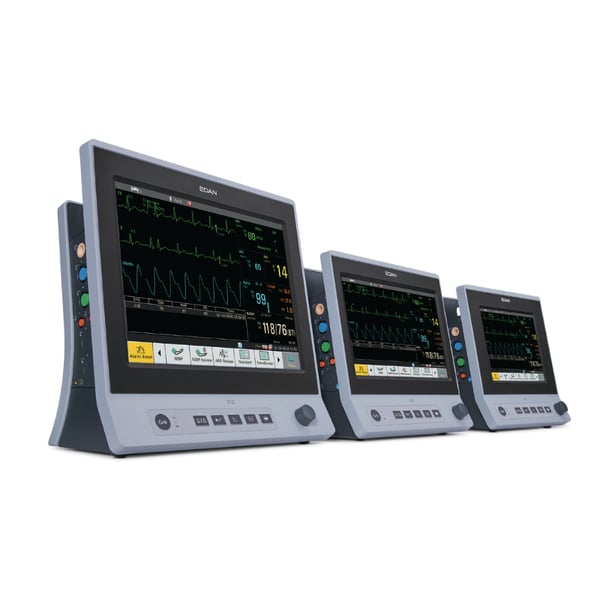

Portable Multiparameter Patient Monitor - Models EOX8, EOX10 and EOX12

Discover the EOX8, EOX10 and EOX12 portable multiparameter patient monitors , designed for accurate and reliable clinical monitoring. Equipped with pacemaker detection, arrhythmia and ST segment analysis, and interference-proof technology, these devices ensure the best performance in medical environments. With customizable options such as touchscreen, Wi-Fi and expandable storage , they offer flexibility for every need. Ideal for hospitals and clinics, with standard accessories included and a fanless design for durability.

Choose quality and precision in every model!

Available Models:

EOX8
X8: 8-inch color screen

EOX10
X10: 10.1-inch color screen

EOX12
X12: 12.1-inch color screen

Common Specifications:

Standard Configuration:

ECG (3-5 leads)

Breathing (Resp.)

Noninvasive Blood Pressure (NIBP)

SpO2 (EDAN)

Temperature (1 channel on X8, 2 channels on X10/X12)

Pulse

Main Features:

Pacemaker detection

Electrosurgery interference proof

Defibrillation protection and synchronization

Arrhythmia and ST segment analysis

OxyCRG for respiratory assessment in neonates

Edan exclusive technologies:

iCUFSTM: Advanced algorithm for intelligent deflation in NIBP readings

iMATTM: Motion resistance and low perfusion performance for SpO2

iCARB®: Intelligent Identification of CO2 Pseudowaves

iSEAP TM: Automatic detection of 33 types of arrhythmias and SEMIP® algorithm for 208 ECG findings

Fanless design

Night mode and alarm lights for clinical environments

Connectivity with MFM-CMS central

Internal memory for data storage

Optional:

Advanced Features:

ECG (6/12 leads)

EDAN CO2 (Side flow with top water trap)

IBP (Invasive Blood Pressure) in X10 and X12

CO (Cardiac Output) in X12

Thermal printer

Touch screen

Wi-Fi module

SD card slot for added storage

Connections: Serial and USB ports, VGA output

Standard Accessories:

ECG patient cable 5 leads

Bag of electrodes

Reusable SpO2 Sensor for Adults

Latex-free adult cuff

NIBP tube with connector

Temperature probe

Rechargeable Li-Ion battery

Instruction manual
