ri-mini® Pocket Otoscope/Ophthalmoscope with 2.5V HL illumination (black)

Otoscope and ophthalmoscope equipment with 2.5V HL illumination for a correct diagnosis of vision and hearing capacity. Supplied in a sturdy case for protection and transport.

Riester offers excellent pocket instruments for ENT and direct ophthalmoscopy, made of resistant materials. The ri-mini® and pen-scope® otoscopes and ophthalmoscopes are well suited for both physicians and students. Their low weight and manageable design make them very useful companions, both in hospital and home visits and in daily use. The ri-mini® and pen-scope® otoscopes and ophthalmoscopes impress with their excellent price-performance ratio.

Technical characteristics:

Otoscope:

- With 2.5 V HL halogen lamp.

- Fiber optics for optimal concentration and transmission of light. In combination with the lamp, it provides a cold examination light similar to daylight, which is very pleasant for the patient.

- Detachable 2.5x magnifying glass.

- With the magnifying glass removed, external instruments can be inserted.

- Screw lock for secure mounting on the handle.

- Sturdy adjustment ring to place the head in the ideal position with respect to the handle.

- Watertight system for performing pneumatic otoscopy.

- Housing made of fiberglass reinforced plastic, extremely resistant.

- Easy replacement of the lamp at the bottom of the instrument head.

- Includes 4 mm ear speculum.

- Specula input compatible with specula from other renowned manufacturers.

Ophthalmoscope:

- With 2.5 V HL halogen lamp.

- Screw lock for quick and secure mounting on the handle.

- Sturdy adjustment ring to place the head in the ideal position with respect to the handle.

- Housing made of fiberglass reinforced plastic, extremely resistant.

- Easy replacement of the lamp at the bottom of the instrument head.

Doctor's side

- Lens wheel with corrective lenses from 0 to +20 and from 0 to –20 diopters.

- Illuminated diopter indication.

- Integrated goggle protector.

patient side

- Easy-to-use diaphragm adjustment wheel.

- Four different diaphragms:

Small circle and half circle to reduce reflections in case of small pupils.

Large circle for normal fundus examinations.

Fixation star to determine a central or eccentric fixation.

- Red-free filter to increase contrast.

- To assess minimal vascular changes, e.g. retinal hemorrhages

Presentation:

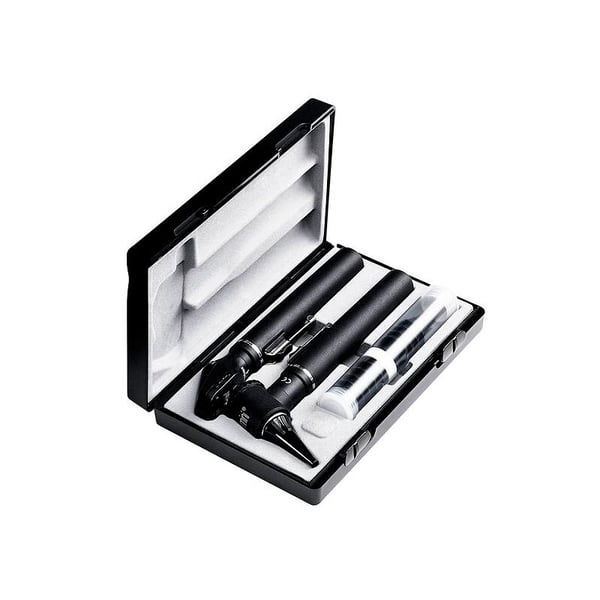

- In rigid case with two sliding safety locks.

- Plastic tube with five 2.5 mm and five 4 mm reusable ear specula.

- Handles for two AA type batteries.

- Batteries not included.
