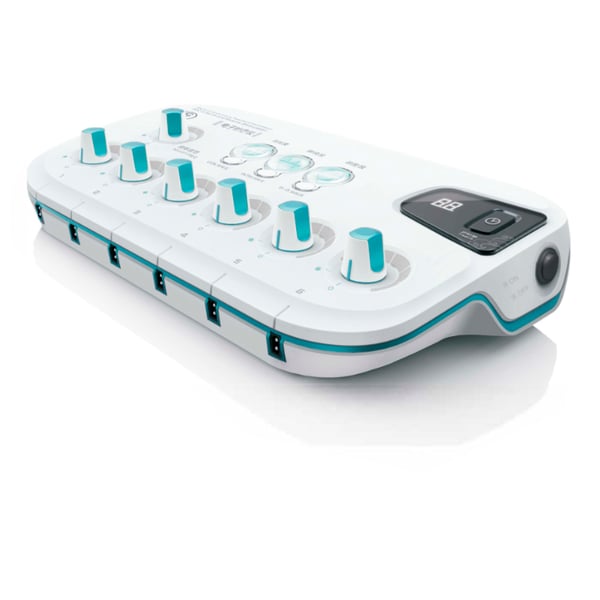

SDZ-II acupuncture electrostimulator: Device that unites the most modern technology with the traditional Chinese technique

The Muscle and Nerve Stimulator (SDZII) combines modern microcomputer technology with Traditional Chinese Medicine acupuncture and meridian theory. It consists of a generator and multimode pulse electrodes of extreme low intensity and low frequency. This electrostimulator contains 6 cables with crocodile clips and 6 electrodes . It is an ideal device for the treatment of low-frequency pulses on human acupuncture points .

Technical characteristics:

- Contains 6 cables with crocodile clips and 6 electrodes.

- Input Power: 10.0VA

- Output pulse wave: asymmetric biphasic square wave

- Output channels: 6

- Maximum output power: 0.3VA (with 2500 load independence)

- Output pulse frequency: 1 to 100Hz adjustable +/- 15% tolerance.

- Output modes:

• Continuous wave: Continuous
• Interrupted wave: 15 seconds of continuous wave and 5 seconds of pause
• Dense Dispersion Wave: 1:5

- Measurements: 29.2 cm X 15.6 cm X 4.7 cm

- Total weight: 1kg

Basic endowment:

- 6 sets of lead wires (six different colors)

- 6 Pairs of self-adhesive electrodes (size 50mm x 50mm)

- 6 pairs of metal clamps (size 28mm)

- 1 instruction manual

- 1 charger

Warranty:

- Items from this manufacturer (except accessories) have a 1-year warranty

- The accessories that are included with the products or that can be purchased separately, such as cables, applicators, bulbs, batteries, power adapters, heads, etc. are not covered by the warranty.

- Expendable materials such as electrodes, conductive gel, etc. are not guaranteed.

* The guarantees will be applied as long as the device and its accessories are not damaged by misuse or negligence of the client: blows, broken displays, overvoltage, etc.
