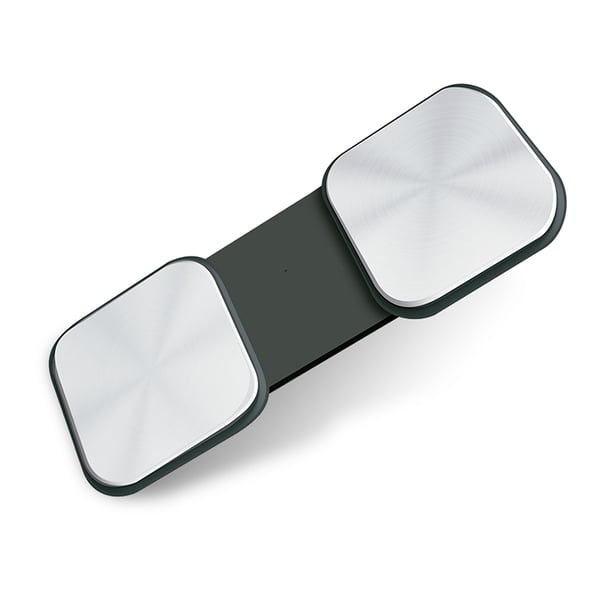

SnapECG: The Most Comprehensive Portable ECG Meter on the Market

Do you want to know the health of your heart? Well you've never had it so easy

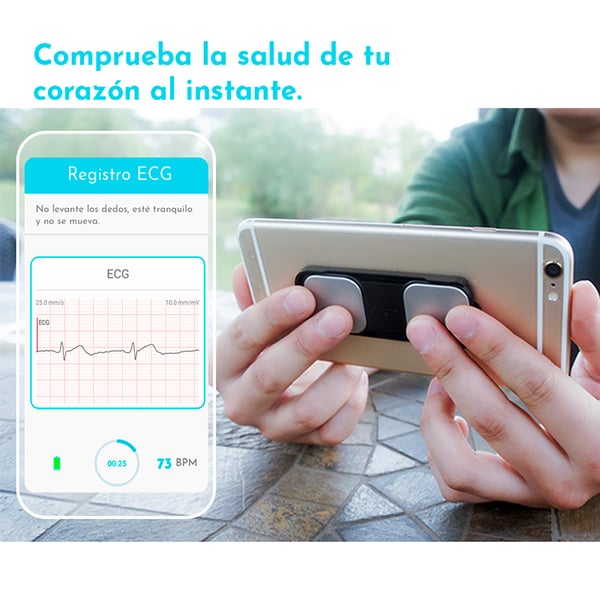

Cardiumm is a mobile application that, together with the electrocardiograph device, records the patient's ECG and displays it on the smartphone. The tool offers an immediate result with its own algorithm and, if the patient wishes, they can share it with the doctor through the same app.

In this context, it should be noted that any registered cardiologist can register in the Cardiumm application. Thus, you will have a personalized interface to manage your patients and consultations.

Doctors and their patients are connected on the same platform. The healthcare professional offers their remote healthcare services through the Cardiumm digital platform (ICTs) in order to interpret and control the ECG of their patient. Now, the patient is more controlled and safe.

This technology facilitates the periodic control of the ECG of people who suffer from heart arrhythmias and all those who want to know their state of health. In addition, it is a tool for the consultations of cardiologists.

Strengths:

- Register your ECG: Download the free APP and start monitoring your heart. CARDIUMM records your heart ECG and saves it on your smartphone.

- Consult your doctor: Within the APP you can link directly with your cardiologist. When you have doubts about your electrocardiogram, you can make a consultation.

- Instant ECG report: a result report of your electrocardiogram is automatically generated after each recording. All your ECGs are saved in the "History" screen.

- Medical device approved by the AEMPS: Meets all the requirements of the Spanish Agency for Medicines and Health Products.

Technical characteristics:

General:

- Device size: 83 * 32 * 3.5 mm
- Device weight: 31.5 gr
- Power supply: CR2016 botton battery
- Packing size: 160x80x40 mm

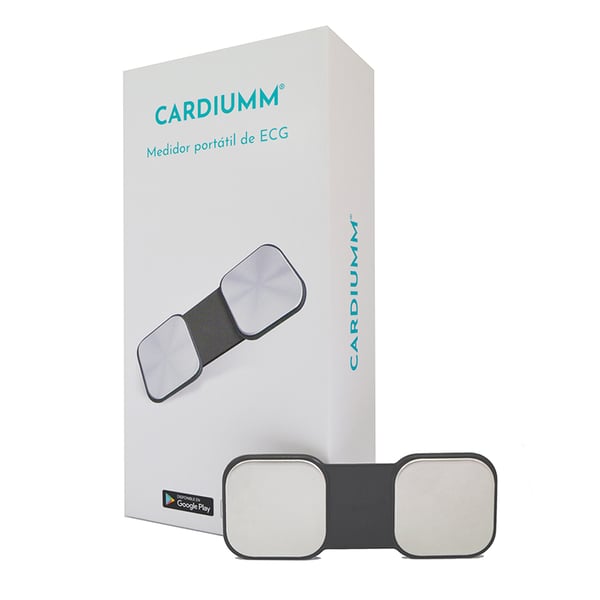

Accessories:

- 1 Battery
- 1 Instruction Manual
- 1 warranty card
- 1 Support
- 1 Support Adhesive

Hardware:

- 1 Record time 30s
- 2 Memory Record on smartphone
- 3 Device required Smartphone (Apple or Android)
- 4 HR Range 15bpm ~ 350bpm ± 1% or ± 1bpm
- 5 Scanning speed 25mm / s (error range ± 10%)
- 6 Sensitivity 10mm / mV (Error Range ± 2%)
- 7 Input dynamic range Peak Value - Peak 10mV
- 8 Input impedance ≥10MΩ
- 9 CMRR ≥120dB
- 10 Signal calibration 1.0mV ± 0.05mV
- 11 System noise ≤15μV
- 12 Frequency range 0.5Hz - 47Hz
- 13 Polarization voltage ± 400mV
- 14 Minimum signal detected 20μV

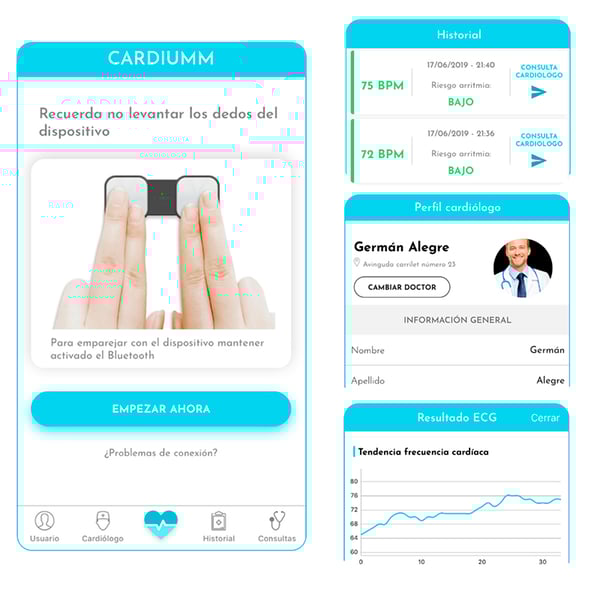

Patient application:

- ECG record: Record and display of the ECG in real time Display of pulsations in real time record and storage of the ECG
- Bluetooth device connection

Doctor application:

- Public profile Building of the public profile
- Patients Linked patients
- Statistics: New patients consultations made // Average consultation time // Patient consultations
