Sonoeye Chison Portable Ultrasound Scanner with P2 Linear Probe: Ultra-compact, lightweight, high power and very easy to use

Fisaude is the exclusive distributor of the Chison SonoEye ultra-portable ultrasound scanner.

The lightest handheld ultrasound scanner with the best features on the market today!

- Highly compact design but with incredible performance

- Lighter than a mobile phone

- Low energy consumption

- High image power

- Versatile, comfortable and very easy to use

Experience unparalleled definition and a lightweight design with our most popular linear ultrasound probe, SonoEye

Capture high-definition images of surface structures, including vascular, nerve, musculoskeletal, and small parts, with ease using linear probes. Effortlessly explore detailed images of cardiac function and motion with the phased array probe. Additionally, the convex and microconvex probes are ideal for abdominal, adult, and pediatric exams, as well as obstetrics and gynecology, offering versatility and exceptional image quality.

Designed to perform point-of-care ultrasound (POCUS) , that is, ultrasound to diagnose or perform procedures directly at the bedside where the patient is, instead of moving them to the ultrasound machine, whether in a modern hospital, an ambulance, or a remote village.

Its intuitive interface and efficient workflow make it the best choice.

Complete your purchase with accessories:

- Xiaomi Redmi Pad SE 11" Tablet 4/128GB Graphite Grey

- iPad (official Apple)

- Transport cart for CHISON SonoEye CAR1P-KLS portable ultrasound machines

CHISON SONOEYE PROBES

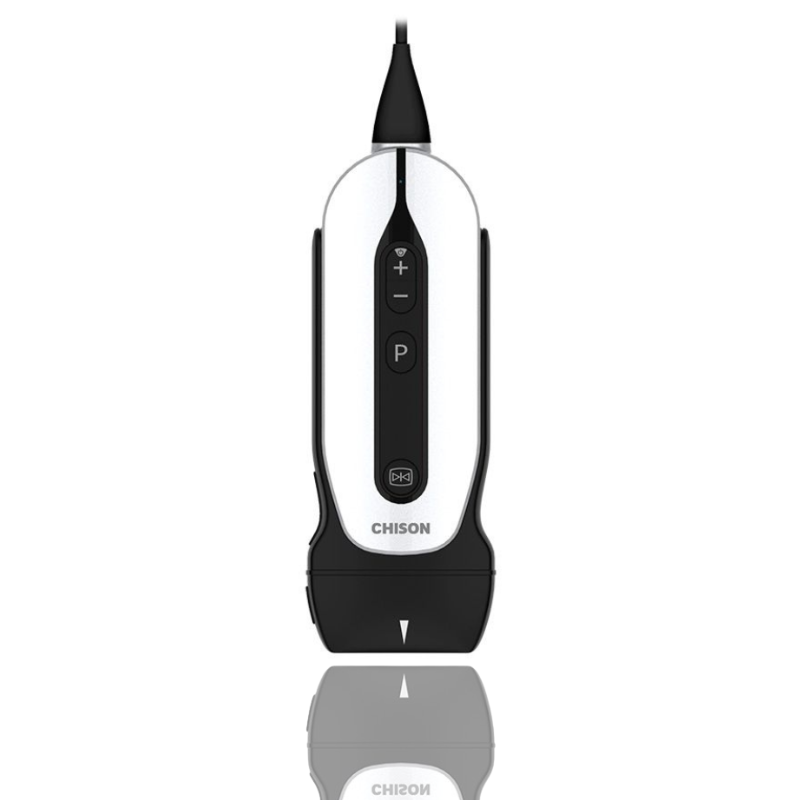

SONOEYE P2 Linear Probe - 7.5mhz and 40mm

Frequency range and presets for linear probe P2:

- Frequency range: 7 MHz / 10 MHz / 12 MHz
- Depth: 0.5 to 15 cm
- Preset for Sonoeye P2: (Carotid, thyroid, MSK, subcutaneous fat, basilic, IV, breast, vertebral, cervical nerve, superior external nerve, LEV, lung, appendix, superficial MSK, plantar fascia, shoulder, deep MSK, Phantom)

Target audience for P2 probe:

MSK Physiotherapy, MSK Podiatry, Primary Care, Vascular Access, Plastic Surgery, Pain Management, Etc.

Overview of the SONOEYE probe

Strengths:

Type-C cable connection to tablet or smartphone. (Check device compatibility with ultrasound probe. iOS and Android)

It is the lightest ultra-portable ultrasound scanner on the market, weighing only 120 grams.

Four programmable buttons on the probe allow you to manage basic settings with just one hand. No need to touch the screen.

Powered on and ready for use in a few seconds.

Sterilizable and easily cleanable. Submersible to 1 meter for 30 minutes. (Waterproof IP67, supports immersive disinfection)

You can set up different users for the privacy of your patients.

You can open patient records and save their scans and reports for easy re-viewing.

Excellent resolution and image quality.

Automatic image freeze after seconds of inactivity for longer battery and probe life

The probe's power source is the tablet's lithium battery, which makes it lighter and prevents the probe from overheating.

Ability to project the tablet's image to an external screen via chrone cast

Configurable in 7 languages

Download the CHISON APP at the following link: Chison App

You can view all the operating manual videos here.

​

​

SONOEYE SOFTWARE MODES:

- B-mode , or two-dimensional mode or 2D mode: Image on a two-axis plane, in grayscale according to the echogenicity or faintness of the tissues.

- Doppler modes:

- Continuous Motion Doppler (CPA): Qualitatively establishes the presence of motion in an image, but only uses a color scale from red to yellow/white. It does not allow for the evaluation of the direction or speed of the flow, but it is capable of detecting slower flows than color Doppler mode.

- Continuous spectral Doppler (CPA + PW) : It is used for measuring much higher velocities than pulsed Doppler.

- Pulsed Doppler (CPD):

- Color Doppler (C): On a two-dimensional image, it assigns a color from a predefined scale to the observed flow according to its direction and speed. It allows for a qualitative evaluation of motion.

- Power color Doppler (CPD) or angio Doppler: Qualitatively establishes the presence of movement in an image, but only uses one color. It does not allow for the evaluation of the direction or speed of the flow, but it is capable of detecting flows at lower speeds than color Doppler mode.

- Pulsed spectral Doppler (C+PW): Generates a graph that represents the flow velocity at a specific point in the two-dimensional image in relation to time. Heart rate.

- M-mode or motion mode: It is used to create the image of moving structures and converts them into waves that appear continuously through a vertical axis

- Double screen : B + B (2B) mode, or B + C mode

SONOEYE SOFTWARE FEATURES:

2D steer, SonoCompare

Auto EF

Auto HR

Auto IMT

HIPAA

Intelligent Doppler

Needle guide software

Professional lung software

PW AutoTrace

QR Scan

Real-Time IMT

Remote Service

SonoBinding

SonoBladder

SonoColor

SonoNeedle

SonoRemote

SuperNeedle

Trapezoid

Reverse from right to left and from top to bottom

Manual focus.

Overall profit.

Sectoral profit (TGC)

Freeze image

AIO function (Automatic Image Optimization)

Manual image optimization : Overall gain, sector gain, dynamic range (20-290), 2D gray map, chroma, 2D steer, persistence, line density, and compound

Manual measurement

Automatic measurement and calculation by medical specialty (general, vessel, small parts, urology, abdominal, OB, gynecology, pediatrics, cardiac, intrapartum)

Manual and suggested annotations

midline

Patient file management

Easy View : To view all the scans performed on the current patient on one screen

Patient reports or summaries

Dimensions:

Weight: 120g (probe only)

Dimensions: 5 x 10 x 1.5 cm

Base staffing:

1 x Chison SonoEye Portable Ultrasound Probe

1 x Carrying Case

1 x Lenovo Tab M11 Tablet

Warranty:

The device comes with a 2-year warranty.

Technical specifications of the Xiaomi Redmi Pad SE 11.0” 128 GB Wi-Fi Tablet (Graphite Gray)

Brand: Xiaomi

Model name: Redmi Pad SE 11.0”

Memory storage capacity: 128 GB

Operating system: Android 13 with MIUI Pad 14

Color: Graphite Gray

Installed RAM size: 4 GB

Model year: 2023

Processor: Qualcomm Snapdragon 680, Octa-core up to 2.4 GHz, 6 nm

Screen: 11.0-inch FHD+ LCD

Screen resolution: 1920 × 1200 pixels

Refresh rate: 90 Hz

Hardware interface: USB Type C

Wireless communication technology: Wi-Fi 802.11 a/b/g/n/ac (dual band), Bluetooth 5.0

Rear camera: 8 MP

Front camera: 5 MP

Battery: 8000 mAh, 10W charging

Speakers: Four stereo speakers with Dolby Atmos sound

Expandable storage: microSD up to 1 TB

Approximate dimensions and weight: 255.5 × 167.1 × 7.36 mm; ~478 g

Sensors and extras: Face unlock, accelerometer, ambient light sensor

Technical specifications of the Apple iPad 128 GB Wi-Fi

Brand: Apple

Model name: iPad (11th generation, with A16 chip)

Memory storage capacity: 128 GB

Operating system: iPadOS

Color: Silver

Installed RAM size: approximately 6 GB (typical internal configuration of this model)

Model year: 2025

Processor: Apple A16 Bionic (5-core CPU, 4-core GPU, 16-core Neural Engine)

Display: 10.86-11 inch Liquid Retina (edge-to-edge design)

Screen resolution: 2360 × 1640 pixels

Hardware interface: USB Type-C (supports charging and accessories)

Wireless communication technology: Dual-band Wi-Fi 6 (802.11ax) with 2×2 MIMO, Bluetooth 5.3

Rear camera: 12 MP wide angle

Front camera: 12 MP with Center Stage for video calls

Battery: Integrated rechargeable lithium polymer battery (up to 10 hours of internet browsing via Wi-Fi or video playback)

Speakers: horizontal stereo speakers

Accessory compatibility: Compatible with Apple Pencil (USB-C) and Magic Keyboard Folio

Sensors: Touch ID, three-axis gyroscope, accelerometer, barometer, ambient light sensor

Approximate dimensions and weight: around 248.6 × 179.5 × 7.0 mm and ~477 g

This list summarizes the key specifications of the 128GB Wi-Fi iPad in a direct format ready to copy and paste.

Technical characteristics of the CAR1P-KLS transport trolley

The SonoeEye CAR1P-KLS cart is a professional medical trolley designed for the safe and functional support of portable ultrasound scanners and tablets in clinical and hospital settings . Manufactured with an extruded aluminum column and a highly stable laser-cut base, it ensures durability, mobility, and ergonomics during daily use.

It incorporates a semi-flexible tablet arm, a silicone probe holder, a PVC basket, and 80 mm wheels, facilitating equipment organization and smooth movement between offices, hospitals, and clinics.

Main features

Tablet stand with semi-flexible arm

Silicone-coated probe holder

Integrated PVC basket

Extruded aluminum column

Laser-cut metal base

4 wheels of Ø 80 mm for smooth mobility

Technical specifications
