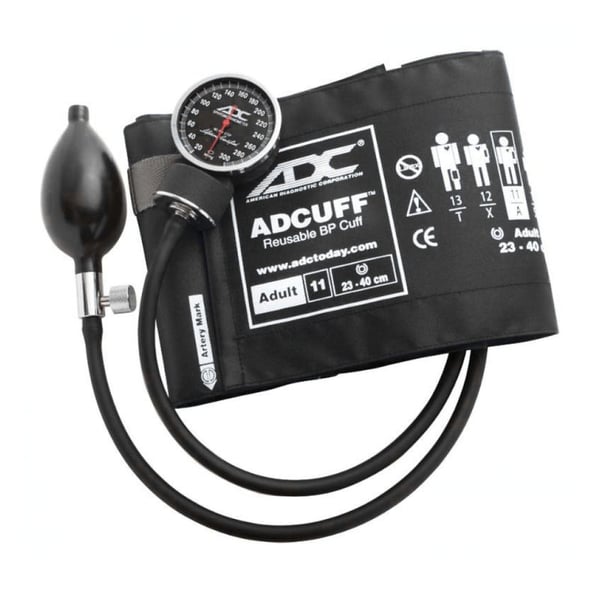

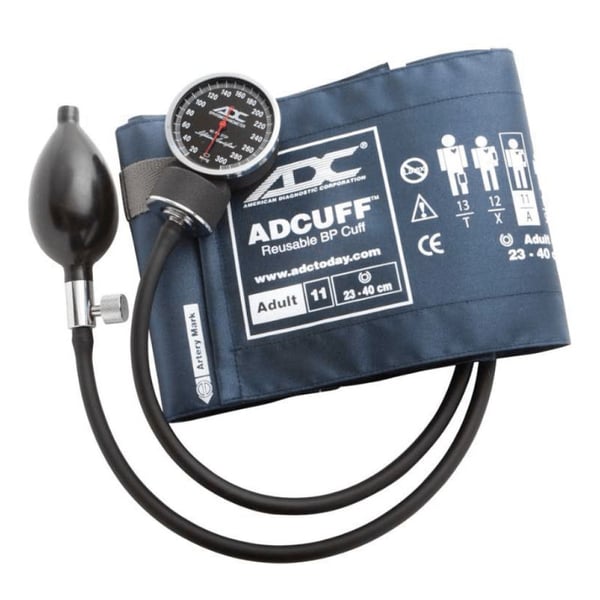

Sphyg Diagnostix 720 Adcuff™ Pocket Aneroid Blood Pressure Monitor

ADC's Diagnostix 720 Series offers more features than any other sphygmomanometer in its class . From the precision Japanese-designed pressure gauge to the meticulously designed Adcuff inflation system, the 720 is our best value. The Adcuff Nylon Cuff is available in a variety of colors and prints in six sizes, from baby to large adult, as well as thigh-high.

The traditional Adcuff model features a two-piece cuff and bladder :

Technical characteristics:

Durable 210 denier nylon construction.

Integral flap secures the bladder and prevents bulging

ADC's patented size guide marking system prevents misfitting.

Longer limb ranges for better patient coverage

Meter hang tab (most sizes), bladder flap, and "property of" label

Velcro adhesive rated for a minimum of 30,000 open/close cycles

Three-year warranty on the bracelet.

The 720 also includes:

Precision crafted 300mmHg Japanese engineered pressure gauge with classic black baked enamel finish

Extended scale plate tick marks reduce parallax for easy viewing from virtually any angle.

Inlet filter deflation and check valve to reduce dust buildup

Adflow chrome plated brass air release valve with micro threads for precise deflation control

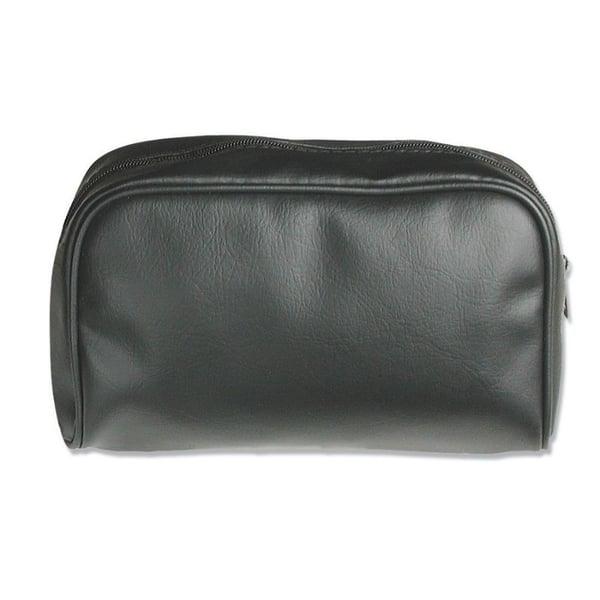

Synthetic leather carrying case with durable nylon zipper

Lifetime calibration guarantee

Made without natural rubber latex. Assembled, inspected and packaged in the USA from foreign components. Meets or exceeds ANSI/AAMI/ISO 81060-1.

Specifications:

Sphyg Type: Pocket

Indicator: 802

Caliber Guarantee: Lifetime

Sphyg Accuracy: +/-3 mmHg at 50ºF (10ºC) - 104ºF (40ºC)

Sphyg Accuracy: Over an extended temperature range +/-3 mmHg or 2% whichever is greater at <50°F (10°C) and >104°F (40°C)

Storage temperature: -4ºF (-20ºC) - 131ºF(55ºC)

Valve type: ADFLOW Number of tubes: 2 tubes

Cuff Type: ADCUFF

Cuff Size: Adult

Cuff range: 23-40cm

Inflation guarantee: 3 years

Grip Color: Black

Zipper/storage case: 880
