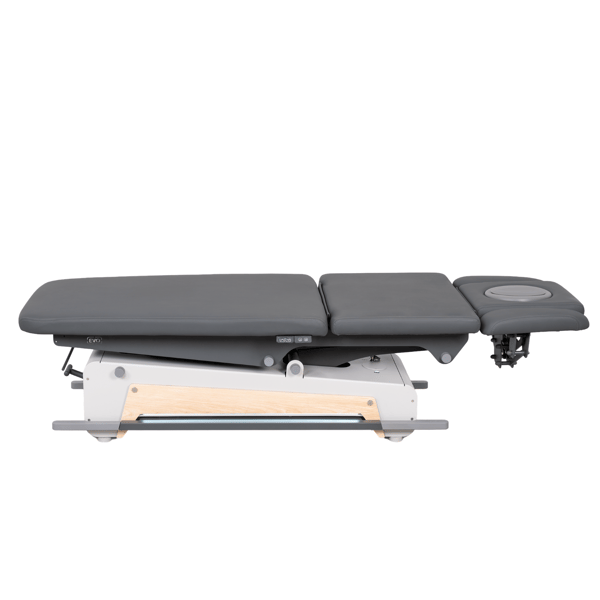

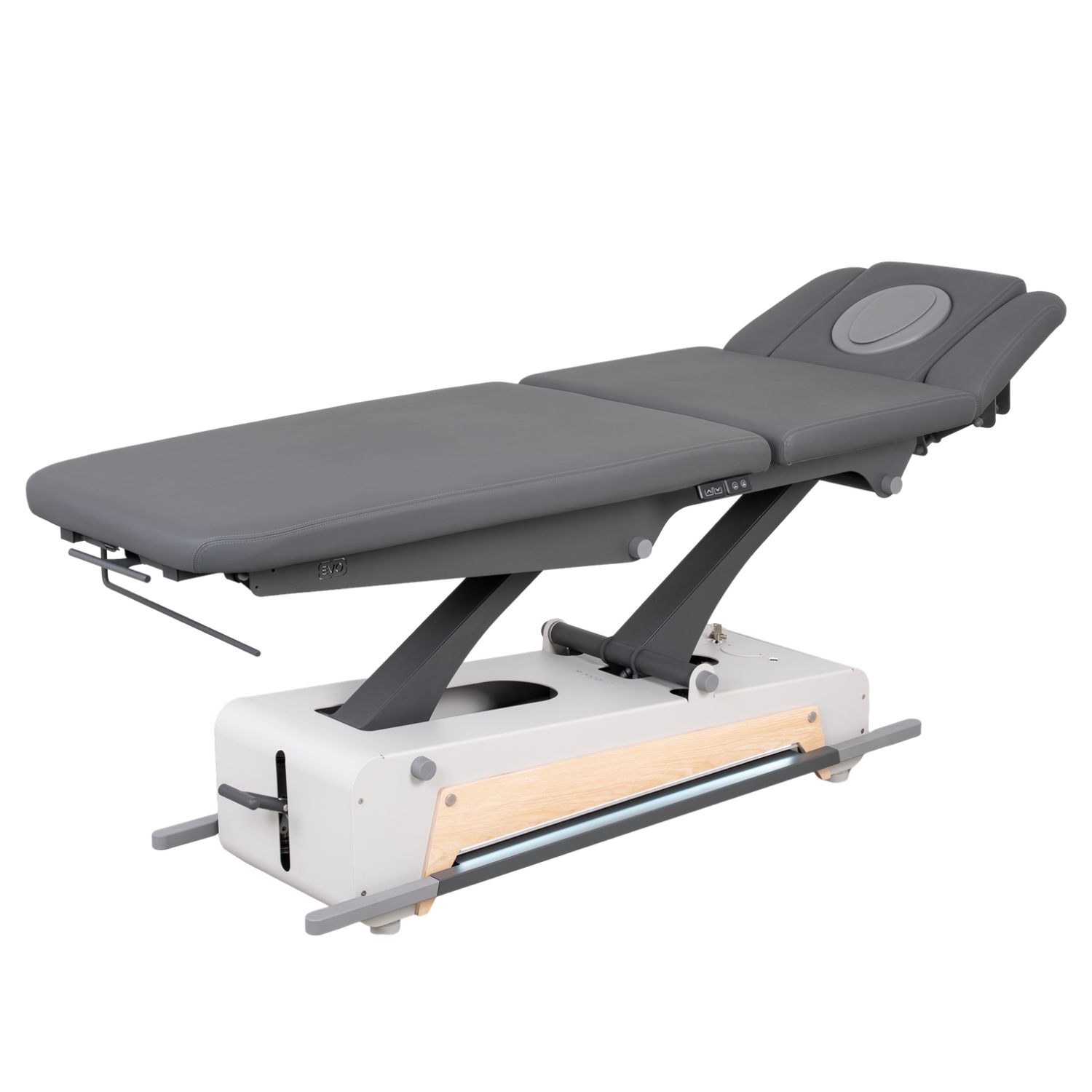

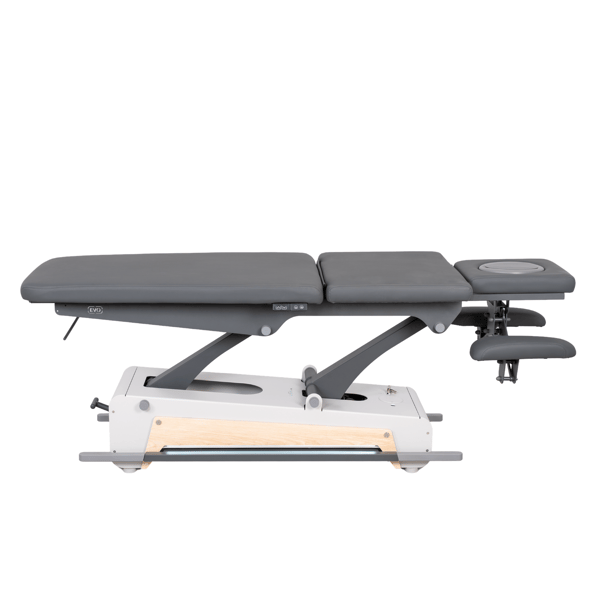

SWOP 5 EVO five-section electric physiotherapy treatment table with heating

The SWOP 5 EVO five-section electric physiotherapy table is designed for professionals who require versatility, precision, and ergonomics during treatments. It features two electric motors : one to adjust the height between 49 and 97 cm and another to electrically adjust the central section, facilitating work in different positions, including kyphosis and chair positions.

Its features include Ergonova 360° perimeter control , adjustable TwinLift armrests , and integrated heating with two temperature settings. It also incorporates hidden casters with a central lock, ambient LED lighting, and the Face+ Comfort Cushion. The 6.5 cm multi-layer padding combines different foam densities to provide a firm and comfortable surface, while the Double Tap Safety system helps prevent accidental activation.

Strengths

• Five bodies to adapt the patient's position.
• Two electric motors for height and central section.
• Ergonova perimeter control accessible from all sides.
• TwinLift armrests with simultaneous and continuous adjustment.
• Integrated heating with two temperature levels.

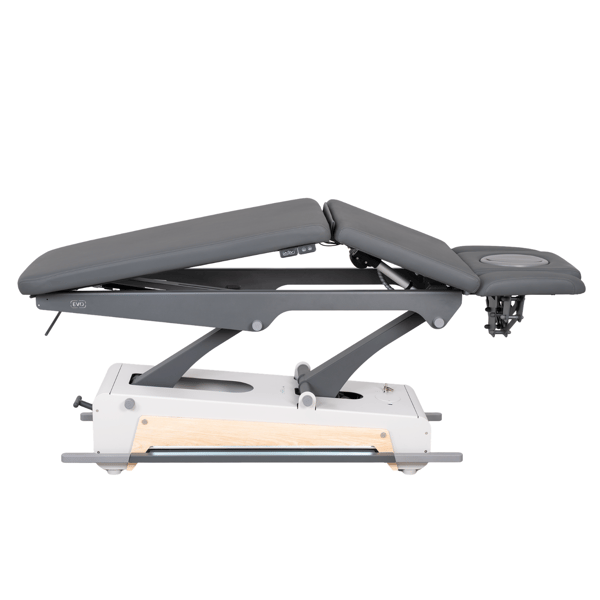

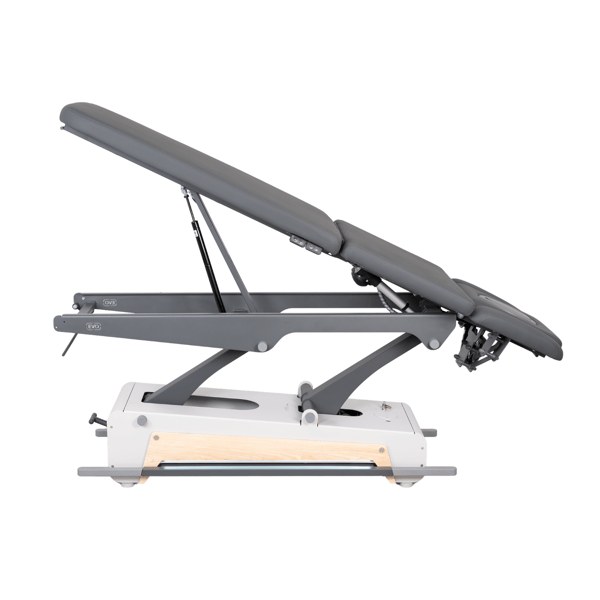

• Kyphosis, chair and Trendelenburg positions.

Perfect for

• Clinics and physiotherapy centers.
• Professionals in osteopathy and manual therapy.
• Treatments that require different working positions.
• Professionals seeking ergonomic adjustments from any side of the examination table.
• Centers that prioritize patient comfort and equipment functionality.

Technical specifications

• Number of bodies: 5.

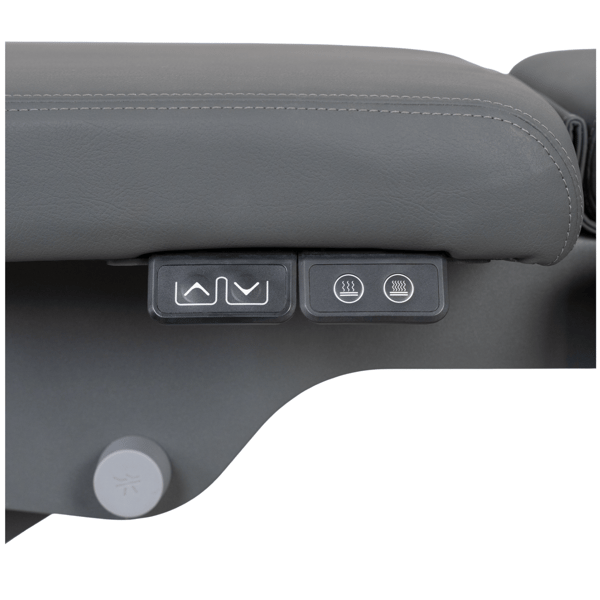

• Heating: integrated into the upholstery, with two temperature levels from 35 to 42 °C, switches on both sides and automatic shut-off after one hour.
• Motors: 2 electric motors of 6000 N, one to regulate the height and the other to adjust the central section.
• Dimensions: 202 × 71 cm.
• Adjustable height: from 49 to 97 cm.
• Lifting time: 16 seconds from minimum to maximum position.
• Weight: 122 kg.
• Lifting capacity: 200 kg.

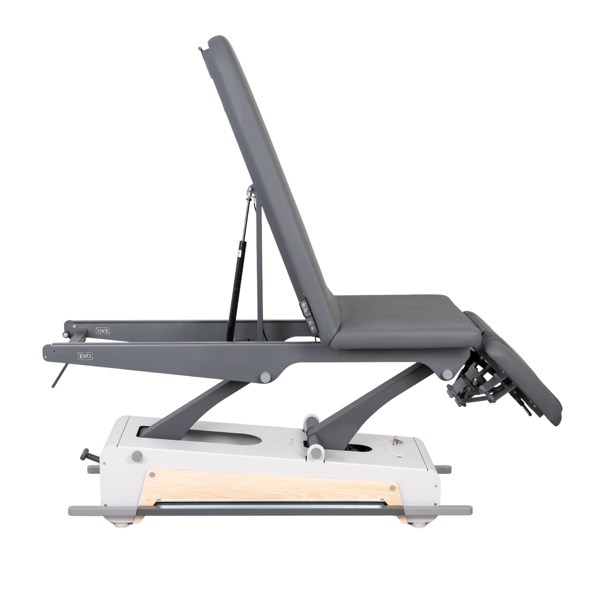

• Working positions: kyphosis, chair and Trendelenburg.
• Headrest: foldable, with tilt from -60° to 30° and adjustment by means of a gas piston.
• Backrest: regulation by means of a gas spring, with an angle of 0° to 80°.
• Trendelenburg position: tilt up to 22°.
• Armrests: TwinLift system with continuous and simultaneous adjustment via gas spring and 18 cm travel.
• Side armrests: foldable side extensions available as an option.

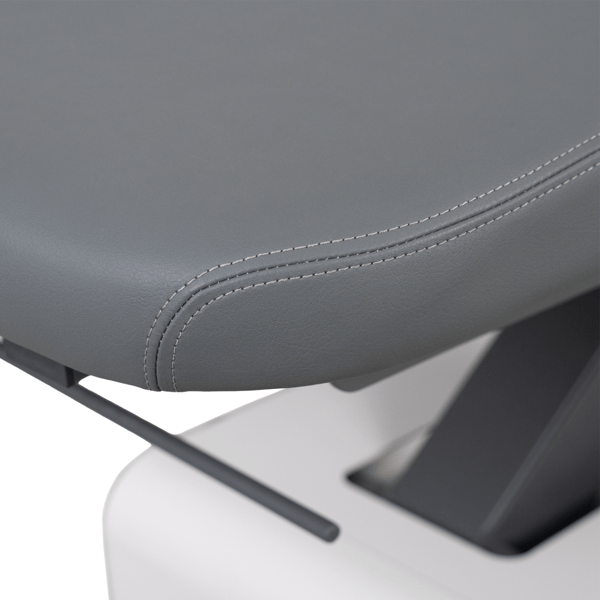

• Padding: 6.5 cm thick, with dual density foam of 60 kg/m³ and 40 kg/m³ on a 1.5 cm wooden base.
• Upholstery: Naggura Skin PU in graphite color, with protection against germs and UV rays.
• Upholstery resistance: greater than 150,000 abrasion cycles.
• Fireproof protection: BS 7176 certification.
• Control: Ergonova Swop 360° Height Control perimeter system, accessible from all sides of the stretcher.
• Safety system: Double Tap Safety with double-press activation and removable safety key.
• Wheels: 4 hidden 360° rotating wheels, integrated under the structure and operated by a central lever and central lock.
• Lighting: Integrated white LED ambient light.
• Toilet roll holder: included.
• Face hole: integrated, seamless Face+ Comfort Cushion with plug.
• Frame colors: dark gray RAL 7015 and light gray RAL 7047.
• Power supply: 110-240 V, 50/60 Hz.
• Power consumption: 300 W.
• Maximum current: 9 A.
• Power cable: 3 m, white.

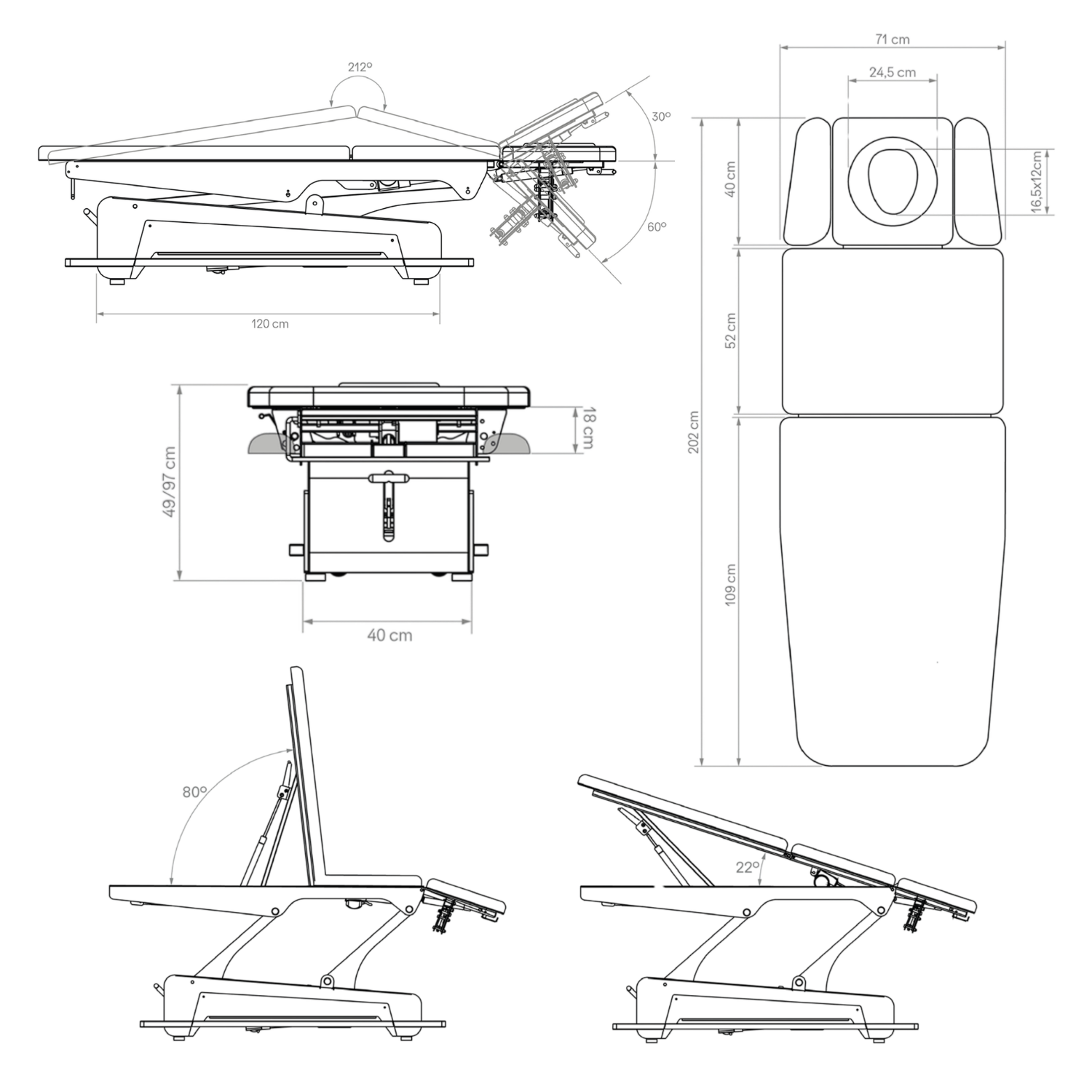

Measures:

Warranty:

• 2-year warranty

IMPORTANT!

The price includes shipping to mainland Spain. In accordance with current transport company policies, delivery will be made to your street address. If porter service is required, please contact us and we will inform you.

Attached files
