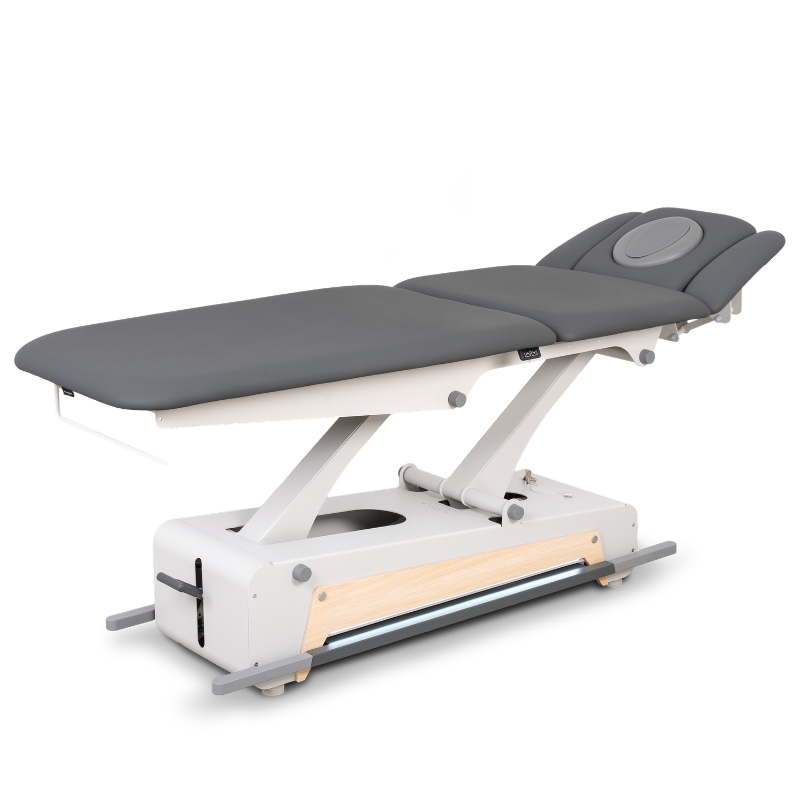

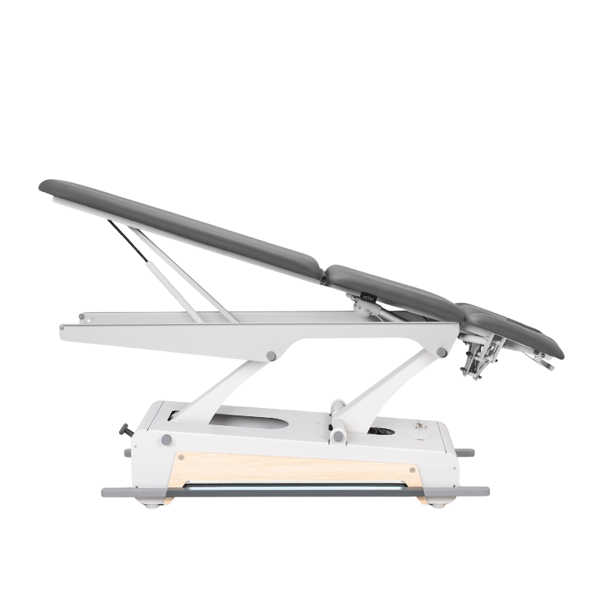

SWOP 5 PRO 5-section electric physiotherapy table with 2 motors

The SWOP 5 PRO electric physiotherapy table is designed for professionals who need to precisely adjust the working position and easily access the area around the table. It features two electric motors , one for height adjustment and another for the central section, and reaches a height of between 48 and 96 cm . Its SWOP 360° Height Control system allows the height to be operated from various points around the structure.

It incorporates TwinLift arm supports, continuously and simultaneously adjustable via gas springs, and head and foot sections with gas spring adjustment. It features 360° swivel casters integrated into the base , LED ambient lighting, and a seamless, integrated Face+ face cushion. The graphite-colored Naggura Skin PU upholstery is designed to offer abrasion resistance and protection against germs and UV rays.

Strengths

• Two electric motors for height and central section.
• High mobility and wide range of positions.
• Ergonova perimeter control accessible from all sides.
• TwinLift arm supports with simultaneous adjustment.
• 360° swivel casters integrated into the base.

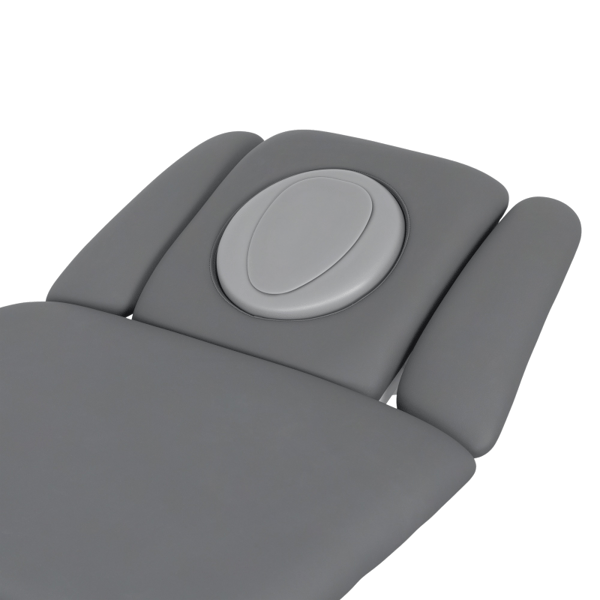

• Seamless, integrated Face+ face cushion .

Perfect for:

• Clinics and physiotherapy centers.
• Professionals who need to adjust their working height.
• Spaces that require access around the stretcher.
• Treatments that need to regulate the central section.
• Centers looking for a stretcher with a functional design and ambient light.

Technical specifications

• Number of engines: 2
• Altitude motor: 6000 N
• Center section motor: 6000 N
• Safety systems: key switch and motor with safety clutch

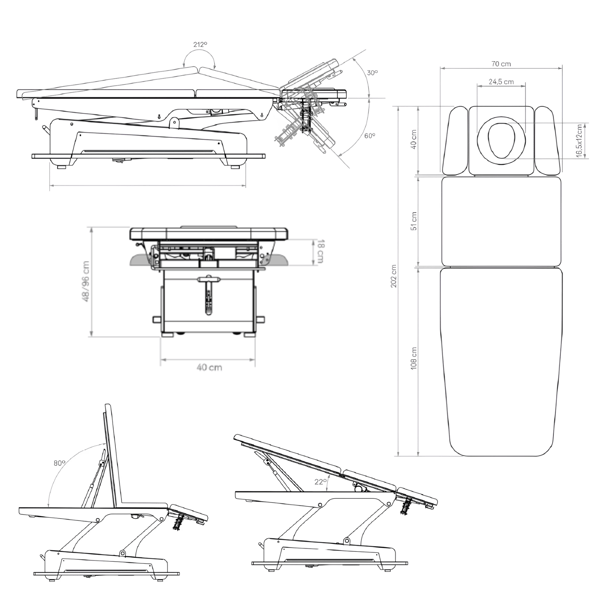

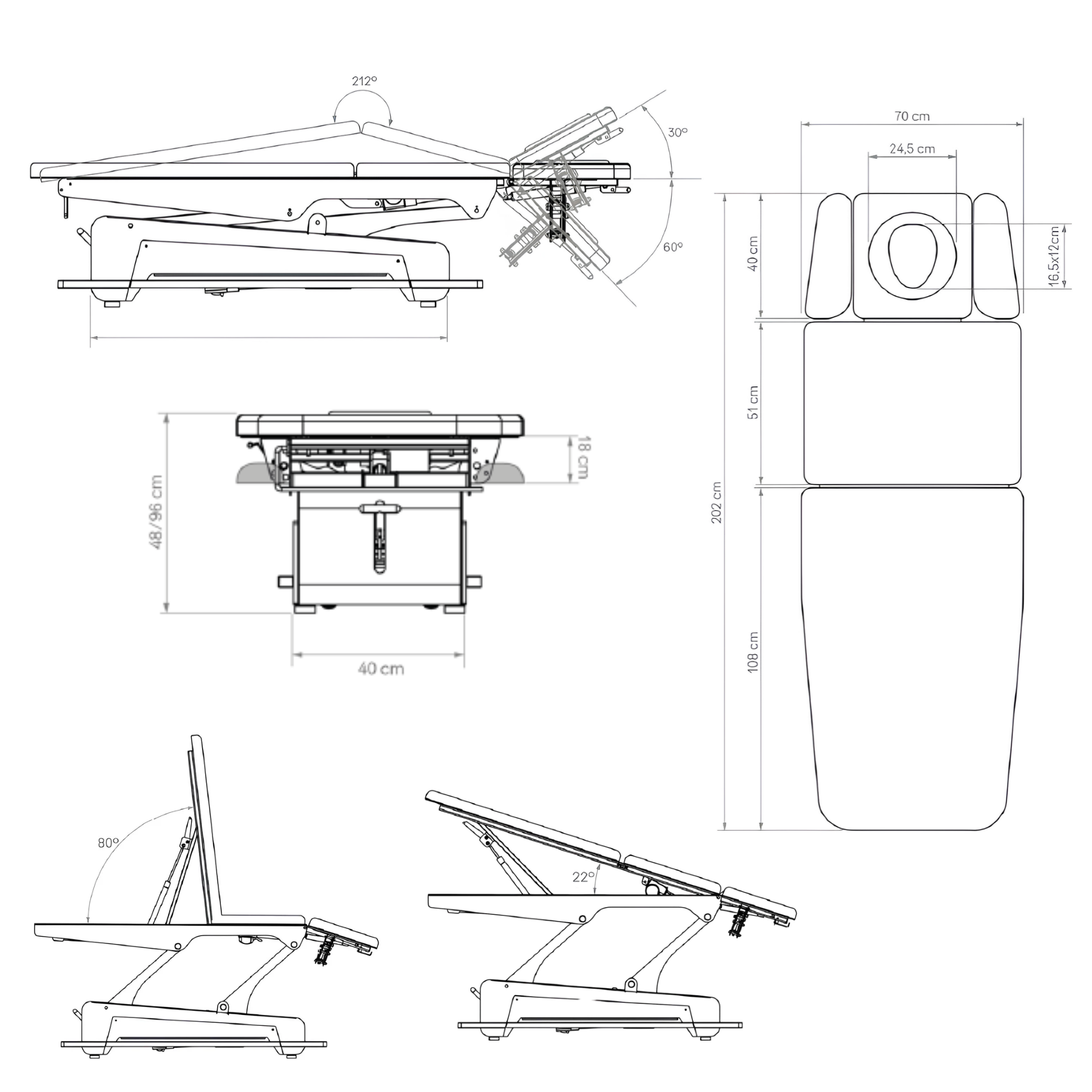

• Dimensions: 202 × 70 cm
• Adjustable height: 48-96 cm
• Weight: 109 kg
• Lifting capacity: 200 kg
• Power supply: 110-240 V, 50/60 Hz
• Motor speed: 2.33 cm/s
• Maximum current: 9 A
• Insulation class: Class I
• Product classification: Class I equipment
• Applied parts: type B
• Moisture resistance: IPX0
• Power cable: 3 m, white
• Height Control: Swop 360° Height Control
• Arm supports: TwinLift, continuously and simultaneously adjustable by means of a gas spring
• Head section: regulation by means of gas spring

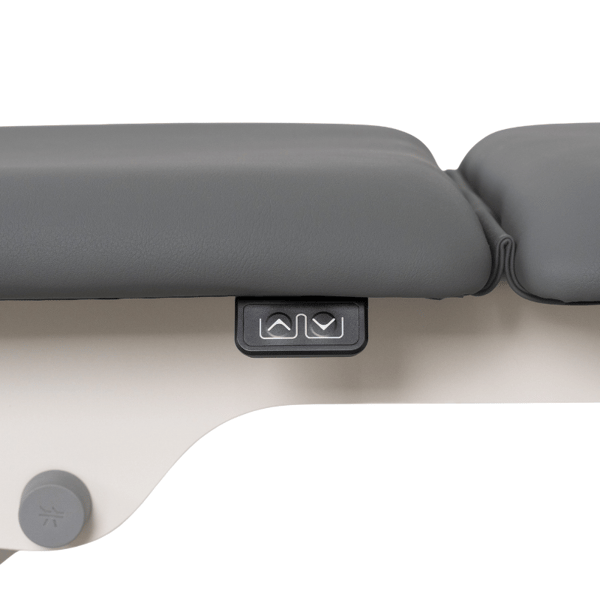

• Central section: electric adjustment with switches on both sides
• Foot section: gas spring adjustment
• Mobility system: 4 integrated 360° rotating wheels under the frame
• Wheel drive: central lever
• Lighting: LED ambient light
• Upholstery thickness: 5 cm
• Upholstery density: 40 kg/m³
• Face cushion: Integrated and seamless Face+, with PUR plug
• Upholstery material: Naggura Skin, PU composite
• Upholstery color: graphite
• Abrasion resistance: over 150,000 cycles
• Upholstery protection: against germs and UV rays
• Fire resistance: BS 7176
