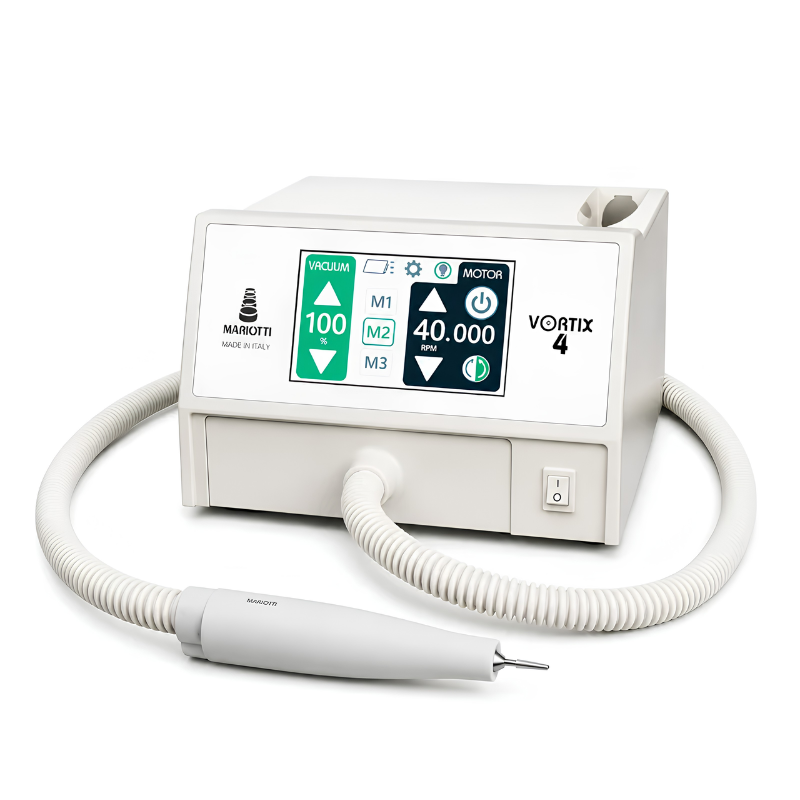

VORTIX 4 Micromotor Suction Device for Podiatry with Touch Screen

The Mariotti VORTIX 4 Suction Micromotor is designed to deliver high performance in podiatry treatments, combining power, precision, and an efficient suction system in a single device. Its new architecture incorporates a 5" color touchscreen, exceptionally quiet operation, and optimized suction that improves cleanliness and visibility during treatment.

In addition, it integrates a brushless micromotor with suction, electronic motor protection and customizable presets, providing a more comfortable, efficient working experience adapted to the needs of each professional.

Strengths

- 5" color touchscreen

- Brushless micromotor with integrated suction.

- More powerful and quieter suction.

- Three customizable configurations.

- Electronic protection of the micromotor.

- Quick and easy maintenance.

Who is it aimed at?

- Podiatry clinics.

- Specialized foot care centers.

- Professionals looking for a micromotor with integrated suction.

- Consultations with intensive use.

- Specialists who prioritize cleanliness during treatment.

Technical specifications.

- Brand : Mariotti.

- Model : VORTIX 4.

- Product type: Micromotor suction device for podiatry.

- Technology : Brushless micromotor.

- Screen : 5" color touchscreen

- Maximum speed: 40,000 rpm.

- Suction system: Integrated.

- Maximum suction flow rate : 450 l/min.

- Maximum vacuum: 100 mbar.

- Maximum sound level: 48 dB(A).

- Presets : 3 customizable configurations.

- Protection : Electronic protection of the micromotor.

- Filter management : Automatic replacement notification.

- Interface : Multilingual.

- Control unit: 23 × 23 × 14.5 cm.

- Unit weight: 2.2 kg.

- Handle : 144 mm in length.

- Handle weight: 140 g.

- Maximum torque: 7.5 Ncm.

- Maximum milling cutter diameter: 20 mm.

- Compatible milling cutters : standard 2.35 mm shank.

- Tube length: 135 cm.

- Power supply : 100-250 Vac / 50-60 Hz.

- Power consumption : 200w
