Chison SonoEye Portable Ultrasound Machine + Lenovo Tab M11 as a GIFT

Fisaude is the exclusive distributor of the ultra-portable Chison SonoEye ultrasound scanner. The lightest and best-performing handheld ultrasound scanner on the market today!
Get it with a Lenovo Tablet M11 11" 4 GB RAM 128 GB Black as a GIFT!

Experience unparalleled definition and lightweight design with our most popular linear ultrasound probe, SonoEye

Capture high-definition images of superficial structures including vascular, nervous, MSK, and small parts with ease using the linear probes. Effortlessly explore detailed images of cardiac function and motion with the phased array probe. Additionally, the convex and microconvex probe is perfect for abdominal, adult and pediatric, OB/GYN exams, offering versatility and exceptional image quality.

Designed to perform point-of-care ultrasound (POCUS) , meaning ultrasound to diagnose or perform procedures directly at the patient's bedside, rather than having to transport the patient to the ultrasound machine, whether in a modern hospital, an ambulance, or a remote village.

Its intuitive interface and efficient workflow make it the best choice.

CHISON SONOEYE PROBES

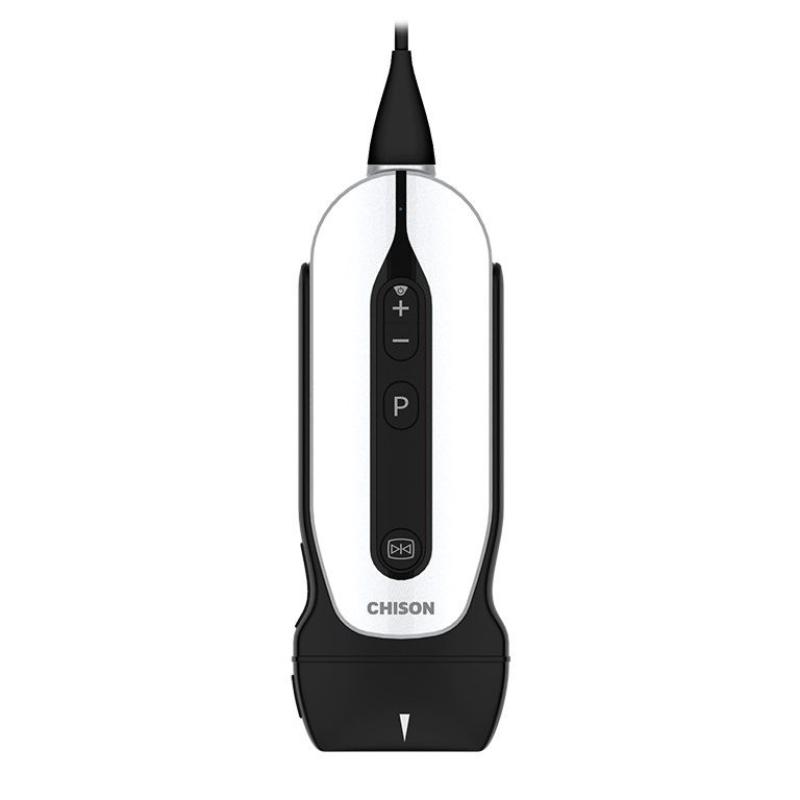

SONOEYE P2 linear probe - 7.5mhz and 40mm

Frequency range and presets for P2 linear probe:

- Frequency range: 7 mhz / 10 mhz / 12 mhz
- Depth: 0.5 to 15 cm
- Preset for Sonoeye P2: (Carotid, Thyroid, MSK, Subcutaneous Fat, Basilic, IV, Breast, Vertebral, Neck Nerve, Upper Ext Nerve, LEV, Lung, Appendix, Superficial MSK, Plantar Fascia, Shoulder, Deep MSK, Phantom)

Target audience for P2 probe:

MSK Physical Therapy, MSK Podiatry, Primary Care, Vascular Access, Plastic Surgery, Pain Management, Etc.

SONOEYE P1 linear probe – 9 MHz and 30mm

Frequency range and presets for P1 linear probe:

- Frequency range: -
- Depth: -
- Preset for Sonoeye P1: (Carotid, Thyroid, MSK, Subcutaneous Fat, Basilic, IV, Breast, Vertebral, Neck Nerve, Upper Ext Nerve, LEV, Lung, Appendix, Superficial MSK, Plantar Fascia, Shoulder, Deep MSK, Phantom)

Target audience for probe P1:

MSK Physical Therapy, MSK Podiatry, Primary Care, Vascular Access, Plastic Surgery, Pain Management, Etc.

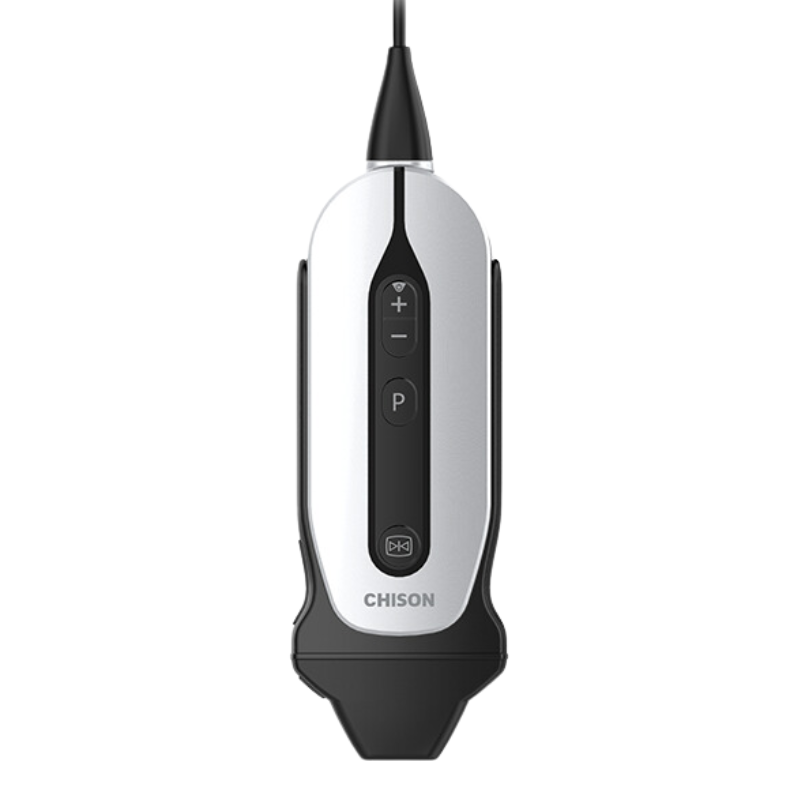

SONOEYE P3 phased array probe – 2.5 MHz

Frequency range and presets for P3 phased array probe

- SONOEYE P3 linear probe: 2.5 mhz

- Frequency range: -
- Depth: -
- Preset for Sonoeye P3: (Cardiac, Pulmonary, Emergency Medicine, Critical Care, Primary Care, etc…)

Target audience for P3 probe:

Primary care, Emergency medicine, Cardiac, Critical care, Others, etc…

SONOEYE P5 convex probe – 3.5 MHz

Frequency range and presets for P5 convex probe:

- Frequency range: 3 mhz / 4 mhz / 5 mhz
- Depth: 4 to 20cm
- Preset for Sonoeye P5: (ABD, Kidney, OB, GYN, Lung, Lumbar Plexus, Bladder, Difficult ABD, Intrapartum, Phamtom)

Target audience for P5 probe:

ABD, OB, GYN, Emergency Medicine, Critical Care, Primary Care, etc.

SONOEYE P6 micro convex probe – 6 MHz

Frequency range and presets for P6 micro convex probe:

- Frequency range: -
- Depth: -
- Preset for Sonoeye P6: (Pediatric, Abdomen, Cardiac, EM, etc.)

Target audience for P6 probe:

Pediatric, Abdomen, Cardiac, EM, etc.

SONOEYE Probe Overview

Strengths:

Type-C cable connection to tablet or smartphone. (check device compatibility with ultrasound probe. IOS and Android)

It is the lightest ultra-portable ultrasound scanner on the market, weighing only 120 grams.

4 programmable buttons on the probe to manage basic settings with just one hand. No need to touch the screen.

Powered on and ready for use in seconds.

Sterilizable and easy to clean. Submersible 1 meter for 30 minutes. (Waterproof IP67 Support immersive disinfection)

You can set up different users for your patients' privacy.

You can open patient records and save their scans and reports for easy re-viewing.

Excellent resolution and image quality.

Automatic image freeze after seconds of non-use for longer battery and probe life

The power source of the probe is the lithium battery of the Tablet, which makes it lighter and prevents the probe from heating up.

Possibility of projecting the tablet image to an external screen through chrone cast

Configurable in 7 languages

Download the CHISON APP at the following link: Chison App

You can see all the operating manual videos here

​

​

SONOEYE SOFTWARE MODES:

- B-mode , or two-dimensional mode or 2D mode: Image on a two-axis plane, in grayscale according to the echogenicity or tenuousness of the tissues.

- Doppler modes:

- Color Doppler (C): On a two-dimensional image, it assigns a color on a predefined scale to the observed flow according to its direction and speed. It allows qualitative evaluation of movement.

- Power color Doppler (CPA): It establishes the presence of movement on an image in a qualitative manner but only uses one color. It does not allow the direction or speed of the flow to be evaluated, but it is capable of detecting flows with a lower speed than the color Doppler mode.

- Power color Doppler (CPD): It establishes the presence of movement on an image in a qualitative manner but only uses one color. It does not allow the direction or speed of the flow to be evaluated, but it is capable of detecting flows with a lower speed than the color Doppler mode.

- Pulsed Doppler (C + PW): Generates a graph that represents the flow velocity at a specific point in the two-dimensional image in relation to time.

- Continuous Doppler (CPA + PW) : It is used to measure much higher velocities than pulsed Doppler.

- M mode or motion mode: It is used to create the image of moving structures and converts them into waves that appear continuously through a vertical axis

- Double screen : B + B mode (2B), or B + C mode, or C + C mode (2C)

SONOEYE SOFTWARE FEATURES:

2D steer, SonoCompare

Auto EF

Auto HR

Auto IMT

HIPPA

Intelligent Doppler

Needle guide software

Professional lung software

PW AutoTrace

QR Scan

Real-Time IMT

Remote Service

SonoBinding

SonoBladder

SonoColor

SonoNeedle

SonoRemote

SuperNeedle

Trapezoid

Invert from right to left and from top to bottom

Manual focus.

Overall gain.

Sectoral profit (TGC)

Freeze frame

AIO (Automatic Image Optimization) function

Manual image optimization : Overall gain, Sector gain, Dynamic range (20 – 290), 2D Graymap, Chroma, 2D steer, Persistence, Line density and Compound

Taking manual measurements

Automatic measurement and calculations by medical specialty (general, vessel, small parts, urology, abdominal, OB, gynecology, pediatrics, cardiac, intrapartum)

Manual and suggested annotations

Midline

Patient File Management

Easy View : To view on one screen all the scans performed on the current patient

Patient reports or reports

Dimensions:

Weight: 120gr. (only the probe)

Measurements: 5 x 10 x 1.5 cm

Basic staff:

1 x Chison SonoEye Portable Ultrasound Probe

1 x Carrying case

1 x Lenovo Tab M11 Tablet

Warranty:

The device has a 2-year warranty.

Technical characteristics of Lenovo Tab M11 Tablet

Brand: Lenovo

Model Name: Tab M11

Memory storage capacity: 128 GB

Operating system: Windows

Color: Multicolor

Installed RAM size: 4 GB

Model year: 2022

Hardware interface: USB 3.1 type A

Wireless communication technology: Bluetooth, Wi-Fi
