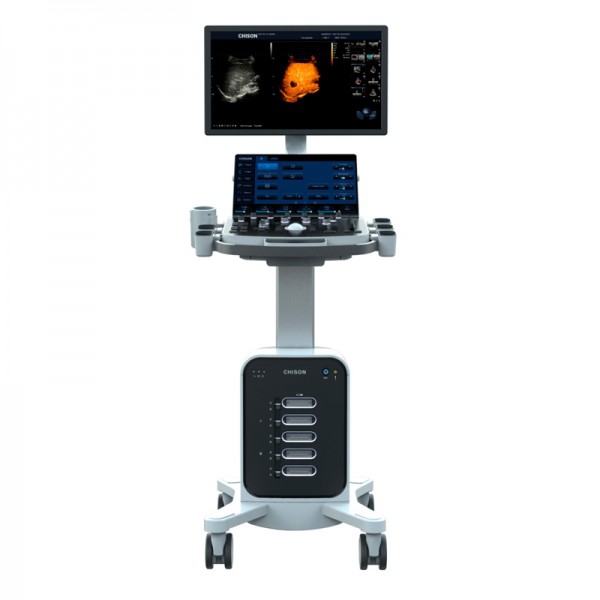

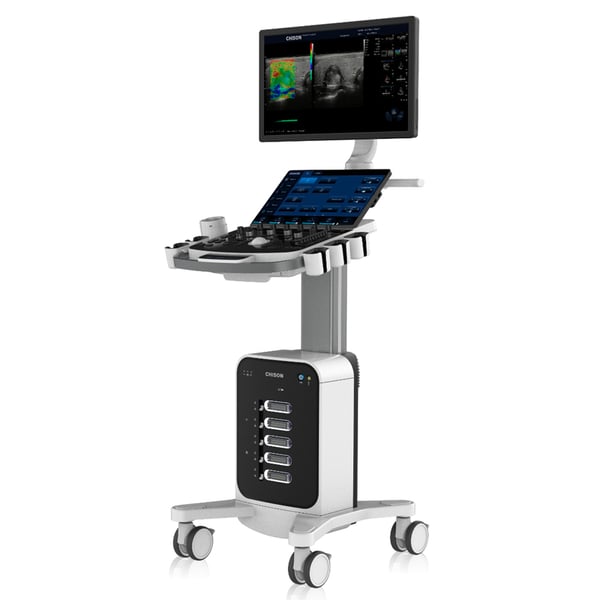

Chison SonoMax Stationary Ultrasound Machine

The CHISON SonoMax ultrasound machine combines style with functionality. With a large 23.8" HD LED display and 5 pinless transducer connectors , SonoMax delivers exceptional visuals with stunning perspective. Its ergonomic design offers flexibility, including 10" height adjustment and a 12° tiltable keyboard , while segment 10 TGC and SonoFIS can provide enhanced safety and image adjustment, clinicians will enjoy a comfortable and efficient imaging experience with SonoMax, improving both patient care and their own well-being.

The perfect blend of elegance and power: Effortless elegance, intuitive workflow, and exceptional performance.

A high-end trolley-mounted ultrasound system that embodies a perfect combination of style and functionality . Designed with unparalleled attention to detail, its sleek, ergonomic design offers exceptional comfort and performance . Sonomax offers the precision and versatility the medical professional needs to provide the best possible patient care. With its advanced features and intuitive interface, Chison Sonomax sets a new standard for high-quality ultrasound systems.

Strengths:

Pioneering MAX++ platform with insight

Clarity – MAX employs advanced digital signal processing algorithms to significantly improve both resolution and penetration

Precision : Fine tuning of transmit waveforms for multi-frequency power distribution and precise control of receive frequency for image uniformity and contrast resolution

Performance : Coherence beamforming technology improves SNR by digitally processing the signal, optimizing the signal path, reducing noise and enhancing the signal

Specifications:

Larger screen for greater clarity

· 5 transducer connectors with elegant lights that combine practicality and modernity.

· Eliminate complexity and achieve greater efficiency in your diagnostic imaging procedures, allowing you to focus on providing the best possible care for your patients.

· Exceptional performance powered by the MAX++ platform. Made for the needs of versatile applications in general medicine, cardiac and women's health.

Applications:

- General medicine

- Abdominal (gynecology and urology)

- Fetal / OB

- small parts

- sine

- Thyroid

- scrotum

- Pediatrics

- MSK_Conventional and Shallow

- Cardiac (adult and pediatric)

- Transvaginally

probes:

Technical characteristics:

- General information

Dimensions and weight:

- Main unit dimensions (approx.): 604mm x 685mm x 1498mm

- Net weight of the main unit (approx.): 58 kg (without probe included)

- User interface

Control Panel:

- Control Panel

- Adjustable height: 25 cm

- Swivel with 90° left and right

- Alphanumeric keyboard

- 10 TGC slides

- Interactive backlit keys

- Integrated speaker

- adjustable volume

Touch panel:

- 15.6-inch touch screen

- customizable layout

- can display the image in real time

- Sensitive to use

Visual display:

- High resolution color LED

- Dimension: standard 23.8 inches

- Resolution: 1920×1080

- Image area: 800×600
Full screen: 1120×840

Warranty:

- 2 years
