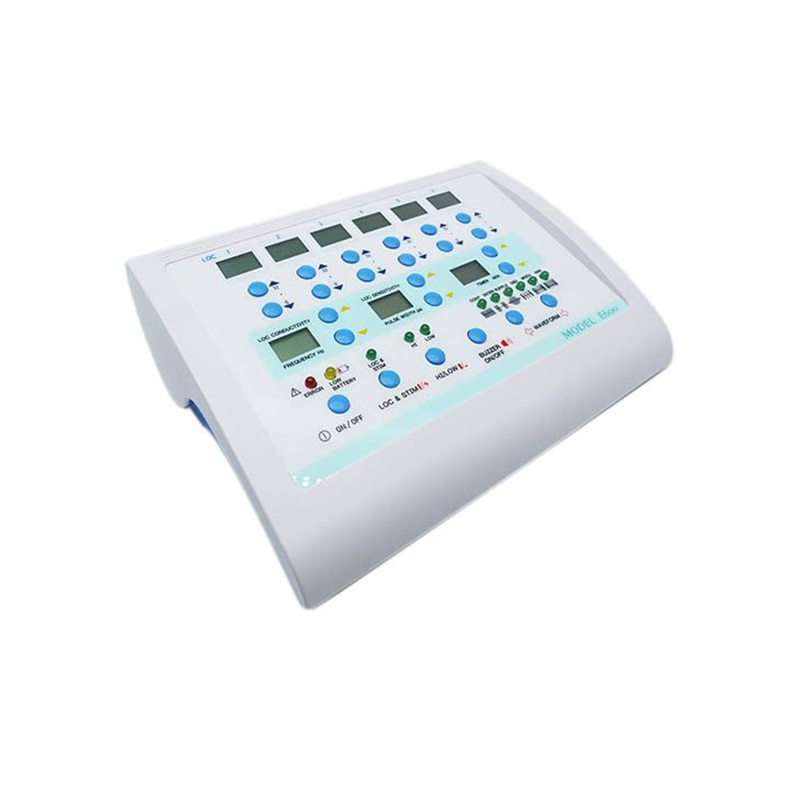

E600 HAN Electrostimulator: Advanced Technology Design

The E600 HAN model has 6 outputs. It is an electroacupuncturist with advanced technology design. Attractive, lightweight, for clinical and professional use.

It has digital displays for all values to show:

- Intensity

- Frequency

- Pulse width

- The time of the stimulation during the operation, as well as the numerical display to show the detection sensitivity during the location of the acupuncture points-

It has acupuncture point detection and stimulation by needles or electrodes. It has 6 different types of waveforms, in which the HAN waveform is also included. The E600 HAN stimulator is one of the most powerful acupuncture electrostimulators on the market.

Technical characteristics:

- The output intensity of the six channels is displayed on a digital display (0.5x0.7 ")

- It has 32 levels for a better adjustment of the output intensity.

- 6 different color output wiring for easy operation, to avoid confusion.

- Three large digital displays show sensitivity, frequency, pulse width, and run time.

- All operational functions are digitally displayed for easy recording and future re-selection and reference.

- Specially designed acupuncture point electrotherapy pen, you can press the probe button for electrotherapy right after your point detection.

- Low battery display, battery change reminder, operation error warning, reset operation and automatic shutdown function, etc.

- Sound on / off, high and low output selection.

- Memory system, when shutdown and restart, all selections are played, which is convenient for the next treatment.

- Output channels: 6

- Volts and current:

- Low 0-5 volts, 0-10 mA (milliamps) (500 W load)

- High 0-20 volts, 0-40 mA (milliamps) (500 W load)

Stimulation mode: 0-32 volts, 0-64 mA (milliamps) (at 500 W load)

- Pulse shape: symmetric waveform

- Asymmetric waveform for HAN mode

- Pulse width: 50 to 400 μS, adjustable

- Pulse frequency: 0.5, 0.7, 1 - 500 Hz adjustable

- Output modes: continuous, intermittent, wavy, dense and sparse, modular, HAN mode

- Timer: 1 to 60 minutes and continuous

- Buzzer on / off button: Turn the buzzer sound on or off

- Power supply: 6 standard 1.5 volt size C batteries

- Device dimensions: 240 x 185 x 70 mm

- LOC: skin impedance monitoring

- LOC conductivity: 0-200

- LOC Sensitivity adjustment 3 levels: L5, L10, L20 with sound on / off function.

Basic endowment:

- Stimulator with Probe

- Connection cable (assorted colors) 6 pcs.

- Connection cable adapter 6 pcs.

- Batteries 6 units.

- Manual
