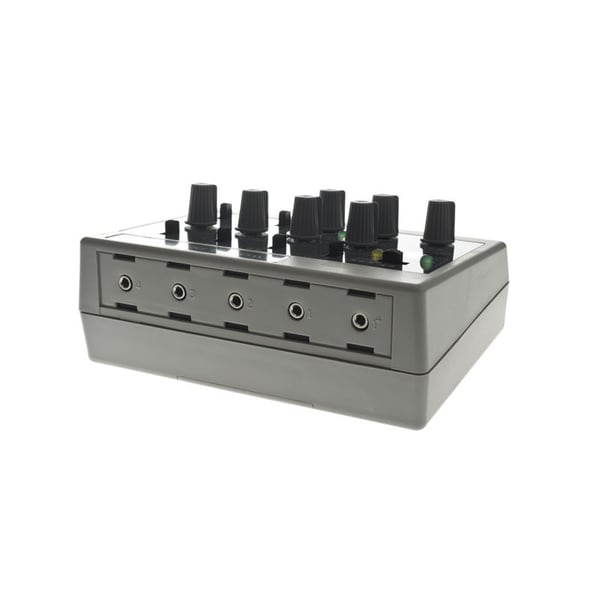

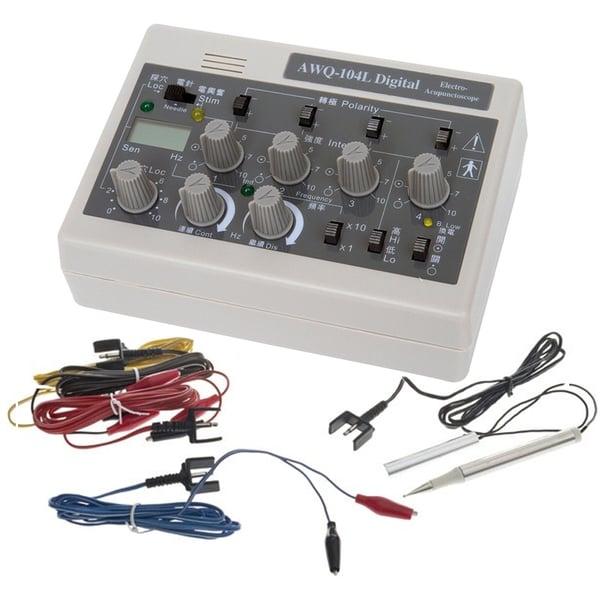

Electro-acupuncture stimulator AWQ-104L + Finder: Equipped with four output channels

High performance and versatility unit, with all accessories, presented in a handy, portable case with 4 outlets

The AWQ-104B model is one of the most powerful units , it has 4 outputs for stimulation and a fifth APD/EE output, which works as a point finder and as an output for stimulation , thus giving the device a total number of 5 channels. of departures

The system is designed to help alleviate chronic, acute, and postoperative pain . The degree of pain relief varies from patient to patient.

In any case, please read this manual carefully before operating the unit, so that the patient receives maximum benefit and pain relief.

Applications

- Detection of acupuncture points.

- Stimulation of acupuncture points. Technical specifications:

- (500 ohm load)

- Frequency x1: 1 to 100 hz.

- Frequency x10: 10 to 1000 hz.

- Output current:
- 0 – 18 ma rms (low). (500 ohm load).
- 0 – 40 ma rms (high). (500 ohm load).

- Outputs: 4 independent.

- Pulse width: 320 µs. to x1.32 µs. to x10.

- Point detection: Produces sound and light.

- Power: 9v battery.

- Dimensions: 15.5 x 10.5 x 6 cm.

- Weight: 330g. only unity.

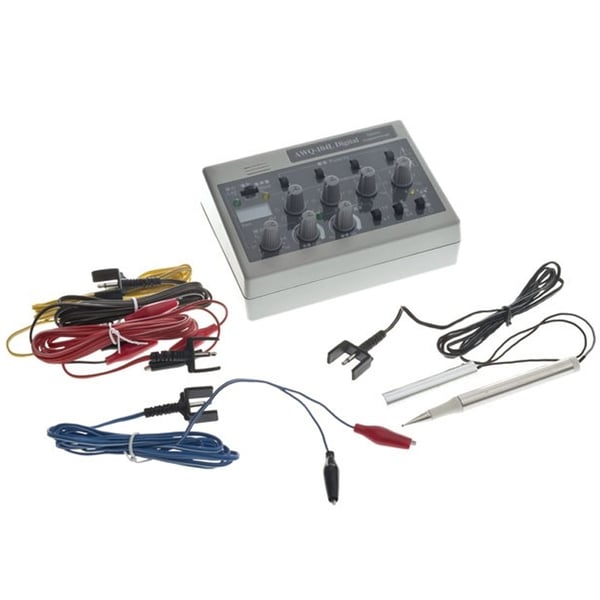

Accessories included

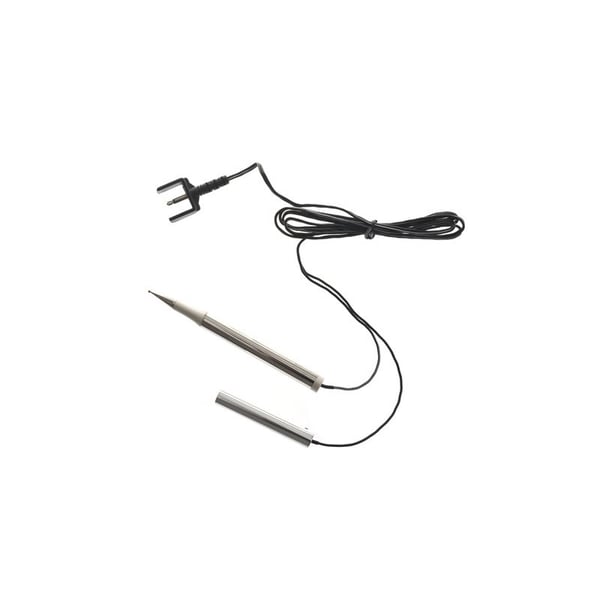

- Pen-shaped search and treatment probe with manual ground pole.

- 4 improved connection threads.

- 9 volt battery.

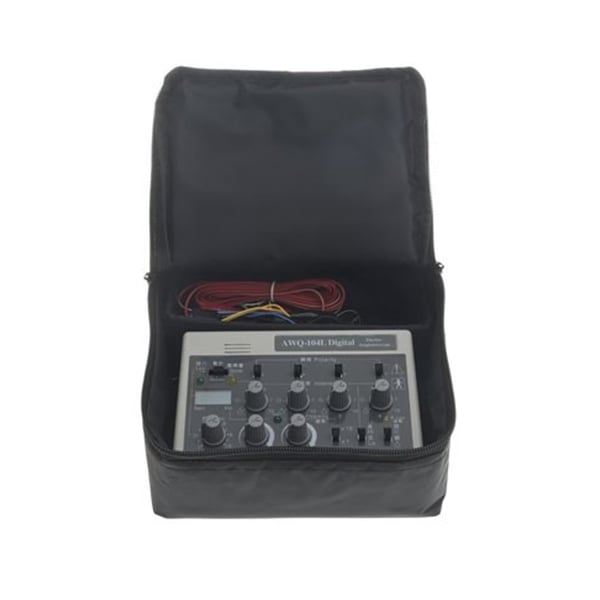

- Cloth briefcase.

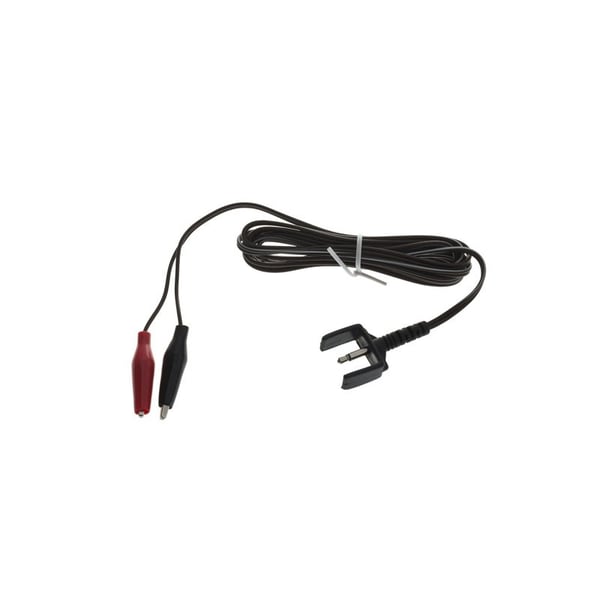

- 3 output cables for needles with built-in crocodile clip.

- Point detector.

- User manual in Spanish

Warranty:

- Items from this manufacturer (with the exception of accessories) have a 1-year warranty

- The accessories that come included with the products or that can be purchased separately, such as cables, applicators, light bulbs, batteries, power adapters, heads, etc. are not covered by the guarantee.

- Consumable materials such as electrodes, conductive gel, etc. are not guaranteed

* The guarantees will be applied as long as the device and its accessories are not damaged by misuse or negligence by the client: blows, broken displays, overvoltage, etc.
