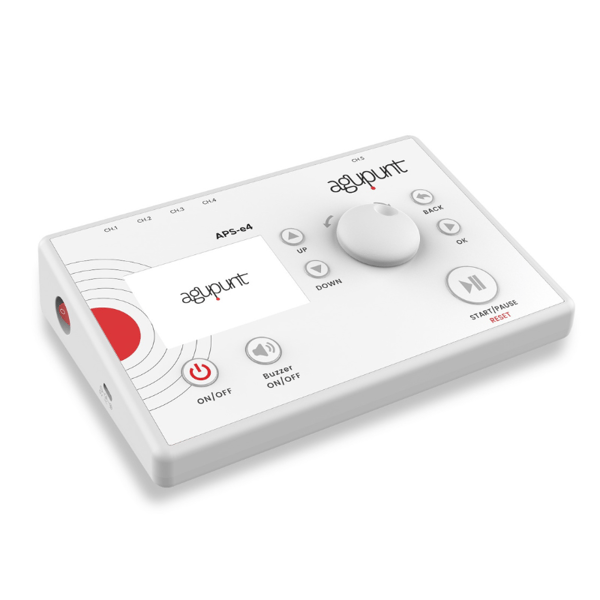

Invasive physiotherapy APS e4: percutaneous electrolysis, neuromodulation, dry needling, microcurrents, TENS and Pointer

The new APS e4 device has been redesigned and improved in collaboration with leading professionals in invasive electrotherapy treatments . It includes the new 8-output octopus-type cable. This portable, multi-option invasive electrotherapy device offers three current types: galvanic (direct current), biphasic (symmetrical/asymmetrical), and monophasic (symmetrical). Its treatments are 100% customizable , allowing for precise control of all treatment parameters and adaptation to each patient's specific needs.

Furthermore, it is the only invasive physiotherapy equipment with a health license that allows it to work with a battery or connected to the electrical grid.

Current type

- Galvanic (continuous)

- Biphasic (symmetrical)

- Biphasic (asymmetric)

- Single-phase (symmetrical)

Type of treatments

Parameters 100% modifiable during treatment to adapt them to each patient

- Dry needling : Application to myofascial trigger points. Preset programs and
adjustable high and low frequency.

- Neuromodulation : Stimulation of dermatomes, myotomes and/or sclerotomes related to the area of ​​pain. Predetermined and modifiable program.

- TENS : Neurostimulation-induced analgesia for the relief or blocking of chronic or acute pain.

- Microcurrents : Application at a subsensory level with multiple benefits for people with hypersensitivity.

- Pointer : Checking and stimulating the target tissue using a single needle.

- IPEN (electrolysis) : Indicated for tendinopathies and muscle tissue. It produces electrochemical changes in the tissue that stimulate regenerative responses.

Technical specifications:

- Rechargeable battery with USB Type-C charger (universal)

- Operation of the equipment connected to the mains or via battery.

- Outputs 1-4 of symmetrical monophasic, symmetrical biphasic and asymmetrical biphasic current for dry needling, neuromodulation, TENS and microcurrent treatments.

- Output 5 for galvanic current (for electrolysis) and symmetrical bi-phase current (for pointer).

- 3.5-inch TFT digital display.

- Easy and comfortable to carry, with dimensions of 220mm x 140mm and a weight of 225g.

- Acoustic sounds (start and end of treatment or in case of equipment error)

- Ability to work in milliamperes (mA) or microamperes (A) in electrolysis and microcurrent programs.

- Equipment parameters:

• Power: from 0.01 to 20.0 mA
• Frequency: 1 to 150 Hz
• Pulse: 10 to 700 ms
• Stage time: from 1 to 60 seconds
• Treatment time: from 1 sec to 60 min
• Maximum voltage: 19V.

VIDEO DEMO USER MANUAL

Base staffing:

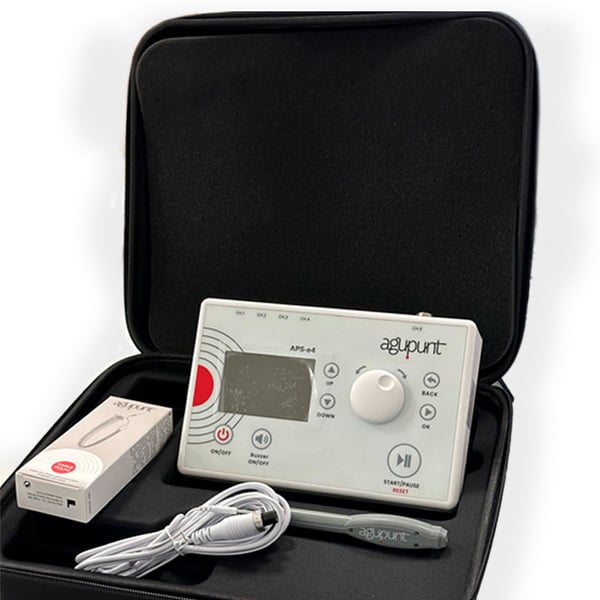

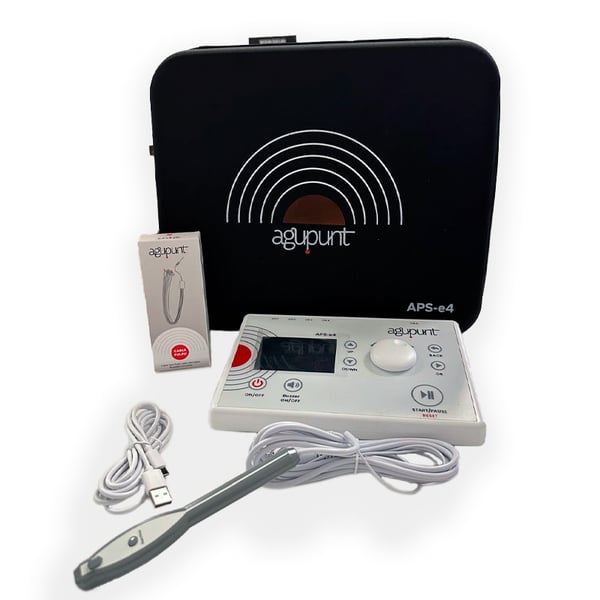

- Carrying case with APSe4

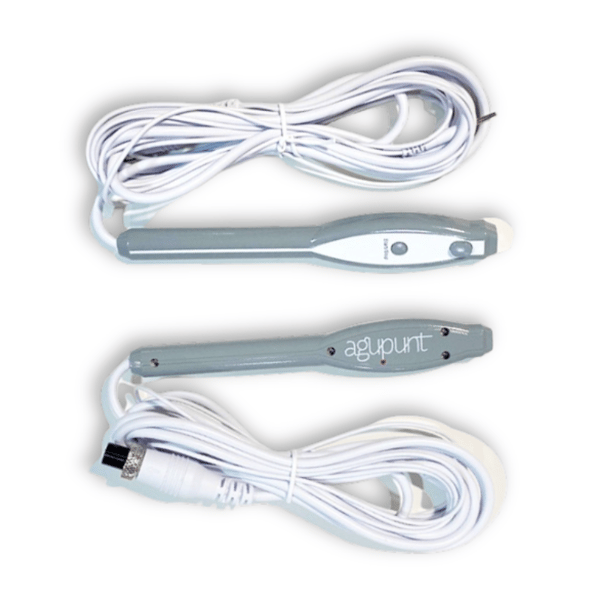

- Handle with on/off button

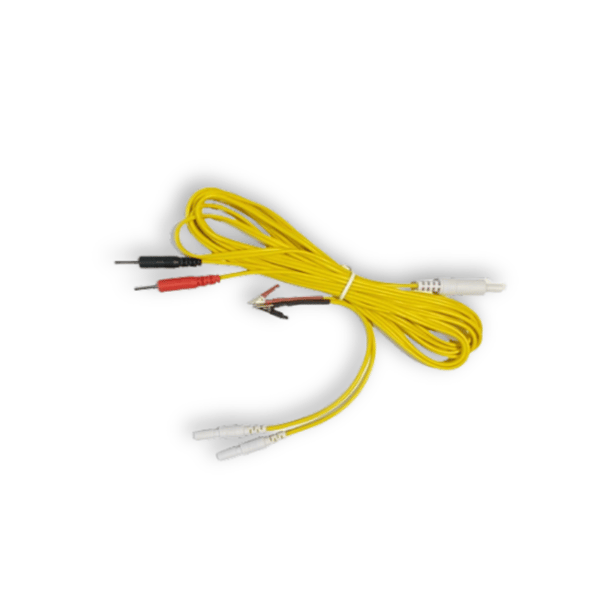

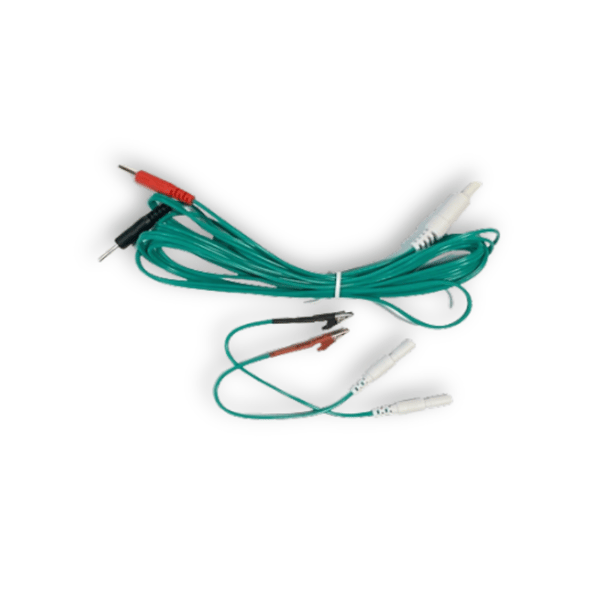

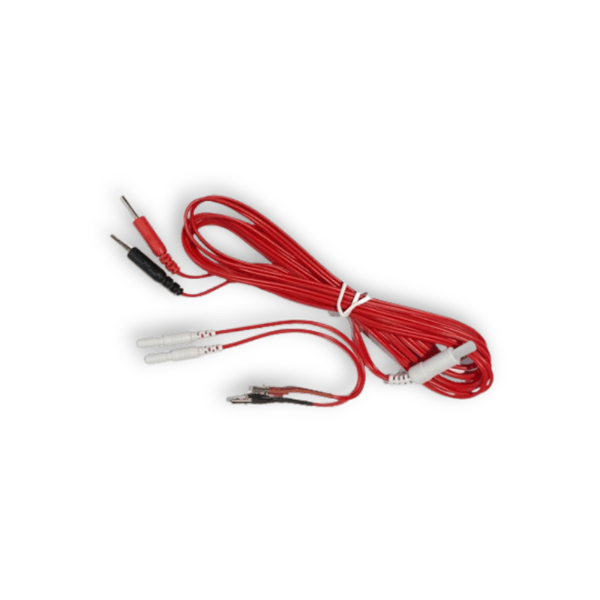

- 4 cables for channels 1-4

- Charging cable designed for medical devices

- Pointer for the handle

- 4 electrodes

- 25 APS Regular needles 0.32x40 mm

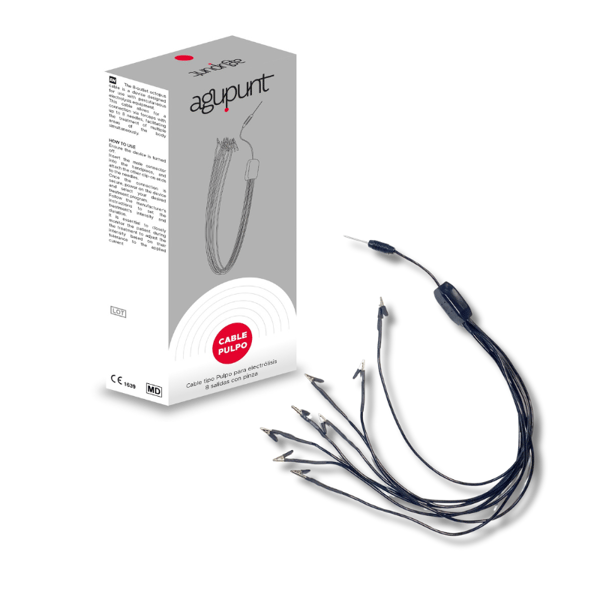

- Octopus-type cable with 8 outputs

Warranty:

The device has a 2-year warranty .

- The handle has a 1 year warranty
