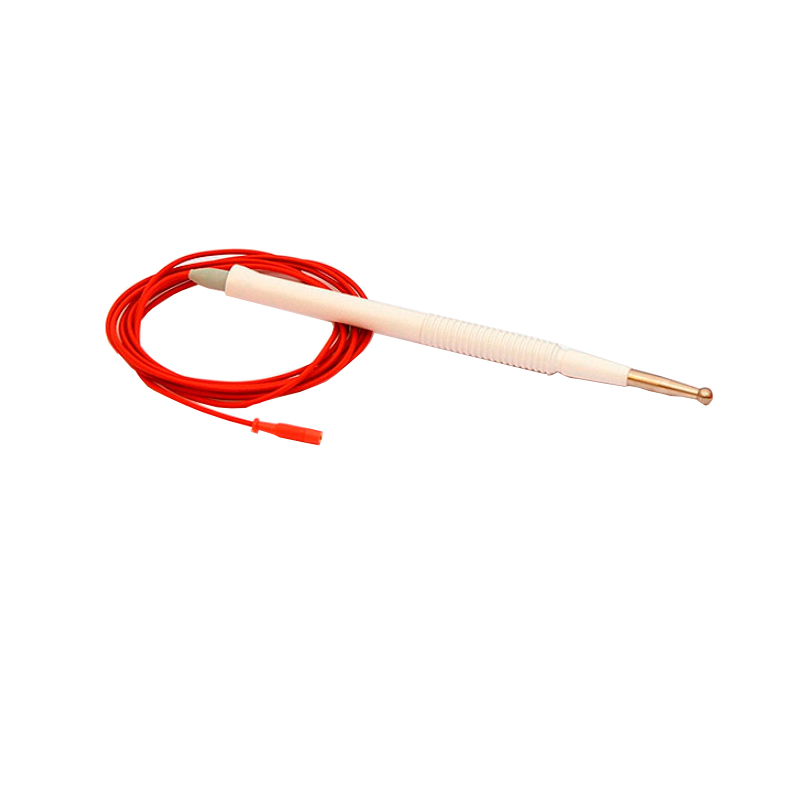

How to use the Globus engine Buscapuntos pencil?

1. Connect a cable to the electro-stimulator.

2. Connect the black connector (-) to a large electrode 5cm x 9cm.

3. Connect the electrode to the muscle band concerned as shown in the manual images with the negative symbol (-).

4. Connect the red connector pen.

5. Choose the program "pencil search points", if it is not present use the warm-up phase of any program.

6. To make the pencil slide better on the skin, it is recommended to use the conductive gel.

7. Raise the intensity of the channel connected to the pencil: 4-6 mA for upper limbs and trunk, 5-9 mA for lower limbs.

8. Press lightly the point of the pencil in the area of the presumed location of the motor points. Refer to the positive red electrodes (+) of the manual images.

9. Slide the pencil over the skin, the motor point is located when a noticeable increase in muscle contraction is noticed.

10. Point to the localized point and place an electrode in the pencil place.

11. Start the predefined treatment.

Warranty

- Accessories that are not fungible have a 6-month warranty

- Expendable accessories from this supplier, such as electrodes, conductive gel, etc. have no guarantee

* The guarantees will be applied as long as the accessory (s) are not damaged by the customer's misuse or negligence: bumps, display breaks, overvoltage, etc.
