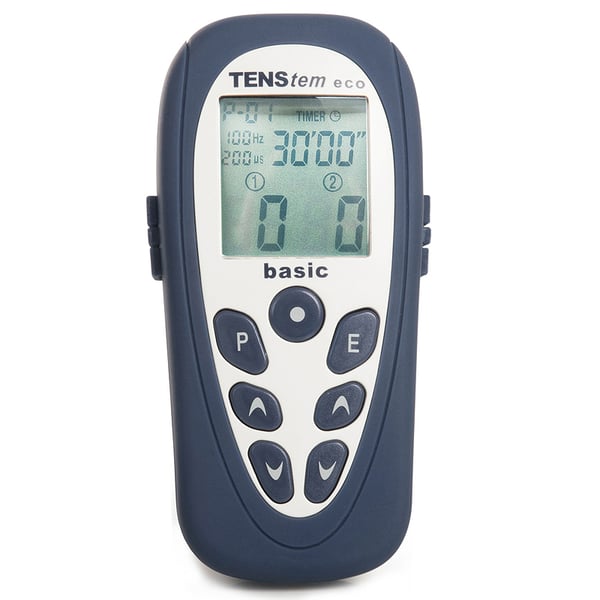

Tens Eco Basic: 2-channel electrostimulator with 16 programs (TENS + EMS + Iontophoresis)
Out of stock. Available in 27-29 days approx.
* The shipping costs are calculated in the shopping basket
Reference: SC104041
Description
2-channel stimulator with 12 preset constant current programs and 4 programs with configurable parameters (intensity, time and frequency)
It has a manual with instructions for positioning the electrodes.
The Tens Eco Basic electrostimulator is a portable, compact and easy-to-use 2-channel digital unit equipped with 16 programs: 13 TENS, 2 EMS and 1 iontophoresis with 3 free memories and powered by 4 AAA batteries.
The Tens Eco Basic electrostimulator has an LCD screen , 3 freely configurable programs and the possibility of modifying parameters.
Strengths of the Tens Eco Basic Electrostimulator:
- 16 Programs (12 pre-set and 4 adjustable).
- Large screen, showing: selected program, therapy time, intensity (separated by channel), frequency and pulse duration.
- Automatic shutdown after 2 min without use.
- Easy to use.
- Battery level control.
- Electrode recognition: the intensity is reduced to 0 if the electrodes are incorrectly connected.
- The selected program can be locked.
- Storage and reselection of working parameters.
List of programs:
- Program 1 - Gate control 100 Hz: Frequency 100Hz - Pulse duration 200 us - Therapy time 30 min (10 to 90 min)
- Program 2 - Control gate 80 Hz: Frequency 80Hz - Pulse duration 150 us - Therapy time 30 min (10 to 90 min)
- Program 3 - Low frequency. Endorphinic: Frequency 2 Hz - Pulse duration 250 us - Therapy time 30 min (10 to 90 min)
- Program 4 - Low frequency Gate Control 100 Hz.
Channel 1 + Endorphins channel 2. Pathology: Joint pain
Channel 1: Gate control - Frequency 100Hz - Pulse duration 200 us - Therapy time 30 min (10 to 90 min)
Channel 2: Low frequency - Frequency 2 Hz - Pulse duration 200 us - Therapy time 30 min (10 to 90 min)
- Program 5- Sequential TENS. Pathology: Especially for low back pain and lumbosciatica
Phase 1: Frequency 100Hz - Pulse duration 150 us - Therapy time 10 min
Phase 2: Frequency 2Hz - Pulse duration 200 us - Therapy time 20 min
- Program 6- TENS stimulation by Professor Han Pathology: Joint pain
Phase 1: Frequency 100Hz - Pulse duration 150 us - Duration 3 sg
Phase 2: Frequency 2Hz - Pulse duration 200 us - Duration 3 sg
- Program 7- BURST type endorphin stimulation
Frequency 100Hz - Pulse duration 150 us - Burst modulation 0.5 s (0.25 + 0.25) - Therapy time 30 min (10 to 90 min)
- Program 8- Frequency modulation stimulation
Minimum Frequency 2 Hz (pulse width 200 us) - Maximum frequency 80 Hz (pulse width 100 us) - Modulation duration 7.5 s - Therapy time 30 min (10 to 90 min)
- Program 9- Muscle strengthening. Pathology: prevention of muscle atrophy .
Frequency 50 Hz - Pulse duration 250 us - Modulation intensity 2 sec up - 5 sec work - 1 sec down - 12 pause - Therapy time 30 min (10 to 90 min)
- Program 10- Analgesic massage through control door
Frequency 80Hz - Pulse duration 150 us - Modulation intensity 1 s up - 1 s down - Therapy time 30 min (10 to 90 min)
- Program 11 - Rapid analgesic massage. Pathologies: heavy limbs, venous return problems and joint pain.
Frequency 80Hz - Pulse duration 150 us - Modulation intensity 0.25 s up - 0.25 s down - Therapy time 30 min (10 to 90 min)
- Program 12- Ultrahigh frequency TENS
Frequency 100Hz - Pulse duration 75 us - Modulation 4 pulses in a group. Pulse width 75 us, period duration 275 us
Free configuration programs:
- Program 13- Gate Control: Frequency 1-120 Hz - Pulse width 75-300 us - Therapy time (10 to 90 min)
- Program 14- Muscle Strengthening . Pathology: prevention of muscle atrophy and muscle development.
Frequency 1-120 Hz - Pulse width 75-300 us - Therapy time (10 to 90 min) - Modulation intensity 2 sg up - 5 sg work -1 sg down -12 pause
- Program 15 - Gate Control. With massage character. Frequency 1-120 Hz - Pulse width 75-300 us - Therapy time (10 to 90 min)
- Program 16 - Iontophoresis. For the control of sweating in hands and feet. Both channels work with the same frequency and pulse width. The current is monophasic, we do not recommend using it for more than 20 minutes. Please check the skin under the electrodes after stimulation. Frequency 1-120 Hz - Pulse width 75-300 us - Therapy time (20 min)
Basic staff:
- 1 Tenstem Eco Basic Electrostimulator
- 1 Pair of cables for electrostimulation
- Adhesive electrodes
- 4 Batteries
- 1 User manual.
Warranty:
- The devices from this supplier have a warranty of between 1 and 3 years (check each device)
- Accessories that come with the device such as batteries, power adapters, heads, etc. have a 6-month warranty.
- Cables from this supplier have no warranty.
- Consumable materials used for this type of device such as electrodes, conductive gel, etc. are not guaranteed.
* Warranties will be applied as long as the device and its accessories are not damaged by misuse or negligence on the part of the customer: knocks, broken displays, power surges, etc.
